Description :
ATEN CL6708MW Single Rail 8-Port DVI FHD LCD KVM Switch with Standard Rack Mount Kit-TAA Compliant
The CL6708MW brings additional versatility to ATEN's line of LCD KVM Switches with its native DVI compatibility. Building on ATEN's renowned, space-saving approach to KVM switches - which integrates an LCD panel, full keyboard, and touchpad into a streamlined, 1U housing - the CL6708MW is a highly-scalable LCD KVM switch which features the ability to control up to 64 computers by cascading 8 additional CS1768 8-port KVM switches.
Featuring an integrated 17.3" LED-backlit LCD panel capable of full HD 1080p video - greater clarity than typical analog interfaces - the CL6708MW incorporates the YUV video format for greater compatibility with high-definition signals (e.g. NVR sources). Similarly, the CL6708MW is High-Bandwidth Digital Content Protection (HDCP) compatible, making it well-suited for use with content-protected media in corporate, educational, and commercial settings.
To further enhance usability, ATEN's LED illumination light is included to ensure keyboard and touchpad visibility in low-light conditions.
- Supports YUV video format for greater compatibility
- Firmware upgradable
- Broadcast mode - allows you to send commands from the console to all computers to perform operations simultaneously
- Computer selection via front panel pushbuttons, hotkeys, and multilingual on-screen display (OSD)
- KVM port extendable via one-level cascade (up to 8 additional CS1768 8-port KVM switches)
- Exclusive LED illumination light - designed by ATEN to illuminate the keyboard and touchpad to allow visibility in low-light conditions

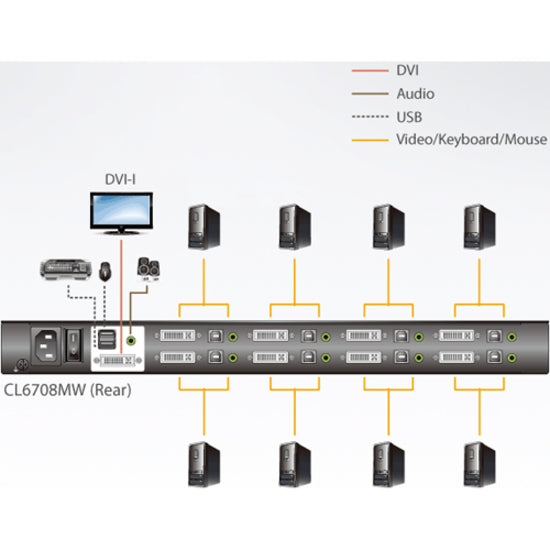

- Supports an external console with DVI video port
- Controls eight Single Link DVI computers
- Single rail, sliding housing with top and bottom clearance for smooth operation in a 1U rack
- Integrated KVM with a 17.3" Widescreen DVI Full HD LCD monitor
Product Type: LCD Rack Console
Environmentally Friendly: Yes
Product Material: Plastic
Country Of Origin: Taiwan
Brand Name: ATEN
Manufacturer: ATEN Technology Inc
Product Model: CL6708MW
Product Name: CL6708MW Single Rail 8-Port DVI FHD LCD KVM Switch with Standard Rack Mount Kit
Manufacturer Part Number: CL6708MW
Manufacturer Website Address: http://www.aten.com/us/en/
Platform Supported: Sun
Package Contents:
- CL6708MW Single Rail 8-Port DVI FHD LCD KVM Switch with Standard Rack Mount Kit
- 2 x KVM Cable (DVI-D, USB, Audio; 1.8m/6ft)
- 1 x Power Cord
- 1 x Firmware Upgrade Cable
- 1 x User Instructions
Weight (Approximate): 28 lb
Specifications :
General Information
Manufacturer | ATEN Technology, Inc |
---|---|
Manufacturer Part Number | CL6708MW |
Manufacturer Website Address | http://www.aten.com/us/en/ |
Brand Name | ATEN |
Product Model | CL6708MW |
Product Name | CL6708MW Single Rail 8-Port DVI FHD LCD KVM Switch with Standard Rack Mount Kit |
Product Type | LCD Rack Console |
UPC | 0672792006845 |
Screen Size | 17.3" |
---|---|
Display Screen Type | LED |
Screen Mode | Full HD |
Screen Resolution | 1920 x 1080 |
Height | 1.7" |
---|---|
Width | 18.9" |
Depth | 27.1" |
Weight (Approximate) | 28 lb |
Package Contents |
|
---|---|
Environmentally Friendly | Yes |
