Tripp Lite

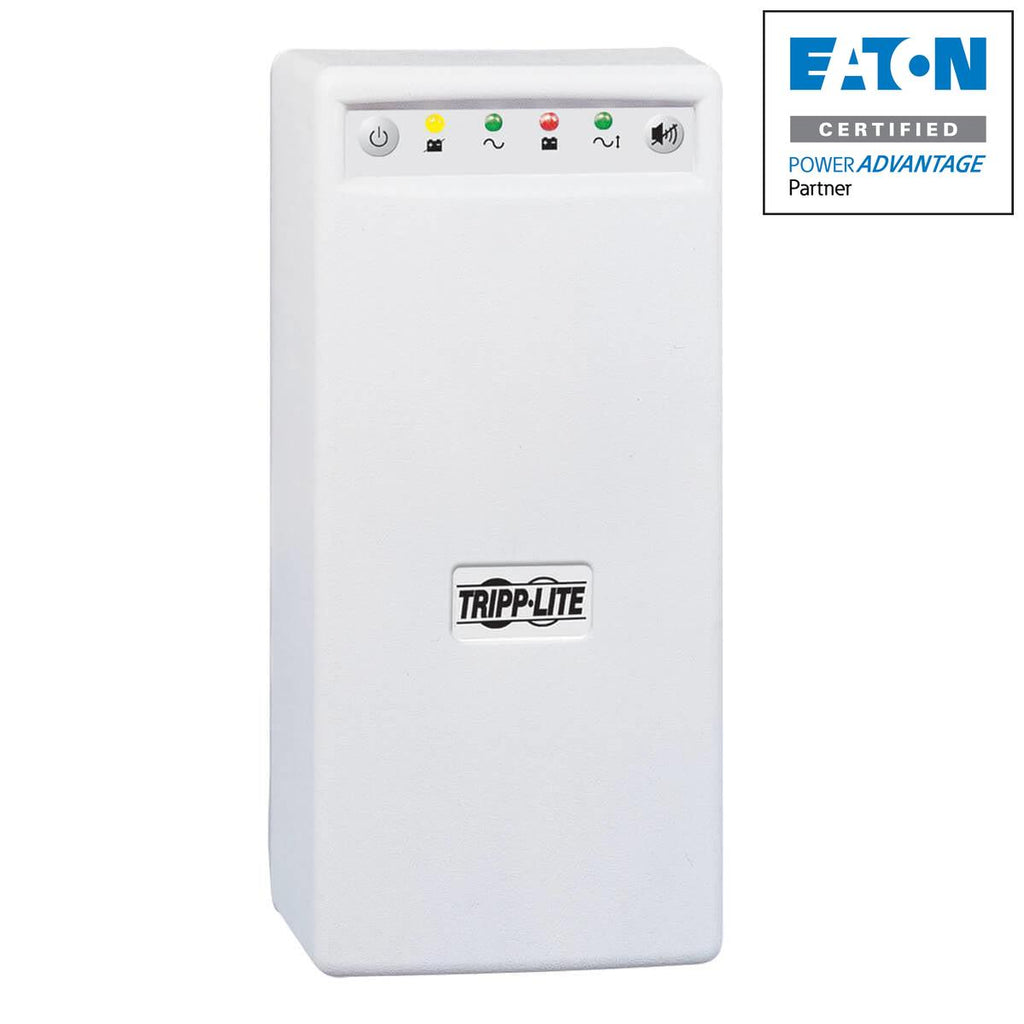

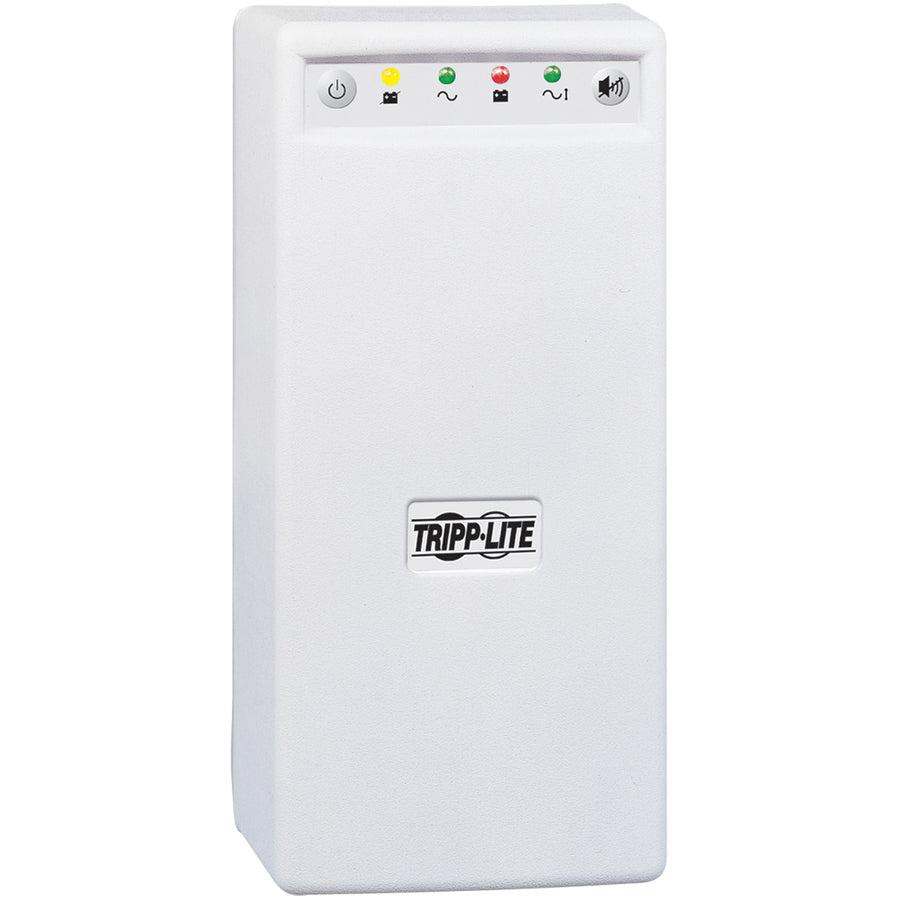

Tripp Lite Omnix350Hg Omnismart 230V 350Va 225W Ce/Iec 60601-1 Medical Grade Line-Interactive Ups With Built-In Isolation Transformer

SKU: OMNIX350HG

Regular price $472.71
Regular price Sale price $472.71
Sale Sold out
Shipping calculated at checkout.
          Description
          Que. & Ans.
          Reviews

          Description :

          OmniSmart 230V 350VA 225W CE/IEC 60601-1 Medical Grade Line-Interactive UPS with Built-In Isolation Transformer

          Tripp Lite OMNIX350HG OmniSmart 230V 350VA 225W CE/IEC 60601-1 Medical Grade Line-Interactive UPS with Built-In Isolation Transformer. UPS topology: Line-Interactive, Output power capacity: 0.35 kVA, Output power: 225 W. AC outlet types: C13 coupler, Power plug: C14 coupler, AC outlets quantity: 6 AC outlet(s). Typical backup time at full load: 15.5 min, Typical backup time at half load: 37 min. Form factor: Tower, Product colour: Black. Width: 130.8 mm, Depth: 188 mm, Height: 269.2 mm

          Tripp Lite's OMNIX350HG offers medical-grade UPS protection with built-in line interactive voltage regulation. IEC320 plug & outlets, plus built-in isolation transformer with Faraday shield offers full isolation and removes common mode noise. Tested to CE/IEC 60601-1 as medical electrical equipment. 350VA power handling capacity supports computers, inter-networking equipment and other critical loads during commercial power failures. Line interactive voltage regulation corrects brownouts as low as 159V back to normal 230V levels, saving battery reserves for use only during complete power failures. Includes, 2 line phone surge suppression and built-in USB communications port.

          Application Usage

          This UPS contains a lead acid battery designed to be connected continuously to an AC power source, except during brief power outages. It is not intended for frequent charge/discharge cycles, such as mobile cart applications where the UPS is often disconnected from the power source. Using the OMNIX350HG in this type of application will void the battery warranty.

          Ideal UPS protection for applications in medical patient-care areas where CE/ IEC 60601-1 electrical medical equipment is required
          Line-interactive voltage regulation corrects brownouts as low as 159V without using battery power
          IEC320 plug and outlets offer added degree of safety and reliability to input/output connections
          Full line isolation prevents shock potential and operational problems in sensitive electronic equipment
          Resistant to electrostatic discharge
          Supports loads up to 350VA/225 watts
          37 minutes half load runtime (with 175VA load), 15.5 minutes full load runtime (with 350VA load)
          6 protected outlets; 6-inch dongle with IEC C14 inlet
          C14 inlet accepts user-supplied AC power cord with grounded country-specific plug
          1-USB port for monitoring interface
          Complete surge protection, line isolation and EMI/RFI noise filtering
          2 phone line surge suppression for modems, fax machines and other phone accessories
          4 diagnostic LEDs indicate AC present, on battery, voltage correction & battery low/replace
          Battery replacement door and back panel equipotential connection (grounding lug)
          Ground Potential Equalization Connector: POAG-S6/20
