Tripp Lite

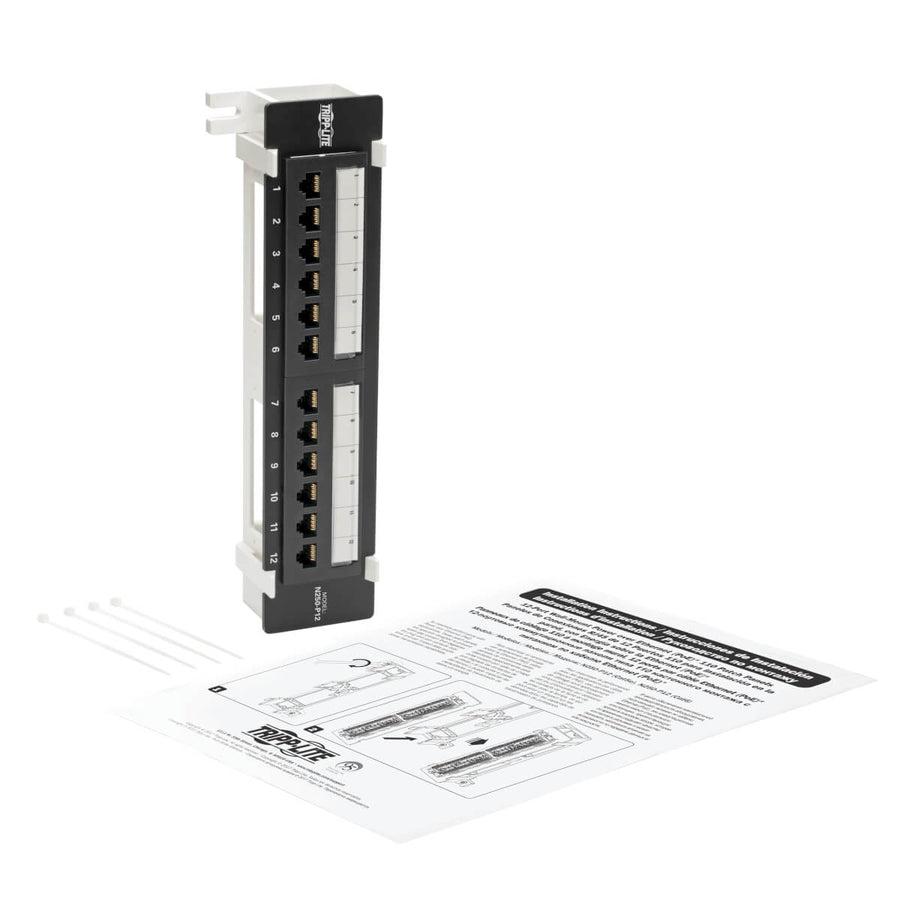

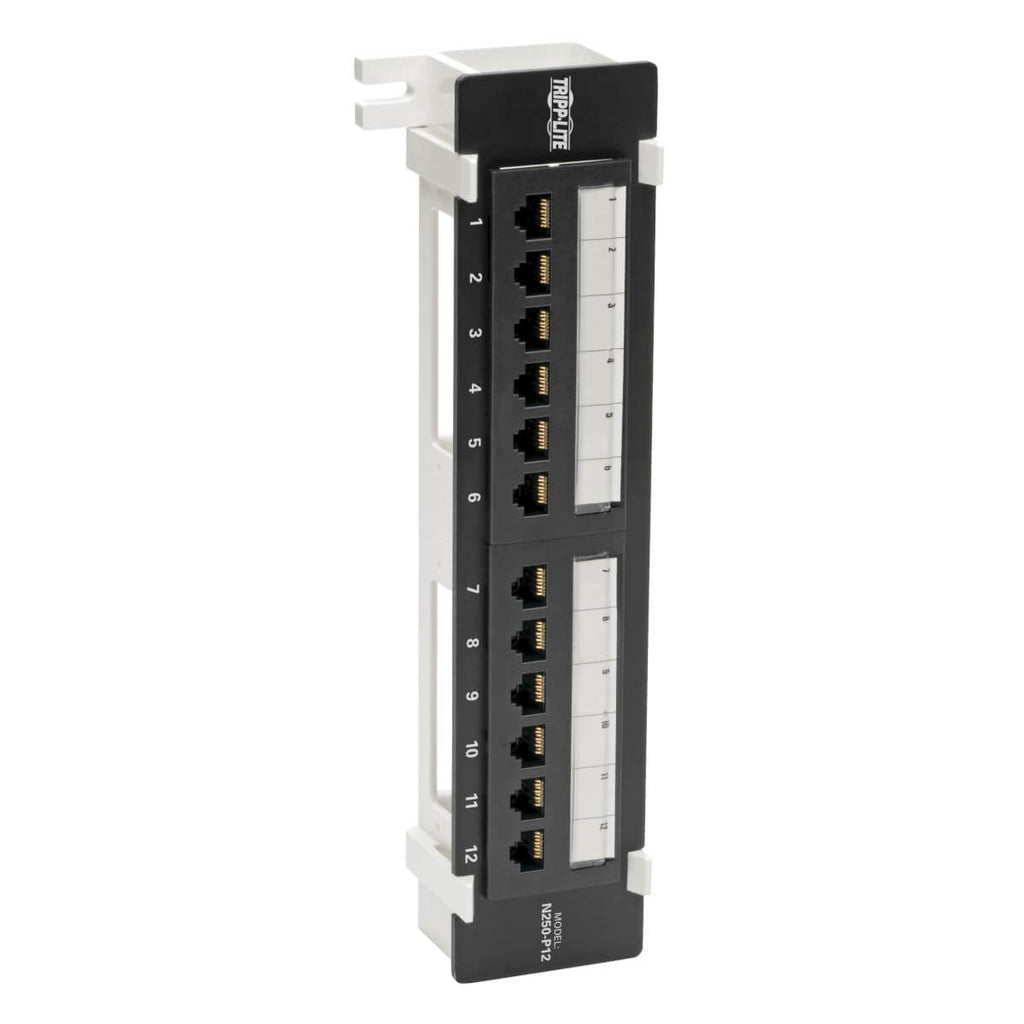

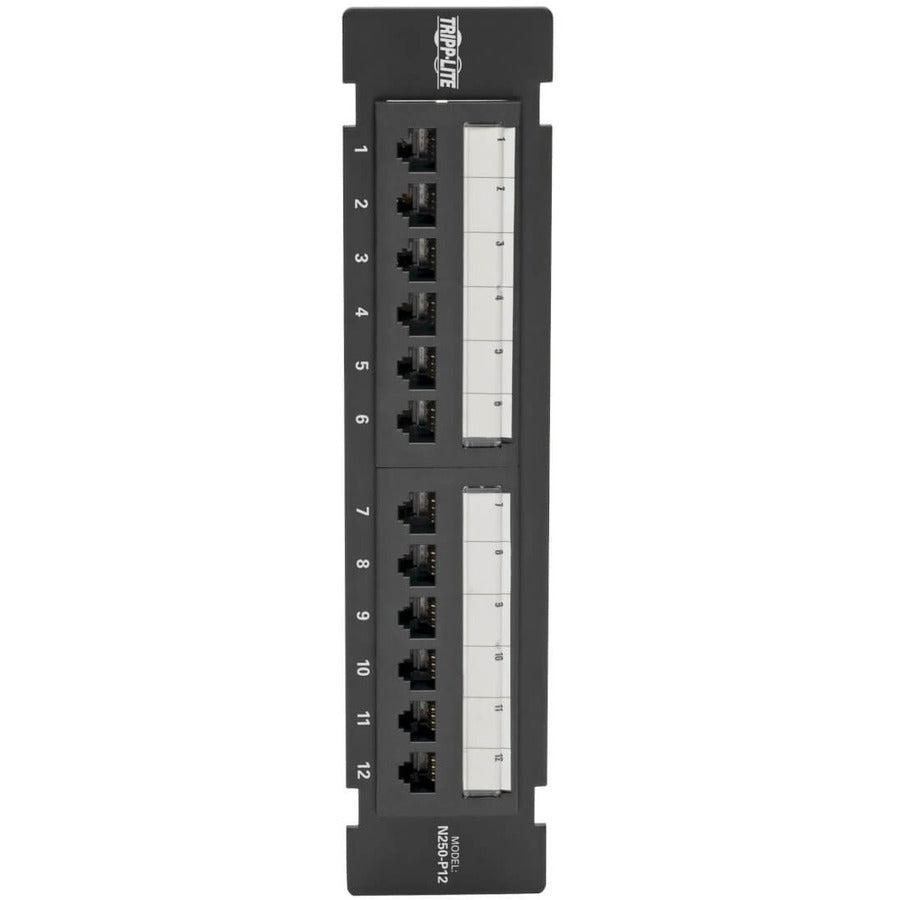

Tripp Lite N250-P12 Cat6 Wall-Mount 12-Port Patch Panel - Poe+ Compliant, 110/Krone, 568A/B, Rj45 Ethernet, Taa

SKU: N250-P12

Regular price $41.39
Regular price Sale price $41.39
Sale Sold out
Shipping calculated at checkout.
          Que. & Ans.

          Description :

          Cat6 Wall-Mount 12-Port Patch Panel - PoE Compliant, 110/Krone, 568A/B, RJ45 Ethernet, TAA

          Tripp Lite N250-P12 Cat6 Wall-Mount 12-Port Patch Panel - PoE+ Compliant, 110/Krone, 568A/B, RJ45 Ethernet, TAA. Connector(s): RJ-45, Cable types supported: Cat5,Cat5e,Cat6. Product colour: Black. Input voltage: 110 V. Width: 255 mm, Height: 57 mm, Depth: 47.7 mm. Package width: 271.8 mm, Package depth: 83.8 mm, Package height: 50.8 mm

          IEC 60512-99-002 Compliant

          PoE Certificate Number: 2019-248

          UTP Cat6 22-24 AWG solid cable (Requires PoE cable if used in PoE setting)

          12-Port Patch Panel Manages and Organizes High-Density Cat6 Network Cabling

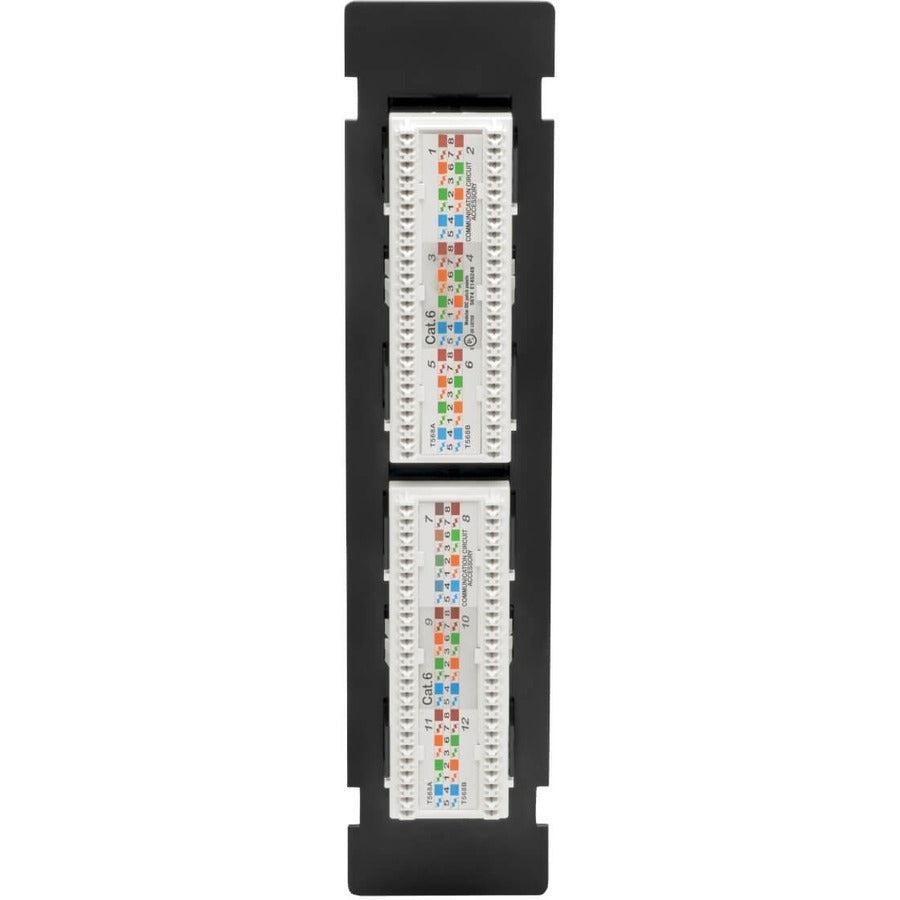

          This patch panel enables quick, easy cable patching. Just plug Cat6 patch cables into its 12 front RJ45 ports, and use a 110 or Krone punch-down tool (do not use a 4/5 pair 110 punch-down tool) to terminate color-coded connections in the rear. Both the RJ45 ports and 110 terminals are clearly numbered, and the front ports have blank labels to help you identify individual cable runs. The N250-P12 supports EIA/TIA 568A and 568B wiring standards and is compatible with all network applications.

          Specifically Designed for Use in Power over Ethernet Plus (PoE+) Applications
          This Power over Ethernet patch panel maximizes performance with PoE+ applications. It prevents spark-gap erosion that degrades the plug and jack contacts over time and can affect data and/or power transmission capabilities. The N250-P12 is designed to handle the frequent mating and unmating of surveillance cameras, VoIP phone systems, wireless access points and other PoE and PoE+ devices under electrical load.

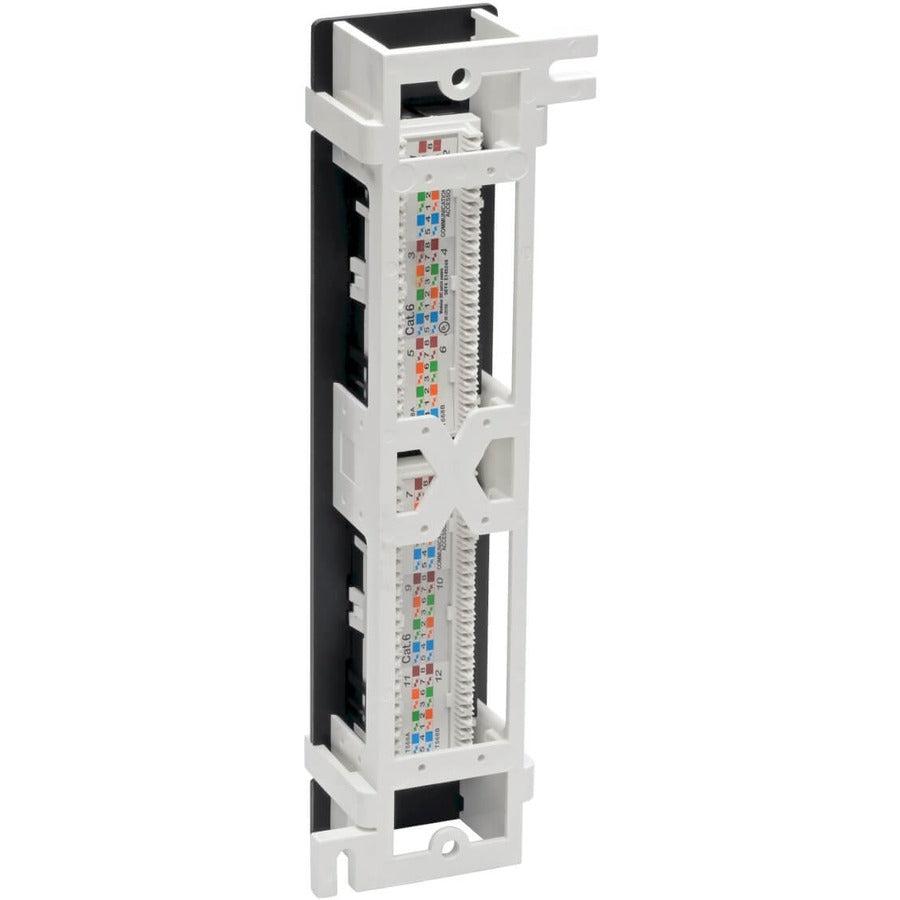

          Effortlessly Mounts to a Wall or Desk Using the Included Frame
          The 12-port patch panel is constructed from aluminum with an ABS plastic frame that mounts to a wall, desk or similar flat surface. The patch panel easily snaps into and out of the frame, allowing you to remove it to make new connections and snap it back into place. Included cable ties help organize your connections and cut down on cord clutter.

          TAA-Compliant for GSA Schedule Purchases
          The N250-P12 is compliant with the Federal Trade Agreements Act (TAA), which makes it eligible for GSA (General Services Administration) Schedule and other federal procurement contracts.

          Lifetime Warranty
          The N250-P12 is backed by a lifetime warranty, ensuring reliability and performance.
