Tripp Lite by Eaton

Tripp Lite Isolator Series 120V 500W Ul60601-1 Medical-Grade Isolation Transformer With 4 Hospital-Grade Outlets

Tripp Lite Isolator Series 120V 500W Ul60601-1 Medical-Grade Isolation Transformer With 4 Hospital-Grade Outlets

SKU:IS500HG

Regular price $312.98
Regular price Sale price $312.98
Sale Sold out
Shipping calculated at checkout.
          View full details
          Description
          Reviews, Que. & Ans.

          Description :

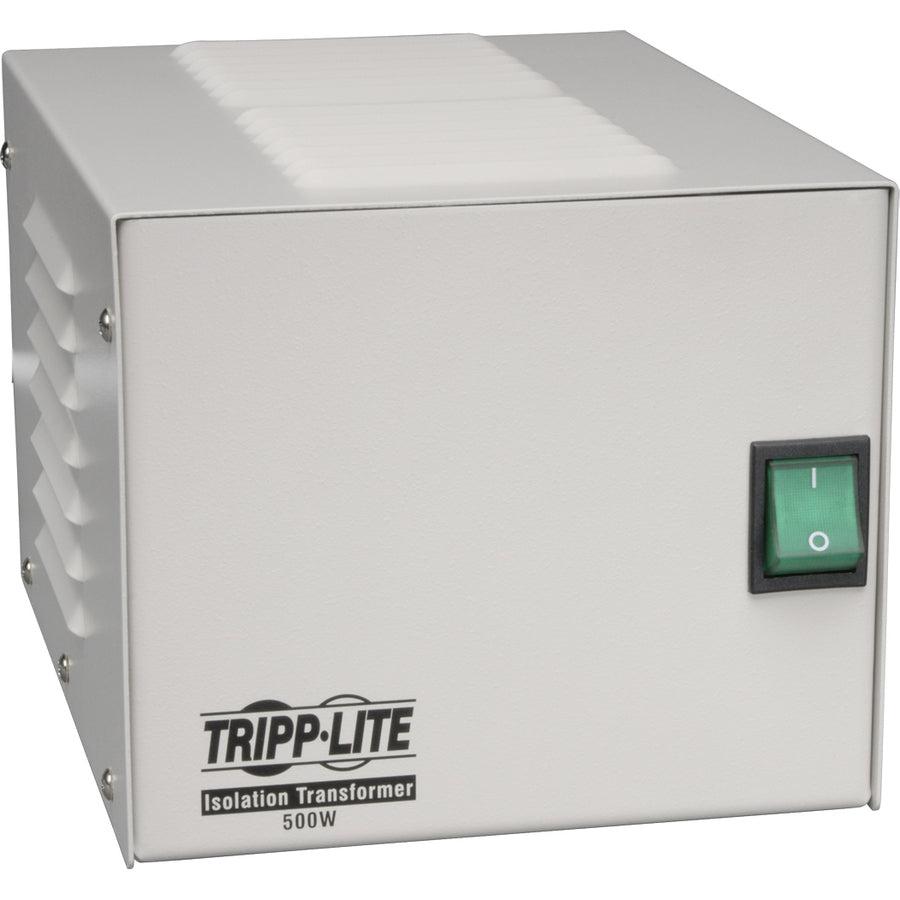

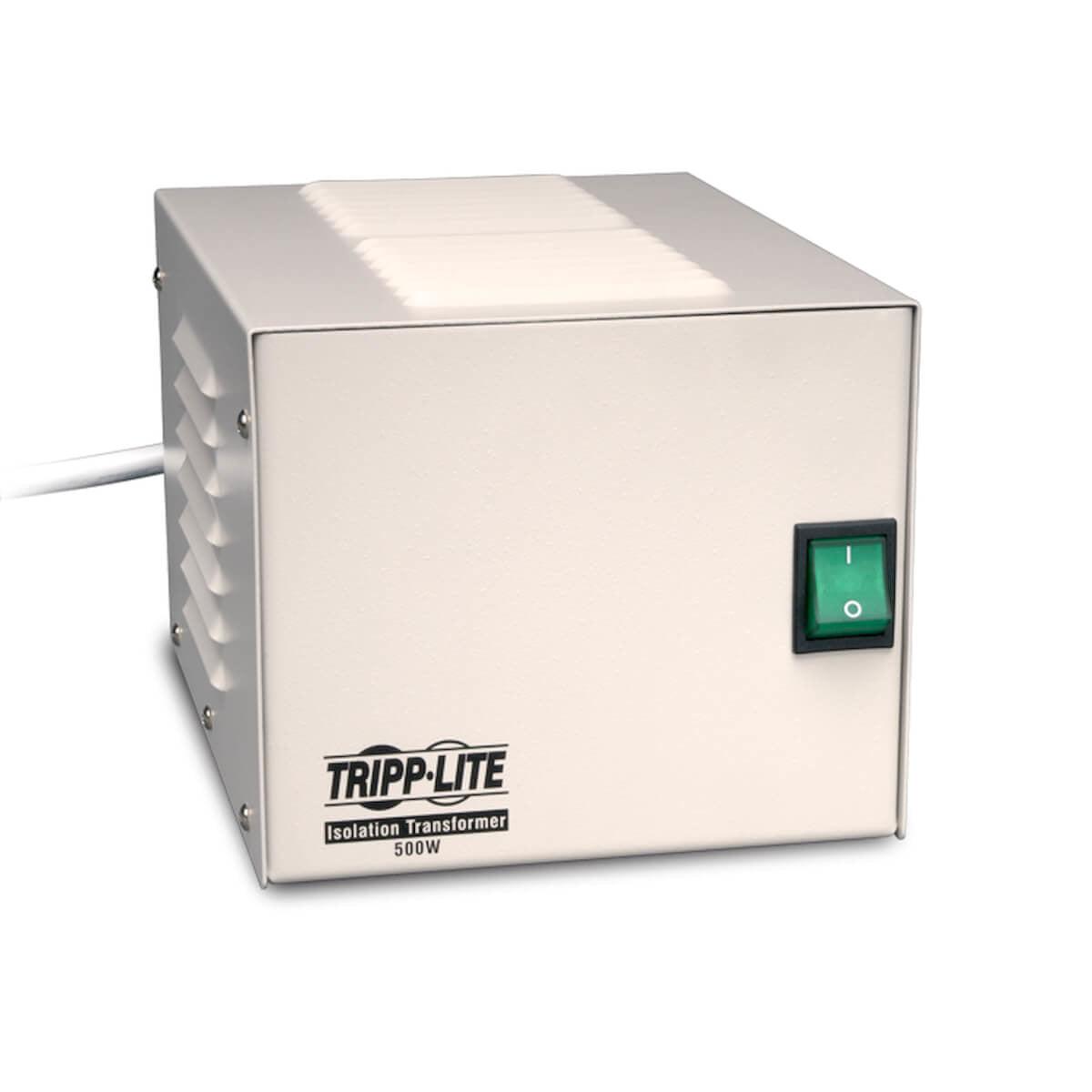

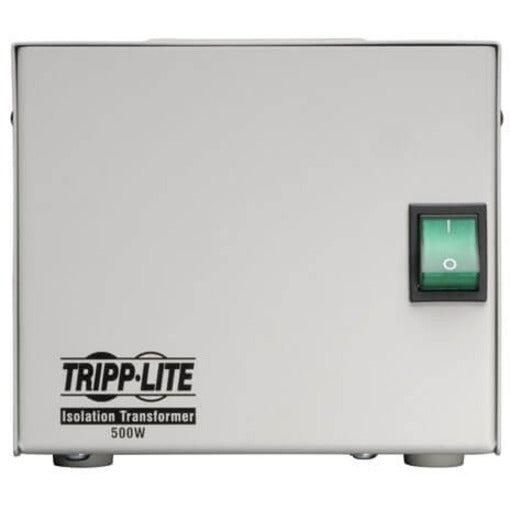

          Isolator Series 120V 500W UL60601-1 Medical-Grade Isolation Transformer with 4 Hospital-Grade Outlets

          Tripp Lite Isolator Series 120V 500W UL60601-1 Medical-Grade Isolation Transformer with 4 Hospital-Grade Outlets. Surge energy rating: 680 J, AC outlets quantity: 4 AC outlet(s), AC outlet types: NEMA 5–15R. Power plug: NEMA 5–15P. Product colour: White, EMI/RFI noise filtering: 65 dB, Country of origin: Taiwan. Cable length: 3.05 m, Weight: 10.1 kg, Width: 158.8 mm. Package width: 228.6 mm, Package depth: 289.6 mm, Package height: 210.8 mm

          Isolator Series UL60601-1 Listed Medical Grade Isolation Transformers offer line isolation, continuous noise filtering and enhanced common mode surge suppression. An internal low-impedance isolation transformer component offers 100% isolation from the input AC line. Full UL60601-1 medical-grade listing with hospital-grade plug and outlet receptacles makes Isolator medical-grade transformers ideal for protection of sensitive electronic equipment in patient-care areas. Faraday shield reduces the cumulative leakage current of the Isolator and connected equipment to levels less than 100 microamps. Secondary neutral-to-ground bonding virtually eliminates common mode noise, providing an isolated neutral-ground reference for sensitive equipment, and an inexpensive alternative to dedicated circuits and site electrical upgrades. Removes EMI/RFI noise, utility switching transients and harmonics generated by other on-site loads and utility or lightning related surge conditions. Active transformer filtering provides continuous common-mode noise rejection with no wearable parts. Unique ability to reduce surges in the worst of power environments to harmless levels. Reduces 6000V IEEE587 Cat A&B ring wave and combination wave test surges to only 0.5V common mode. Model IS500HG includes 4 widely spaced NEMA 5-15R hospital-grade output receptacles, a 10-ft. power cord, hospital-grade input plug, circuit breaker overload protection, and lighted power switch. Rugged all-metal unit ships ready for placement in any industrial, medical, office or network environment. PLUG/OUTLETS: Input - NEMA 5-15P Hospital Grade; Output - 4 NEMA 5-15R Hospital Grade ELECTRICAL: 120V AC, 60Hz, 2.1A (Requires NEMA 5-15R wall receptacle)

          - The IS500HG Medical Grade Isolation Transformer offers line isolation and continuous noise filtering
          - Internal low-impedance isolation transformer with Faraday shield offers 100% isolation from the input AC line
          - Full UL60601-1 medical-grade listing with hospital-grade plug and outlet receptacles makes Isolator Hospital Grade transformers ideal for the protection of
          - sensitive electronic equipment in patient-care areas.
          - Reduces the cumulative leakage current of the Isolator and connected equipment to levels less than 100 microamps.
          - Secondary neutral-to-ground bonding eliminates common mode noise, providing an isolated ground reference for sensitive equipment
          - Serves as an inexpensive alternative to dedicated circuits and site electrical upgrades
          - Removes EMI/RFI noise, utility switching transients, load-generated harmonics and ground loops
          - Active transformer filtering offers continuous common-mode noise rejection with no wearable parts; unique ability to reduce surges in the worst of power
          - environments to harmless levels
          - Reduces 6000V IEEE587 Cat A&B ring wave and combination wave test surges to only 0.5V common mode

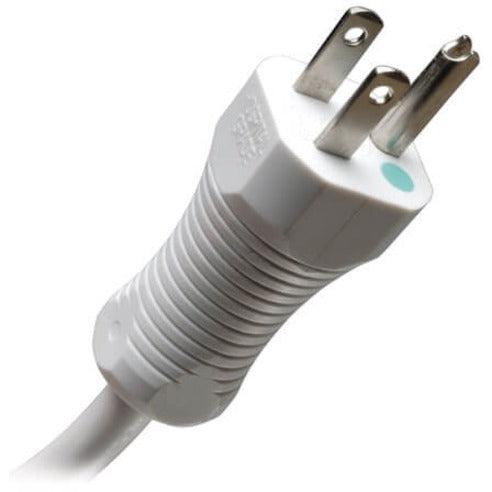

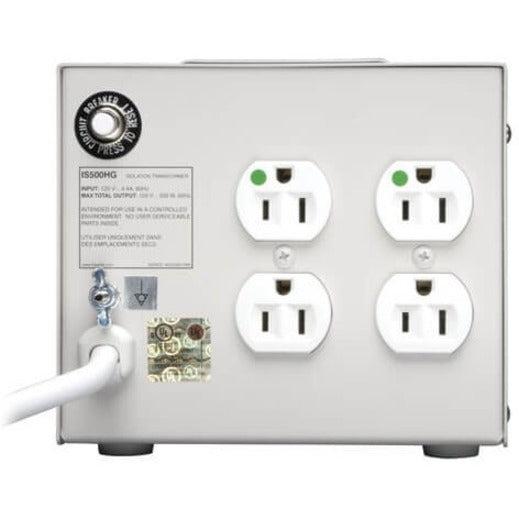

          - Includes 4 widely spaced NEMA 5-15R hospital-grade output receptacles, a 10-ft. power cord, hospital-grade input plug, circuit breaker overload
          - protection and lighted power switch.

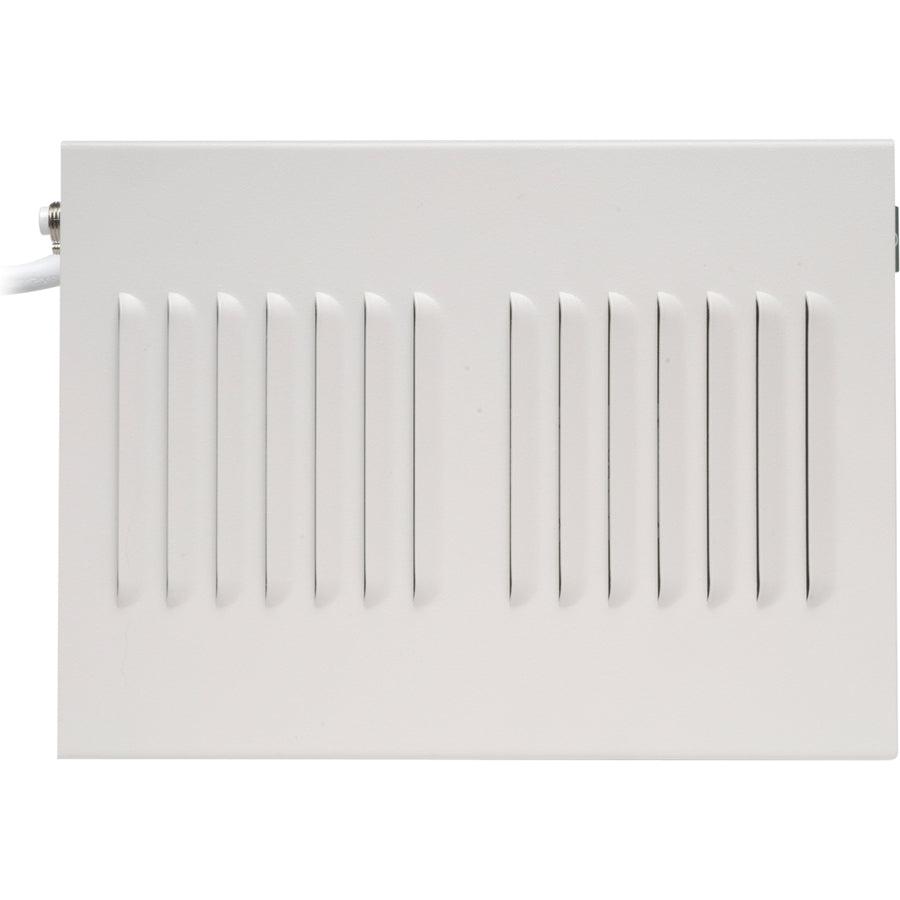

          - Rugged all-metal unit housing; ships ready for upright tower placement in any industrial, medical, office or network environment
