Tripp Lite by Eaton

Tripp Lite B300-9X2-4K Matrix Switcher Media Presentation Matrix Switcher

Tripp Lite B300-9X2-4K Matrix Switcher Media Presentation Matrix Switcher

SKU:B300-9X2-4K

Regular price $720.56
Regular price Sale price $720.56
Sale Sold out
Shipping calculated at checkout.
          View full details
          Description
          Reviews, Que. & Ans.

          Description :

          9x2 Multi-Format Presentation Matrix Switch with Audio Extractor - UHD 4K 60 Hz, IR Support, 4:4:4, 1U

          Tripp Lite B300-9X2-4K. Product type: Media presentation matrix switcher, Maximum resolution: 4096 x 2160 pixels, Maximum resolution (HDMI): 4096 x 2160 pixels. Housing colour: Black, Housing material: Steel, Rack capacity: 1U. USB connector type: USB Type-A, USB Type-B, Headphone connectivity: 3.5 mm. AC input voltage: 100 - 240 V, AC input frequency: 50 - 60 Hz, Input current: 1 A. Country of origin: Taiwan, Products per master (outer) case: 3 pc(s), Master (outer) case gross weight: 9.6 kg

          Shares video output and stereo audio, including true 4K 60 Hz, from 9 different source devices between 2 separate HDMI displays.

          Presentation Matrix Switch Lets You Connect up to 9 Video Sources and 2 HDMI Displays

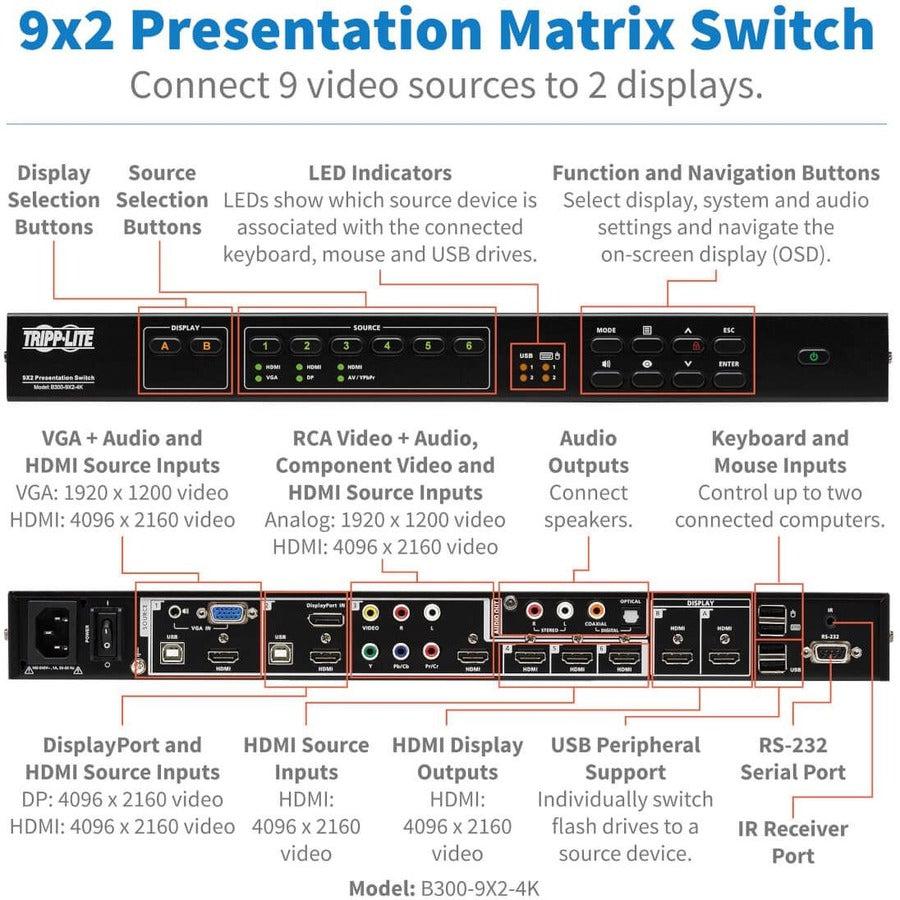

          This multi-format matrix switch/splitter features six HDMI inputs, as well as one each for VGA + Audio, DisplayPort and Component Video. This allows you to connect as many as nine digital or analog, high-definition or standard-definition video sources, including computers, laptops, media servers, Blu-ray players and cable/satellite boxes, and rapidly switch among them. The B300-9X2-4K works right out of the box with no downloads required.

          Suitable for a Wide Range of Audio/Video Applications for Work or Play
          This switch is recommended anywhere a variety of video signals is transmitted to multiple hi-def displays. It is suitable for home theaters, video and multimedia presentations, or digital signage applications in classrooms, bars, restaurants, conference rooms, lecture halls, exhibition centers and trade shows.

          Enjoy Great Flexibility in Transmitting Video to Different Displays or Even Different Rooms

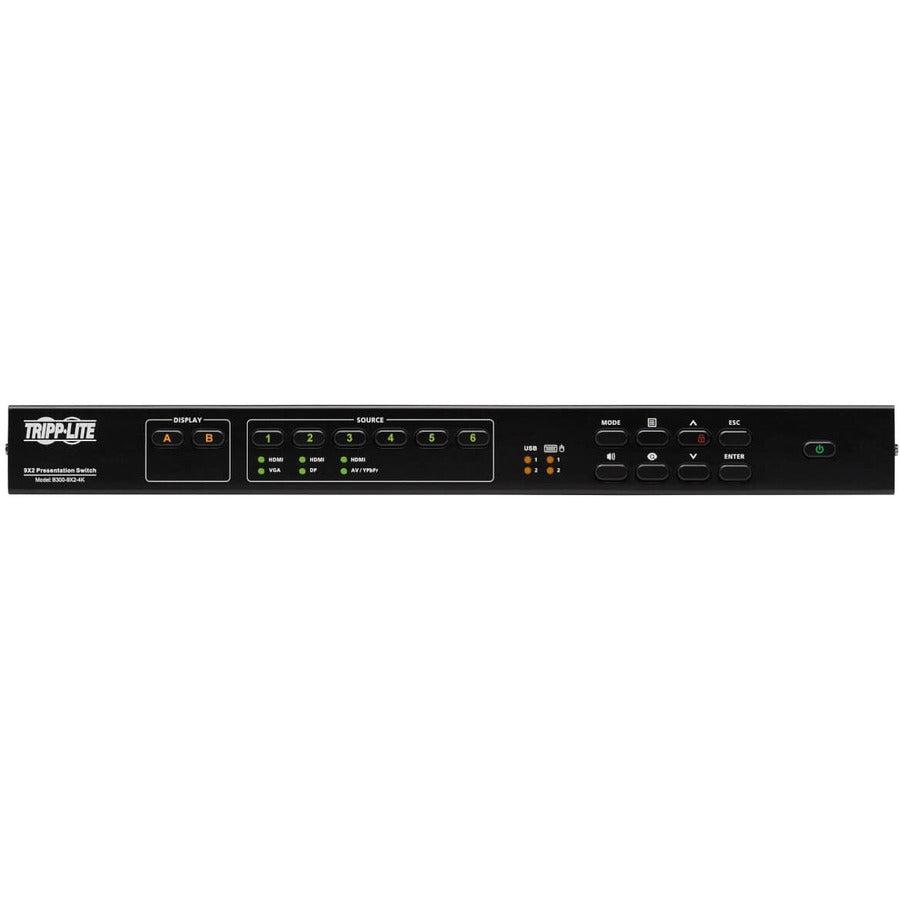

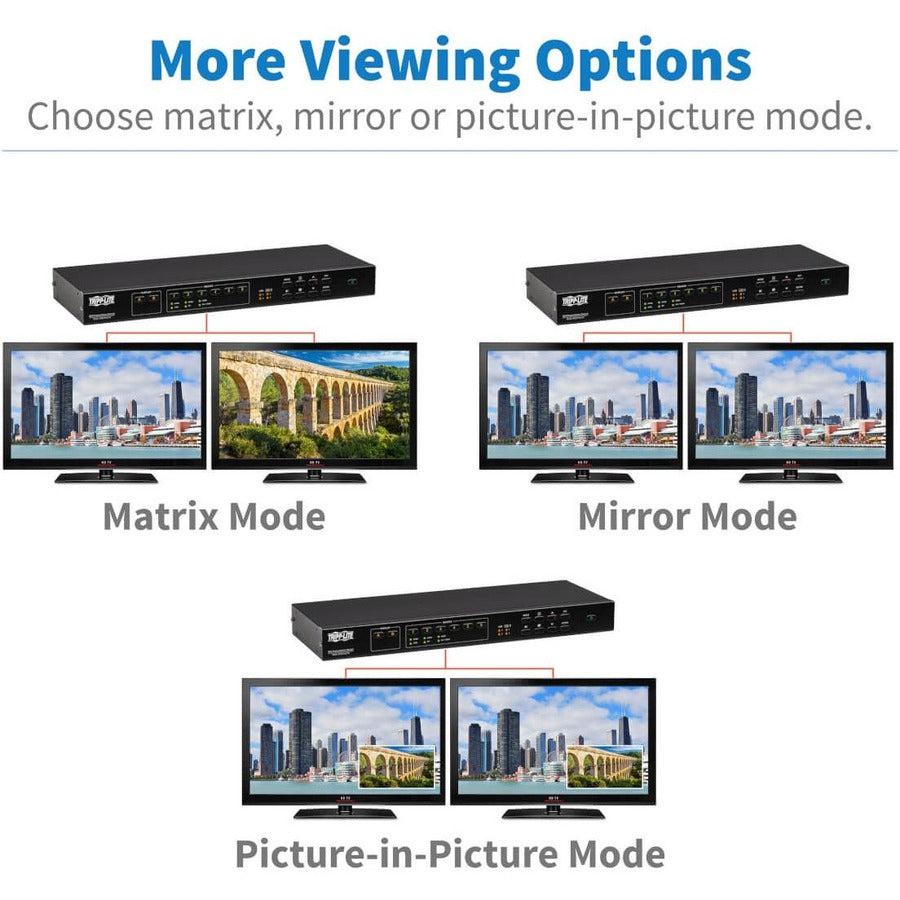

          Choose from three different display modes: Matrix, Mirror or Picture-in-Picture (PiP). Send different video images to both displays, transmit the same image to both displays, or produce a composite image in which video from one source is inserted into a small window over video from a second source. Use the buttons built into the front of the unit, the included IR remote or an RS-232 controller to switch between the connected sources displayed on the two monitors. Preview mode lets you quickly identify and then switch immediately to the target source.

          Transmits Crystal-Clear True 4K HDMI Video with 4:4:4 Color

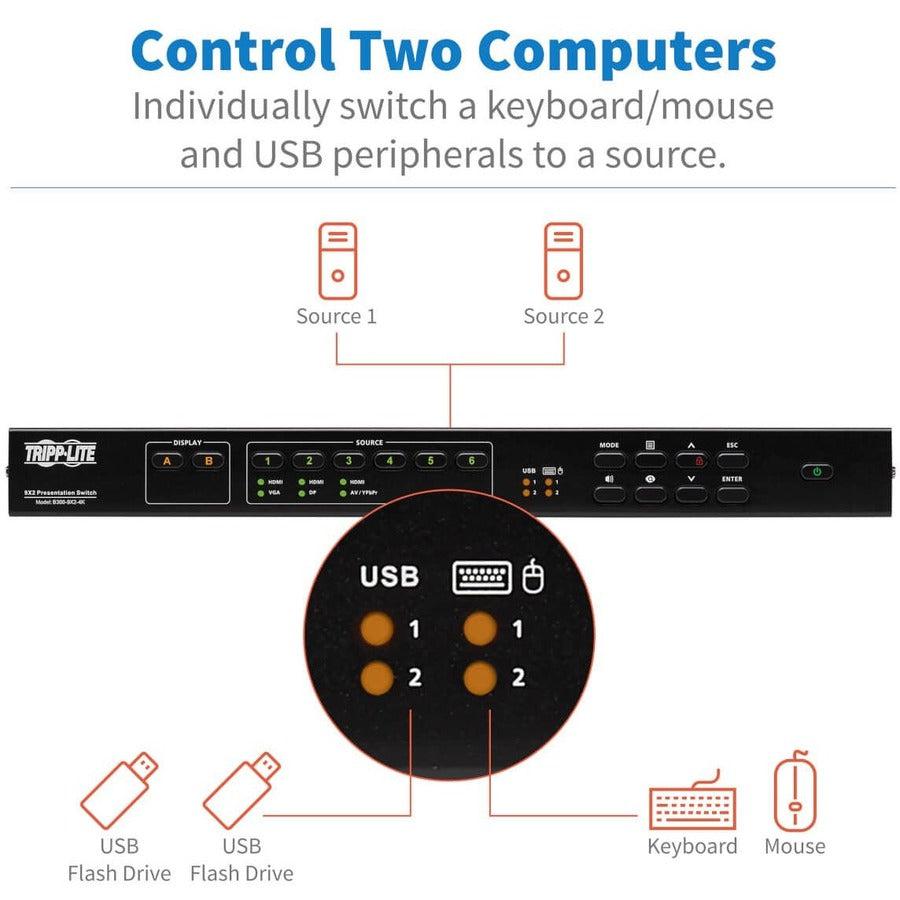

          The DisplayPort input and HDMI inputs/outputs support Ultra HD video resolutions up to 4096 x 2160 (4K x 2K) at 60 Hz (4:2:0) and 30 Hz (4:4:4). The VGA and Composite Video inputs support HD resolutions up to 1920 x 1200, including 1080p, at 60 Hz. In addition to connecting video sources, you can also connect up to two computers using a keyboard/mouse and up to two USB peripherals, such as flash drives, that can be individually switched to a particular source.

          Built-In Audio Extractor Lets You Control Sound, as Well as Picture
          TOSLINK/coaxial and RCA right/left audio ports allow you to connect an amplifier, receiver, soundbar or speakers for optical, digital or analog sound. The B300-9X2-4K supports 2.1-channel PCM digital and analog audio.

          TAA-Compliant for GSA Schedule Purchases
          The B300-9X2-4K is compliant with the Federal Trade Agreements Act (TAA), which makes it eligible for GSA (General Services Administration) Schedule and other federal procurement contracts.
