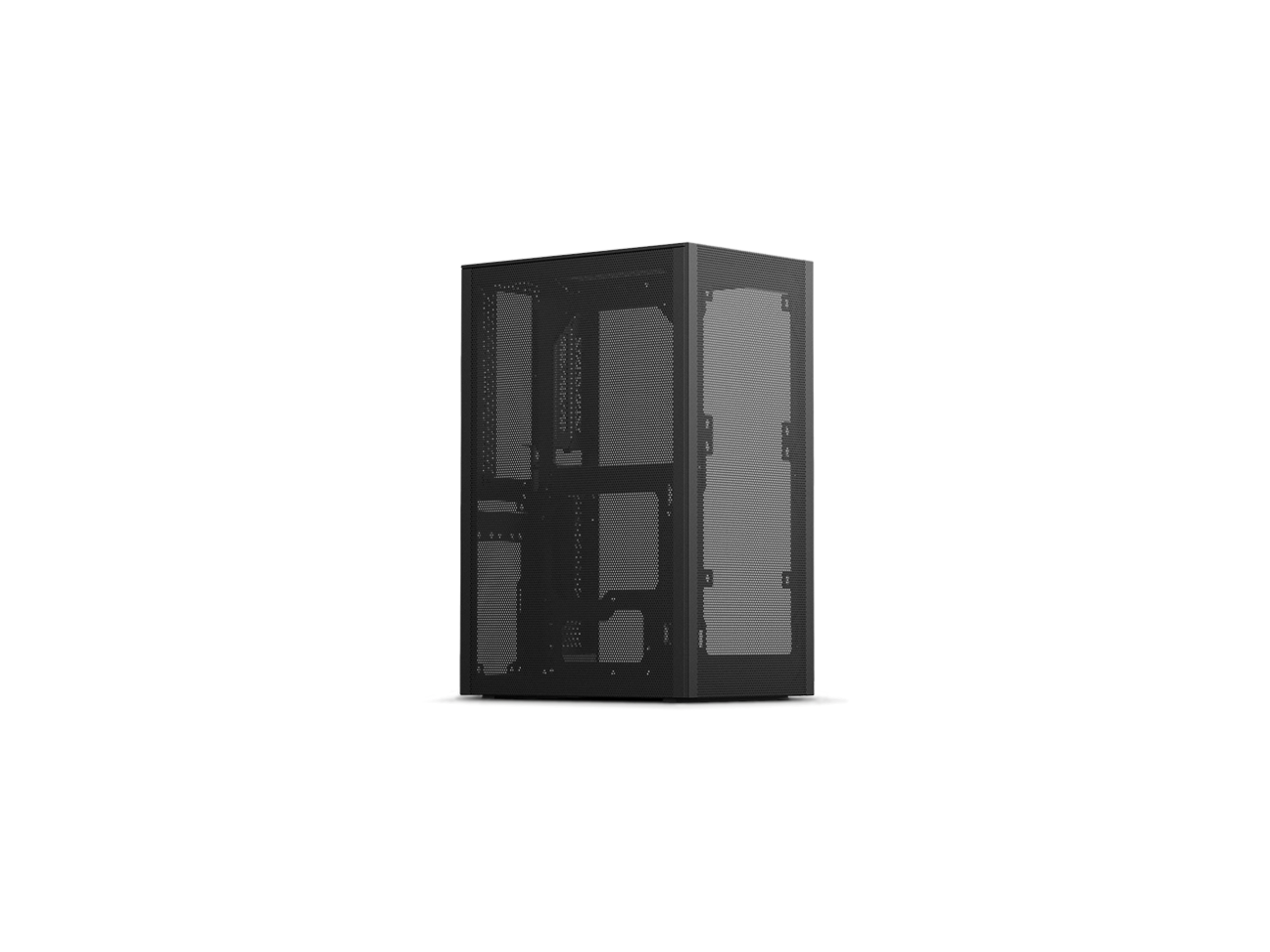

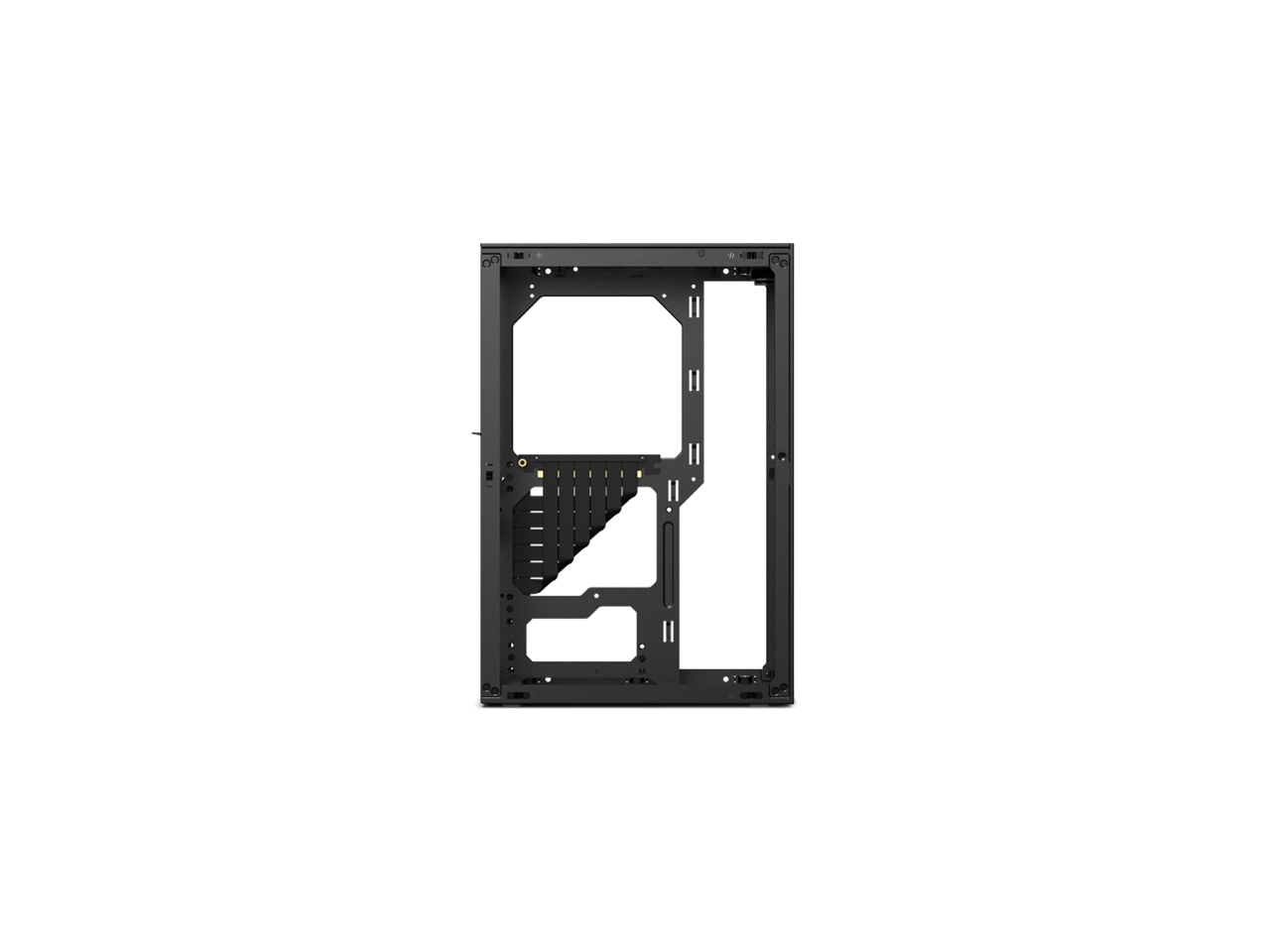

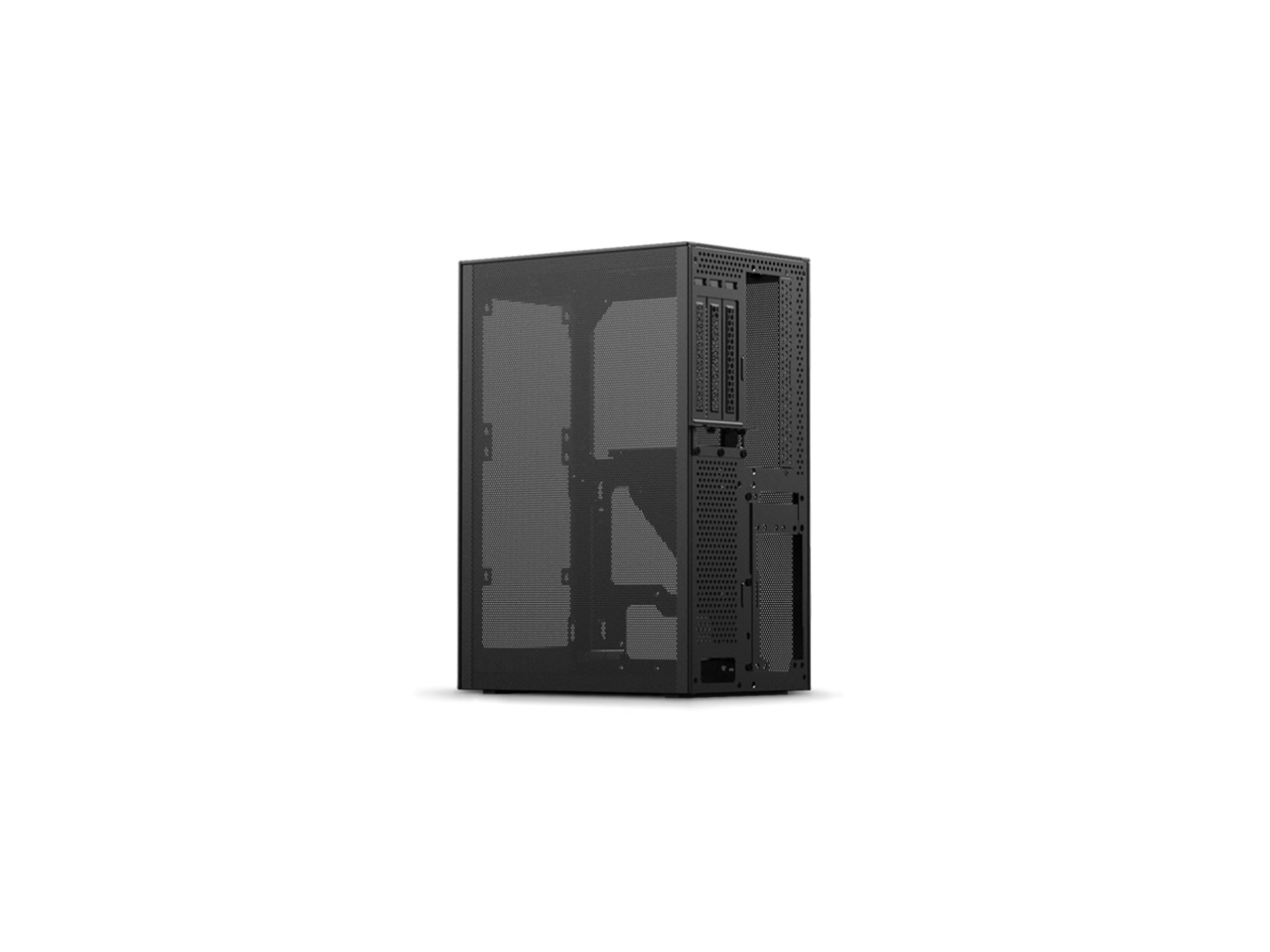

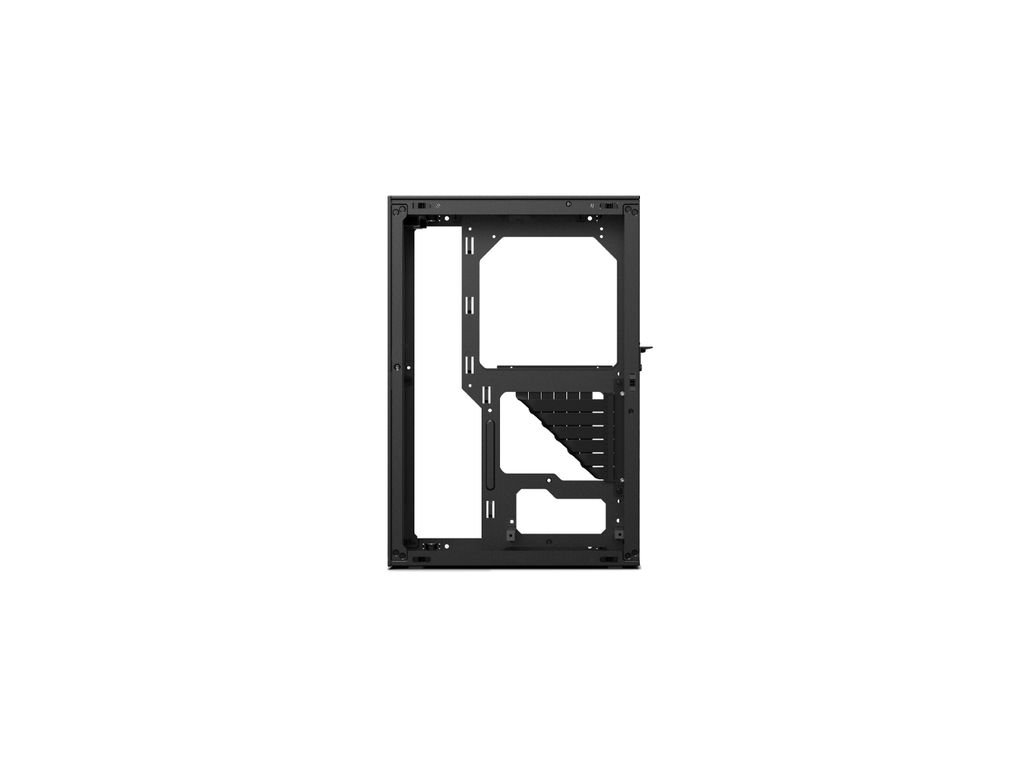

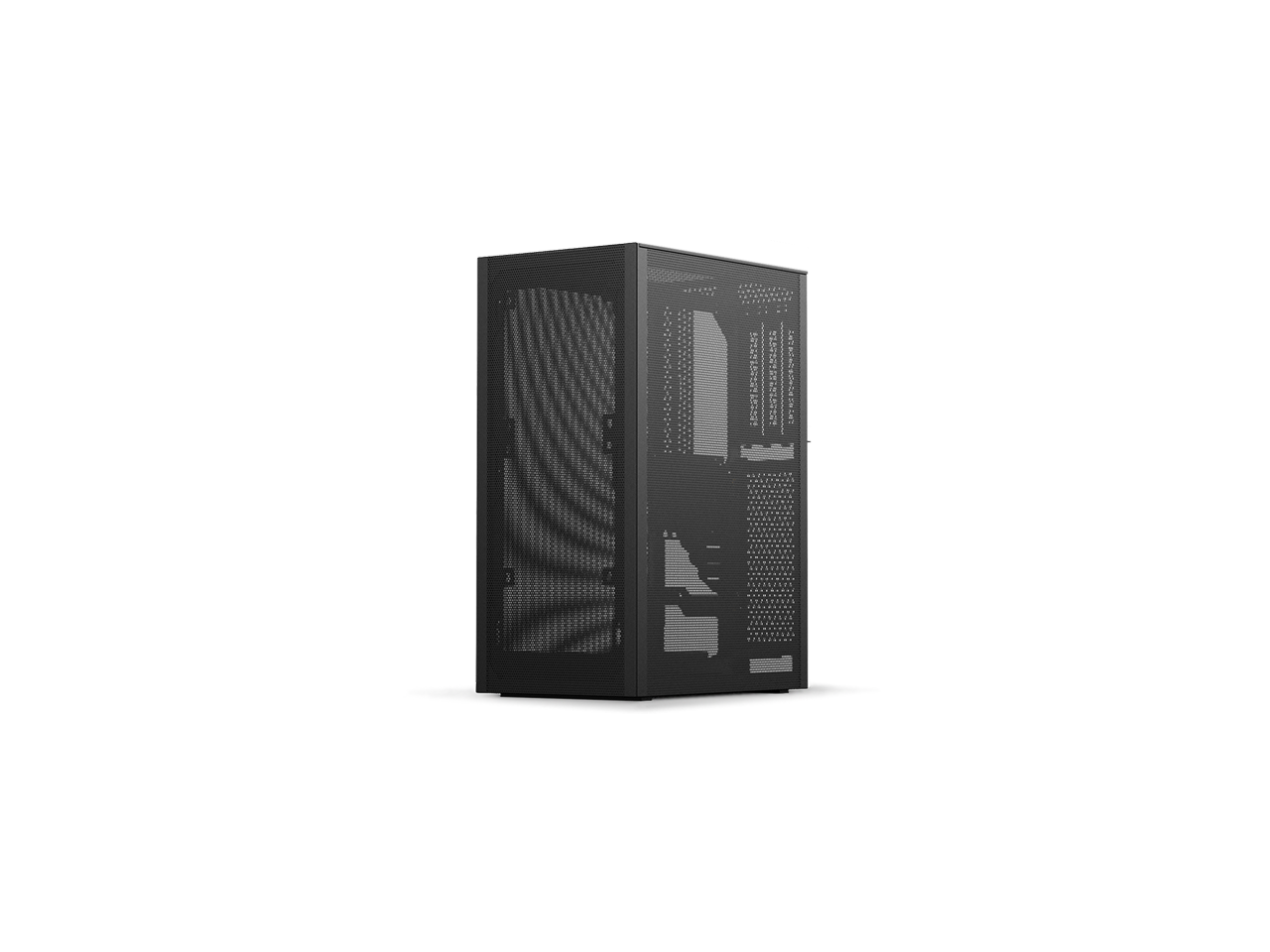

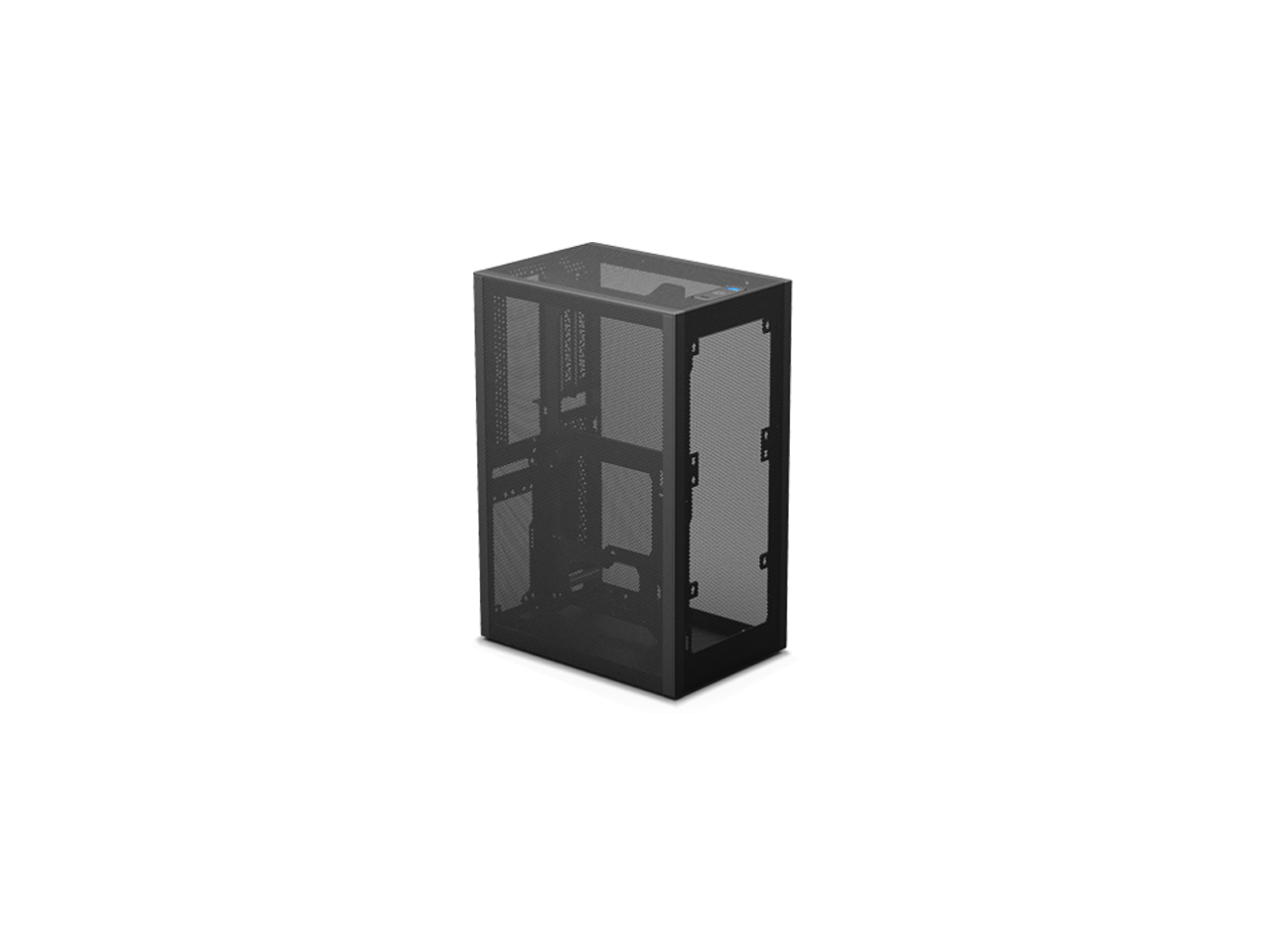

SSUPD Meshlicious Mini-ITX Small Form Factor (SFF) Case - Full Mesh Side Panel

Regular price
$299.99
Sale price
$299.99
Regular price
Sold out
Unit price
per
Shipping calculated at checkout.

          • The full mesh version include two fine mesh side panels for unrestricted airflow.
          • Compact 14.67 liter volume allows full-size GPU, ATX PSU, and 280 AIO cooler compatibility.
          • PCI 3.0 riser card included for a stylish vertical mount full length GPU up to 332mm long on 3 slots mode and up to 336mm long on 4 slots mode.
          • Fits CPU coolers up to 73mm height and supports front cooler up to 280 AIO (max 320mm length radiator).
          • High quality powder coated SGCC steel

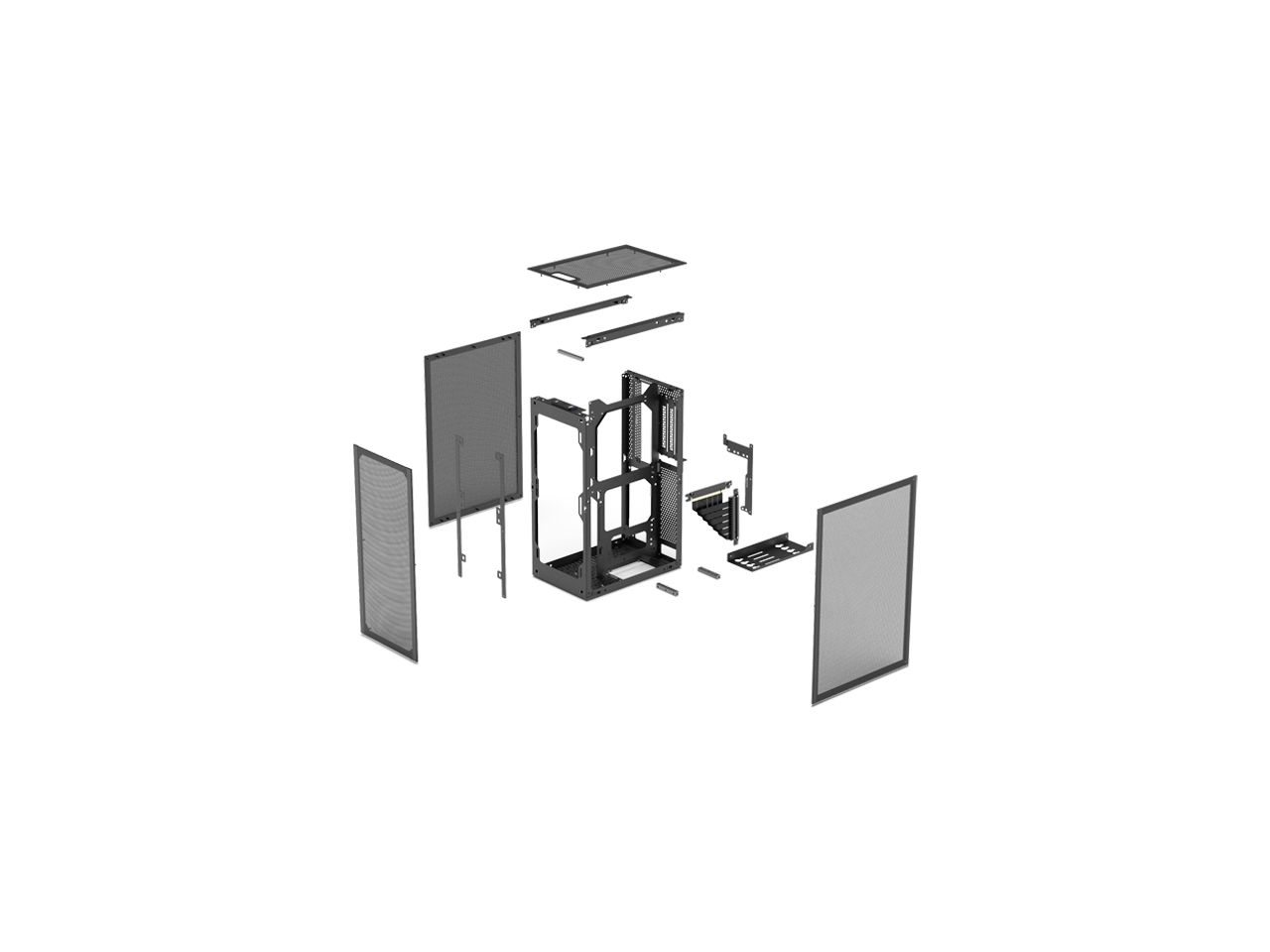

          • Tool-less external fine mesh panels and easy to assemble
          • 6.6ft Up right angle HDMI 2.0 cable (4K@60Hz) is included in the package.
          Model
          Brand SSUPD
          Series Meshlicious
          Model Meshlicious FM Black
          Details
          Type  Mini-ITX
          Color Black
          Case Material Steel, Fine Mesh Panel
          Power Supply ATX (Up to 170mm without radiator); ATX (Up to 150mm with radiator), SFX, SFX-L
          Power Supply Mounted  Bottom
          Motherboard Compatibility  Mini-ITX, Mini-DTX (Require extra 20cm PCIe riser card)
          Dust Filters  No
          Expansion
          Internal 3.5" Drive Bays With SFF GPU: 2 x 3.5" drives max
          Internal 2.5" Drive Bays With Full Length GPU & SFX PSU: 3 x 2.5"drives max; With Full Length GPU & ATX PSU: 2 x 2.5"drives max; With SFF GPU: 7 x 2.5" drives max
          Expansion Slots  Full Length GPU: Up to 4 slots; SFF GPU: Up to 3 slots
          Front Panel Ports
          Front Ports 1x USB Type-C 3.1 Gen2, 1x USB 3.0, Power LED
          Cooling System
          Radiator Options 120 / 140 / 240 / 280 mm (Up to 320mm length, 143 mm width, 63 mm thickness with fans)
          120mm Fans Front: 2 x 120mm fan
          140mm Fans Front: 2 x 140mm fan
          Dimensions & Weight
          Max GPU Length Full Length GPU at 3 slots mode: Up to 332mm length and 155mm tall; Full Length GPU at 4 slots mode: Up to 336mm length and 155 mm tall; Small Form Factor GPU: Up to 211mm length (without radiator)
          Max CPU Cooler Height 73mm height in 3 slots mode; 53mm height in 4 slots mode
          Max PSU Length 170mm (without radiator); Recommend PSU below 150mm length
          Dimensions (H x W x D) 14.17" x 6.55" x 9.65"
          Weight 8.05 lbs.
          Additional Info
          Features Aesthetic look with excellent ventilation of fine mesh panels
          Package Content Meshlicious FM Version Case, Install Kit, Manual, PCIe 3.0 riser card, Right Angle HDMI 2.0 Cable (6.6ft)
