Panduit Dnfr14205Fib-Kd Electrical Terminals

Description :

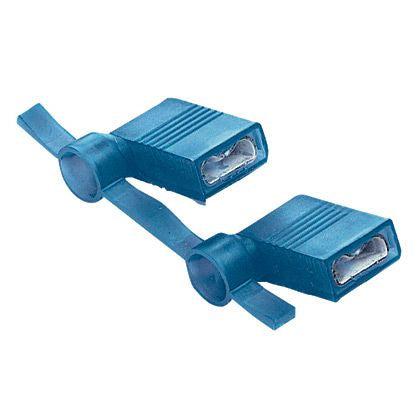

DNFR14205FIB-KD Disconnects on a Reel

Panduit DNFR14205FIB-KD. Connector contacts plating: Tin, Connector gender: Female, Product colour: Blue. Height: 14.5 mm. Quantity per pack: 1500 pc(s)

The vibration resistant, right angle style female disconnect is made of brass and is tin-plated. It is fully insulated in blue nylon and has a funnel entry with insulation support. It has a tab size of 0.205/0.187 x 0.032" (5.2/4.8 x 0.8 mm) and supports a wire range of 16-14 AWG (1.5-2.5 mm²). It is 0.57" (14.5 mm) long, 0.37" (9.4 mm) wide, and has a depth of 0.60" (15.2 mm). The disconnect has a funnel entry configuration and a butted seam barrel. It comes in reels of 1500 pieces.
