MSI

Msi Pro B550-A Pro Am4 Amd B550 Sata 6Gb/S Atx Amd Motherboard

Msi Pro B550-A Pro Am4 Amd B550 Sata 6Gb/S Atx Amd Motherboard

SKU:B550-A PRO

Regular price $162.99
Regular price Sale price $162.99
Sale Sold out
Shipping calculated at checkout.
        View full details
        Description
        Specifications
        Reviews, Que. & Ans.

        Description :

        • AMD B550
        • Supports AMD Ryzen 5000 Series / 4000 G-Series / 3000 Series processors *
        • * Not compatible with AMD Ryzen 5 3400G & Ryzen 3 3200G.
        • DDR4 4400+ / 4266 / 4133 / 4000 / 3866 / 3733 / 3600 / 3466 / 3200 / 3066 / 3000 / 2933 / 2800 / 2667 by A-XMP OC MODE
        • DDR4 3200 / 3066 / 3000 / 2933 / 2800 / 2667 / 2400 / 2133 / 1866 by JEDEC
        • 1DPC 1R Max speed 4800
        • 1DPC 2R max speed 3866
        • 2DPC 1R max speed 4000
        • 2DPC 2R max speed 3600
        B550-A PRO

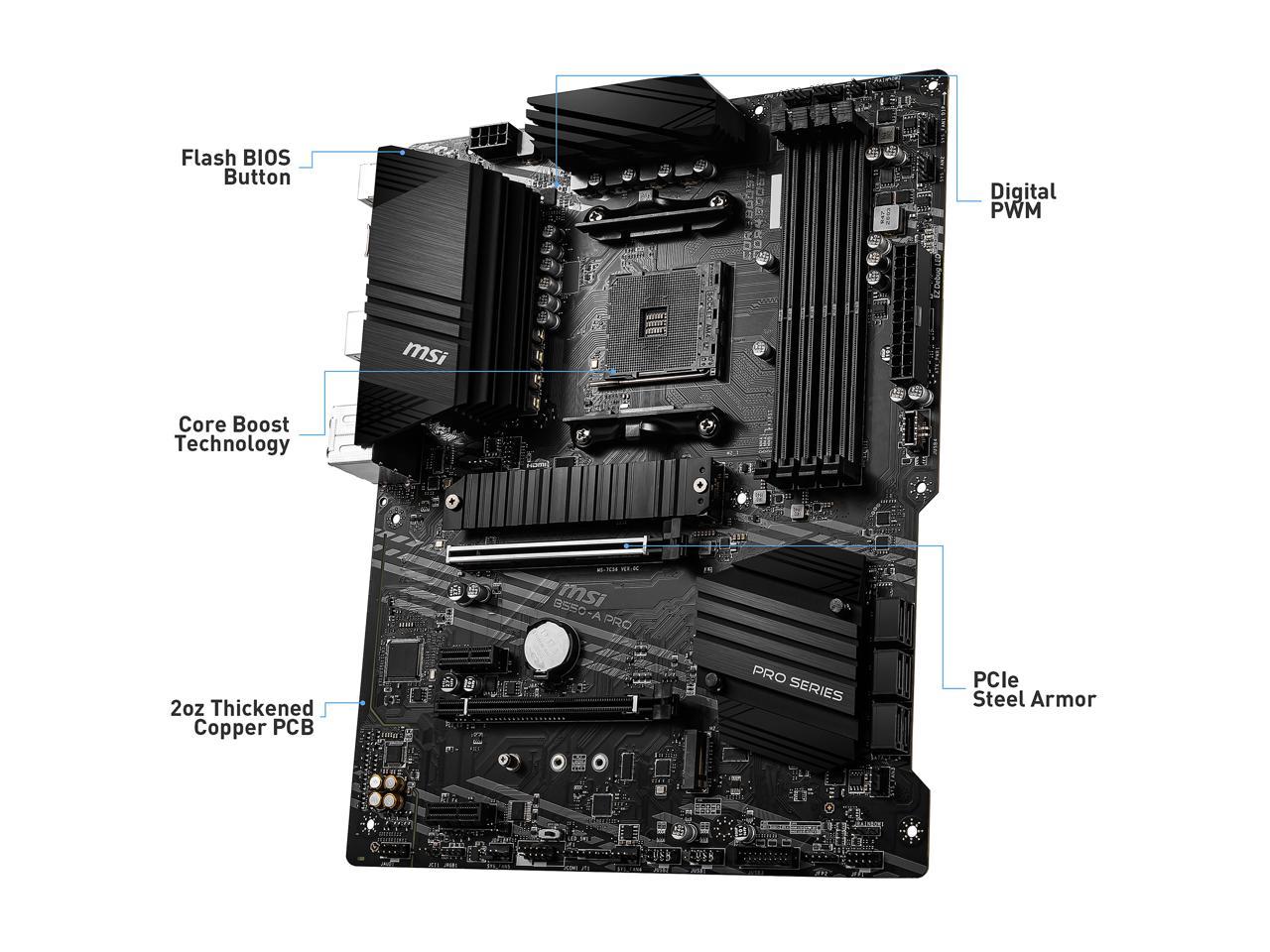

        EXCLUSIVE FEATURES
        B550-A PRO motherboard
        icon-core_boost
        Flash BIOS Button

        Use a USB drive to flash the BIOS even without a CPU or memory.

        icon-core_boost
        Core Boost Technology

        An optimized power circuit layout is ready to unleash maximum performance.

        icon-2oz_thickened
        2oz Thickened Copper PCB

        An enhanced PCB material design improves heat dissipation and high-performance capabilities.

        icon-digital_pwm
        Digital PWM

        A selection of the highest quality power delivery components lets the system run reliably even under extreme conditions.

        icon-steel_armor
        PCIe Steel Armor

        Reinforced and shielded PCIe slots for strength and stability.

        B550-A PRO

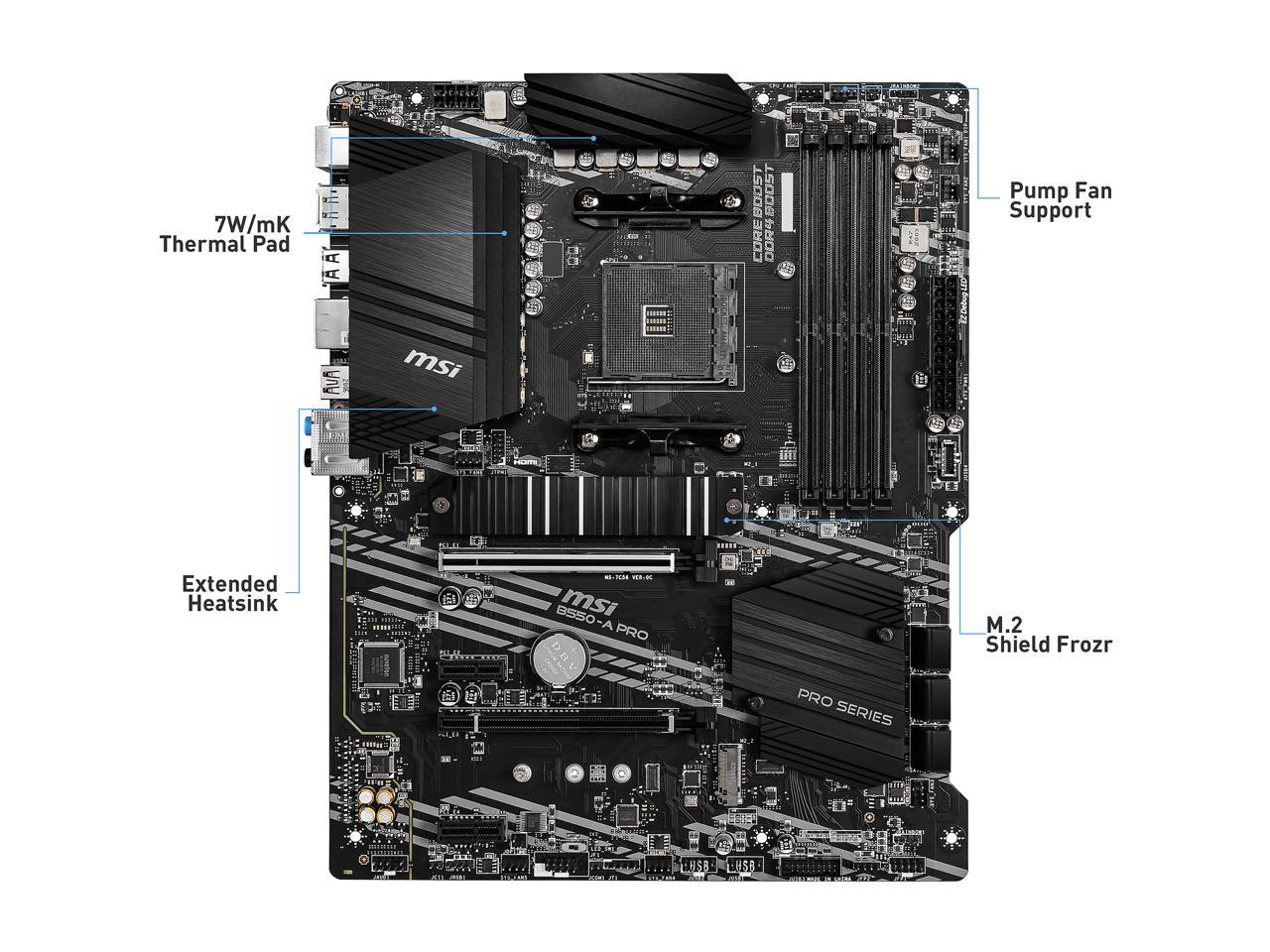

        PREMIUM THERMAL SOLUTION
        B550-A PRO motherboard
        icon-k7
        7W/mK Thermal Pad

        Premium 7W/mK thermal pad covers both the MOSFET and chokes while providing better heat transfer to the heatsink.

        icon-extended_heatsink
        Extended Heatsink

        Larger heatsink design for cooling and performance.

        icon-pump_fan
        Pump Fan Support

        Control watercooling pump speeds for flowrate and noise control.

        icon-m_2_shield
        M.2 Shield Frozr

        Sustain maximum high-speed M.2 SSD data transfer with M.2 SHIELD FROZR and prevent SSD thermal throttling.

        B550-A PRO

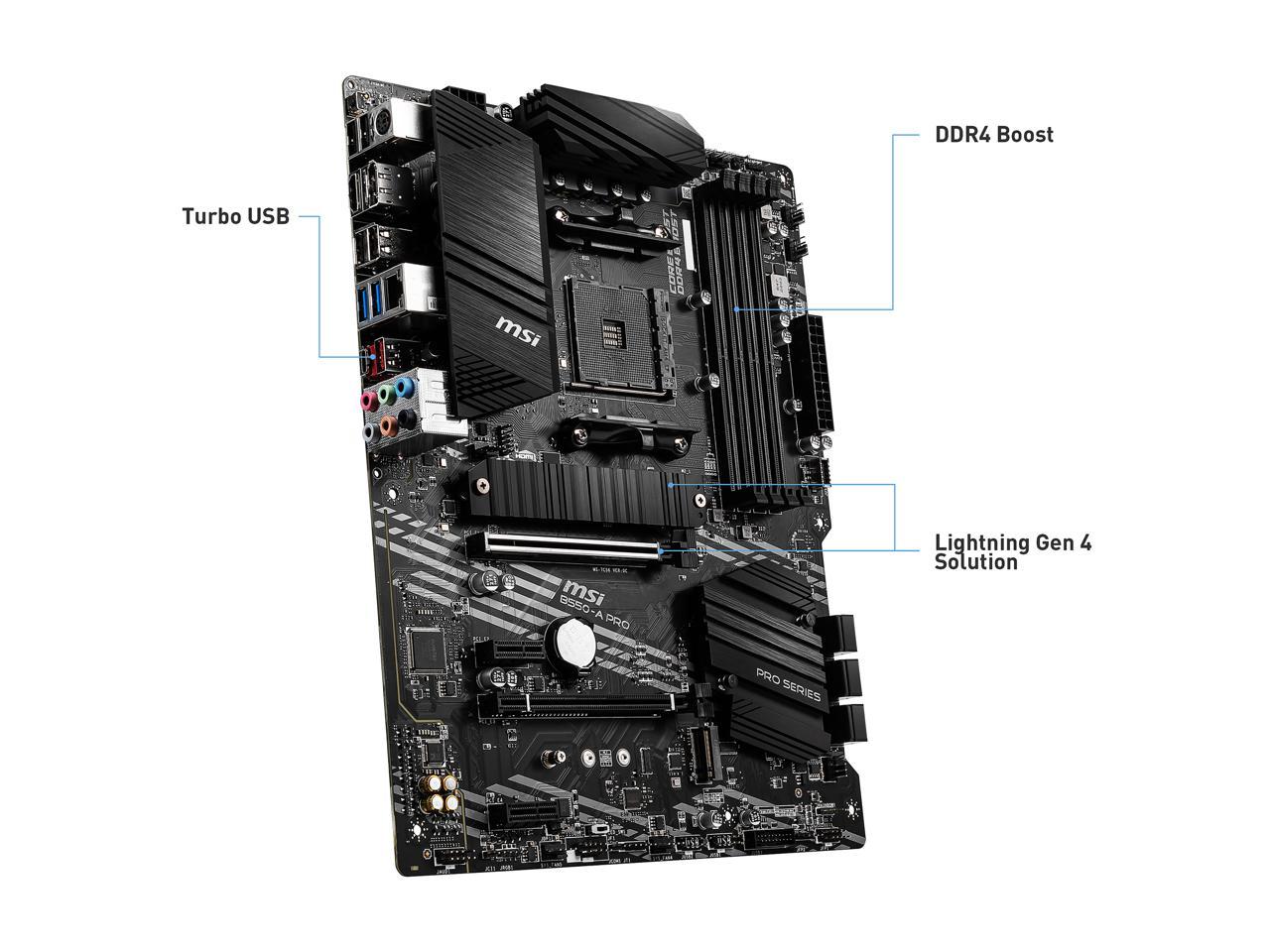

        HIGH-SPEED TRANSMISSION
        B550-A PRO wifi motherboard
        icon-turbo_usb
        Turbo USB

        Featuring TURBO USB 3.2 GEN 2 10Gbps with reversible Type-C connector.

        icon-m_2_shield_frozr
        DDR4 Boost

        The memory circuit design has been optimized on a reserved section of the motherboard fully isolated from other circuits.

        icon-lightning
        Lightning Gen 4 Solution

        Transfer data lightning fast across Gen 4 PCI-E and M.2 with up to 64GB/s bandwidth.

        core boost of motherboard
        CORE BOOST

        Core Boost combines a reserved zone of optimized circuits and premium power delivery components to create a highly efficient power system capable of precise current output to the CPU.

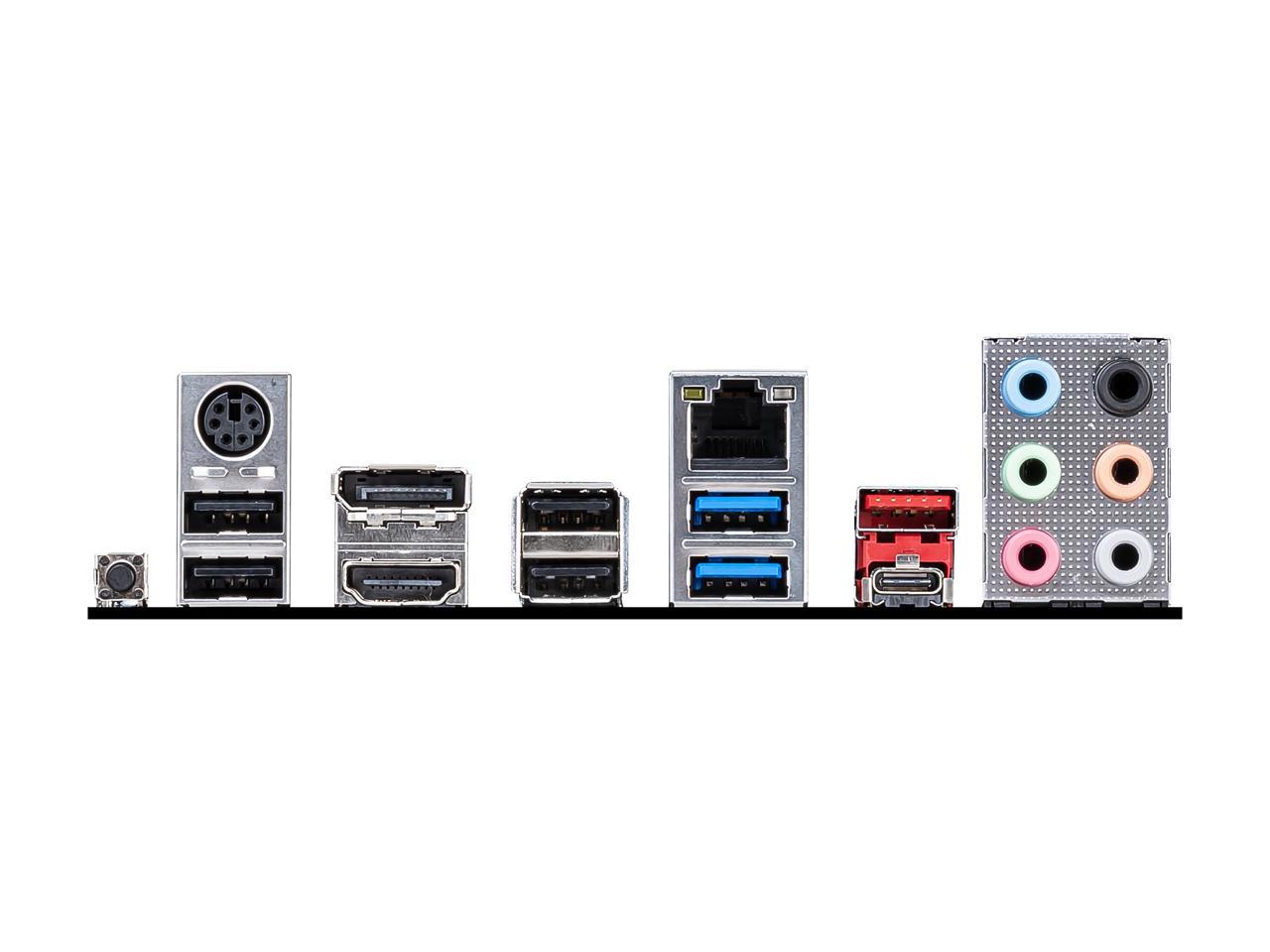

        the ports of the motherboard
        10 +2 +1 DUET RAIL POWER SYSTEM

        Unleash and sustain maximum performance with an aggressive VRM design built to supply stable and steady power delivery.

        • 10 phase Duet Rail Power System
        • 2 phase SOC Power
        • 1 phase APU Power
        • Digital PWM IC
        extedned  heatsink of the motherboard
        EXTENDED HEATSINK

        An all-metal extended heatsink cover enlarges the heat dissipation surface allowing the CPU power system to reliably drive multi-core processors.

        the 2oz thickened copper of the motherboard
        PCB WITH 2OZ THICKENED COPPER

        An enhanced PCB material design with 2oz thickened copper increases conductivity, improving heat dissipation and high-performance reliability.

        the usb_type of the motherboard
        USB TYPE-C READY - REAR IO & FRONT CASE PANEL SUPPORT

        Effortlessly plug in devices with reversible USB Type-C.

        LIGHTNING GEN4 of the motherboard
        LIGHTNING GEN4 M.2 WITH M.2 SHIELD FROZR

        Sustain maximum M.2 SSD data transfer with M.2 SHIELD FROZR. Prevent SSD thermal throttling with a heatsink that extends across the motherboard.

        lightning_gen4 of the motherboard
        LIGHTNING GEN 4 SOLUTION

        Strike fast with MSI Lightning Gen 4 PCI-E. Attach ultra fast PCI-E 4.0 devices and enjoy up to 64GB/s unidirectional transfer bandwidth.

        a chart showing different effect between DDR4 BOOST and OTHERS
        UNMATCHED MEMORY PERFORMANCE

        MSI takes memory stability and performance to the extreme. We've designed an optimized memory circuit design for reliability and tested compatibility extensively in partnership with major memory manufacturers.

        port of the motherboard
        EASY TO ARRANGE YOUR CABLES

        Tuck away SATA and USB cables neatly with MSI Atypical PCB edge.

        detail of the connection of the video
        MULTIPLE GPU SUPPORT AND STEEL ARMOR

        B550-A PRO supports AMD CrossFire multi GPU technology. PCI-E slot placements provide optimal airflow for graphics card cooling.

        MSI PCI Express Steel Armor slots are secured to the motherboard with extra solder points and support the weight of heavy graphics cards. When every advantage counts, Steel Armor shields the point of contact from electromagnetic interference.

        Specifications :

        General Information

        UPC 824142219362
