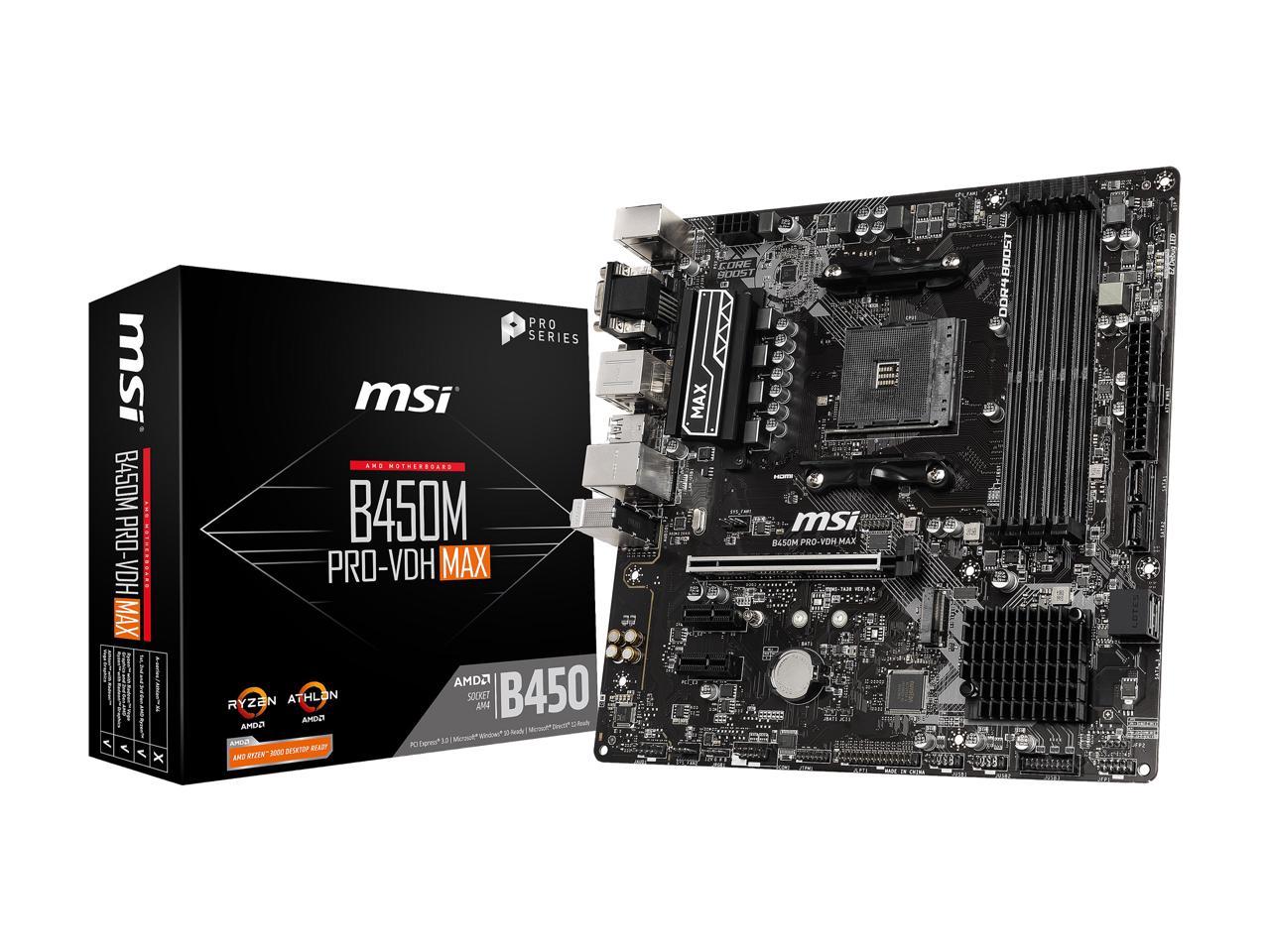

Msi Pro B450M Pro-Vdh Max Am4 Amd B450 Sata 6Gb/S Micro Atx Amd Motherboard

Name: Msi Pro B450M Pro-Vdh Max Am4 Amd B450 Sata 6Gb/S Micro Atx Amd Motherboard
Brand: MSI
SKU: B450M PRO-VDH MAX
Price: 150.00 USD
Availability: OutOfStock

Msi Pro B450M Pro-Vdh Max Am4 Amd B450 Sata 6Gb/S Micro Atx Amd Motherboard

SKU:B450M PRO-VDH MAX

$150.00

Sale Sold out

Shipping calculated at checkout.

Product variants

Quantity

View full details

Description

Specifications

Reviews, Que. & Ans.

Description :

AMD B450
Supports 1st, 2nd and 3rd Gen AMD Ryzen / Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics / Athlon with Radeon Vega Graphics Desktop Processors for Socket AM4
For AMD Ryzen Gen3 (R5/R7/R9):
Supports DDR4 3866/ 3733/ 3466/ 3200/ 3066/ 3000/ 2933/ 2800/ 2667 MHz (by A-XMP OC MODE)
For AMD Other Processors:
Supports DDR4 3466/ 3200/ 3066/ 3000/ 2933/ 2800/ 2667 MHz (by A-XMP OC MODE)
Supports DDR4 2667/ 2400/ 2133/ 1866 MHz (by JEDEC)

**Model**
Brand	MSI
Series	PRO
Model	B450M PRO-VDH MAX

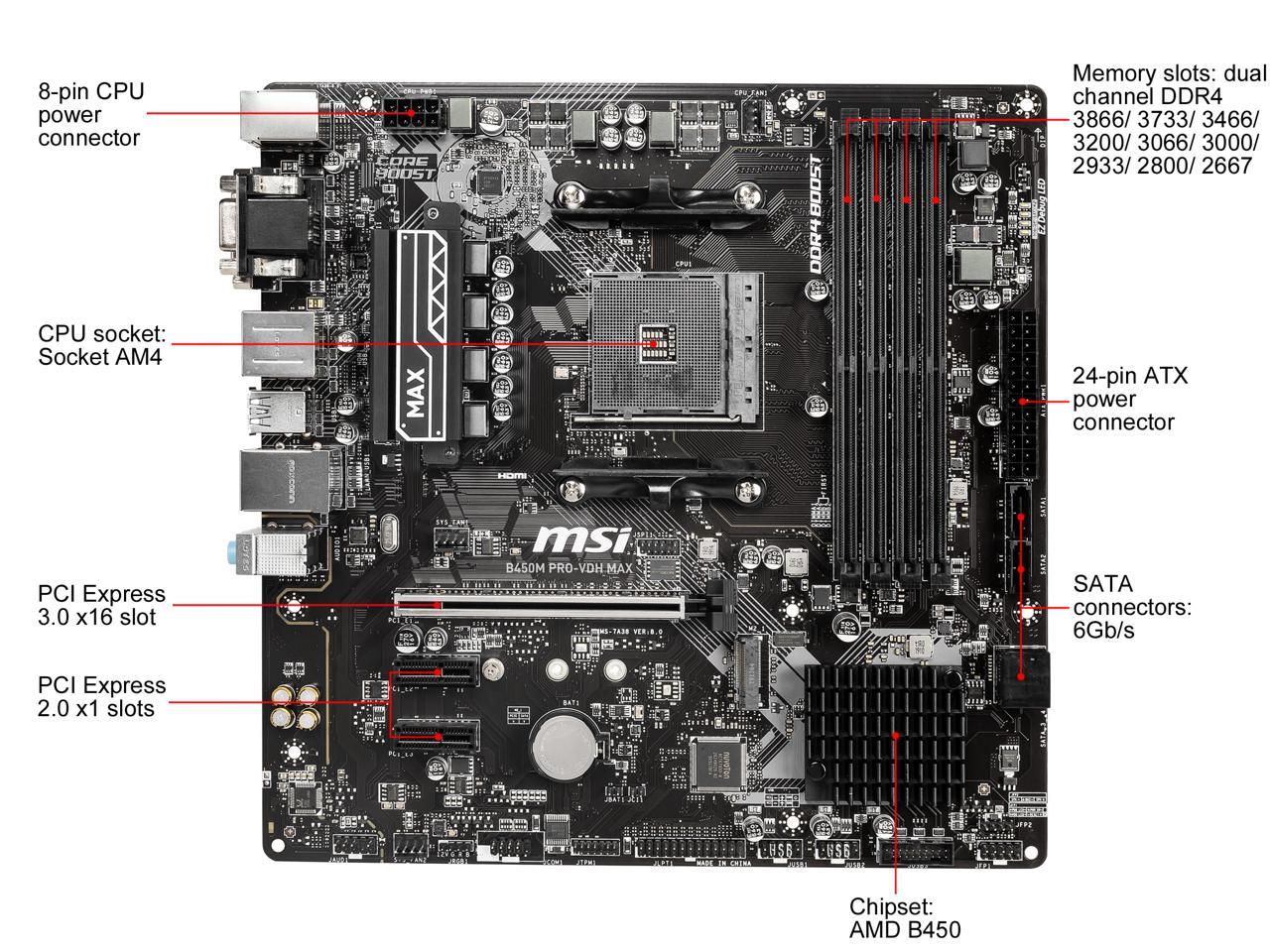

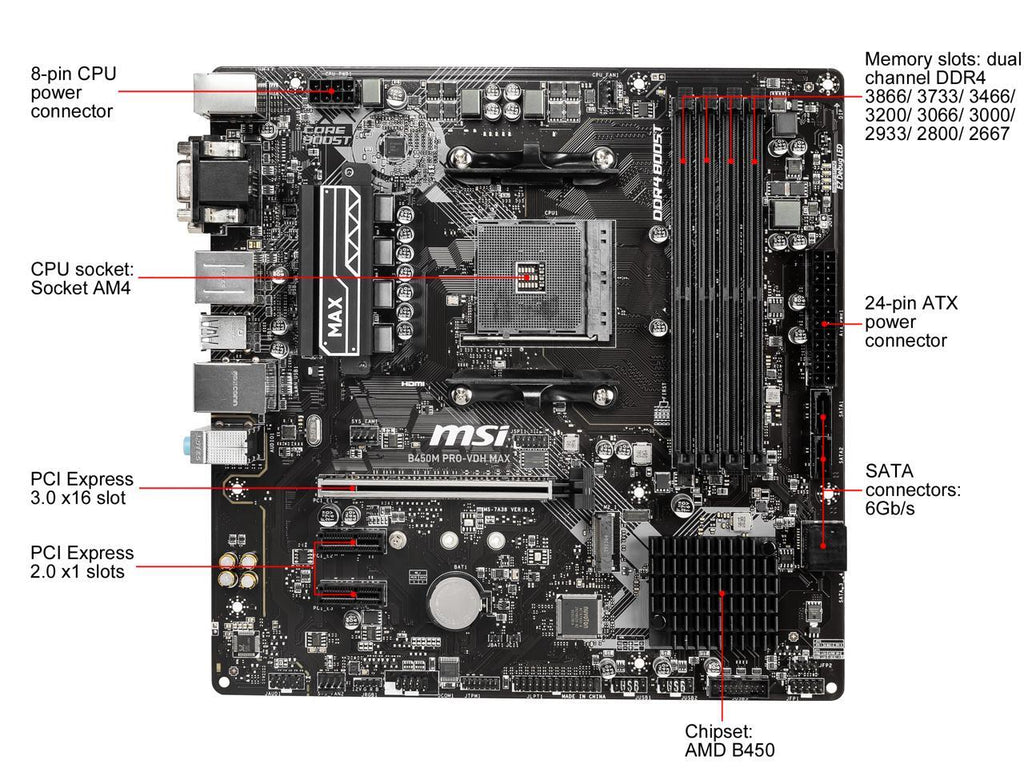

**Supported CPU**
CPU Socket Type	AM4
CPU Type	Supports 1st / 2nd / 3rd Gen AMD Ryzen Processors Supports AMD Ryzen with Radeon Vega Graphics Processors Supports 2nd Gen AMD Ryzen with Radeon Graphics Processors Supports AMD Athlon with Radeon Vega Graphics Processors

**Chipsets**
Chipset	AMD B450

**Memory**
Number of Memory Slots	4×288pin
Memory Standard	DDR4 3866 / 3733 / 3466 / 3200 / 3066 / 3000 / 2933 / 2800 / 2667 (For AMD Ryzen Gen3 (R5/R7/R9), by A-XMP OC MODE) DDR4 3466 / 3200 / 3066 / 3000 / 2933 / 2800 / 2667 (For AMD Other Processors, by A-XMP OC MODE) DDR4 2667 / 2400 / 2133 / 1866 (by JEDEC) * Please refer www.msi.com for more information on compatible memory.
Maximum Memory Supported	128GB
Channel Supported	Dual Channel
ECC Supported	Non-ECC
Buffer Supported	Un-buffered

**Expansion Slots**
PCI Express 3.0 x16	1 x PCI Express 3.0 x16 * Actual support may vary by CPU.
PCI Express x1	2 x PCIe 2.0 x1

**Storage Devices**
SATA 6Gb/s	4 x SATA 6Gb/s
M.2	1 x M.2 slot (Key M): - Supports PCIe 3.0 x4 (1st, 2nd and 3rd Gen AMD Ryzen / Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics) or PCIe 3.0 x2 (Athlon with Radeon Vega Graphics) and SATA 6Gb/s - Supports 2242/2260/2280 storage devices
SATA RAID	0/1/10

**Onboard Video**
Onboard Video Chipset	Supported only by CPU with integrated graphic

Onboard Audio
Audio Chipset	Realtek ALC892/ALC897
Audio Channels	7.1 Channels

**Onboard LAN**
LAN Chipset	Realtek 8111H
Max LAN Speed	10/100/1000Mbps

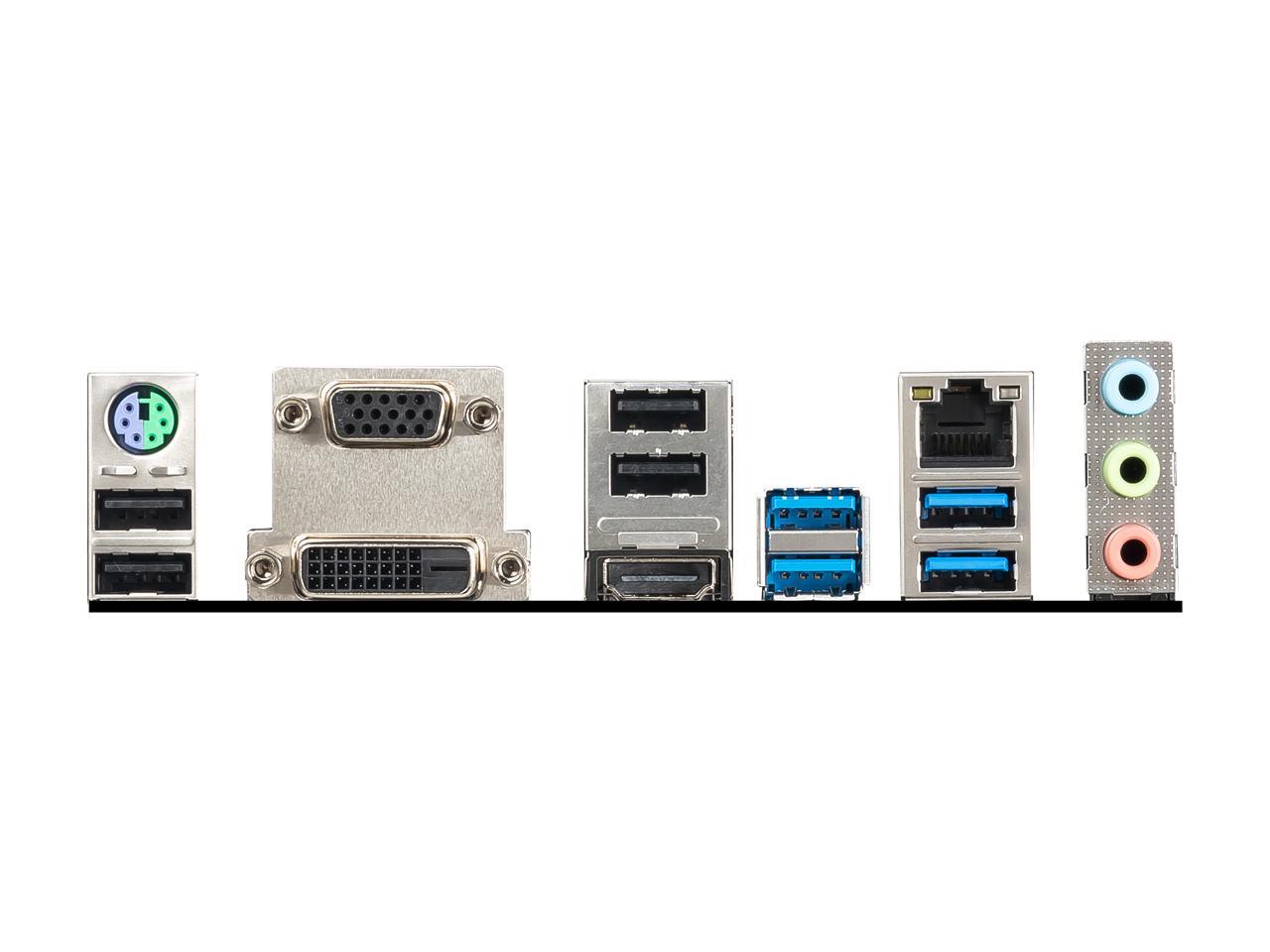

**Rear Panel Ports**
Back I/O Ports	1 x D-Sub 1 x DVI-D 1 x HDMI 1 x LAN (RJ45) 1 x PS/2 Keyboard/Mouse Combo 3 x Audio Jacks 4 x USB 2.0/1.1 4 x USB 3.2 Gen 1

**Internal I/O Connectors**
Onboard USB	2 x USB 2.0 connectors (supports additional 4 USB 2.0 ports) 1 x USB 3.1 Gen1 connector (supports additional 2 USB 3.1 Gen1 ports)
Other Connectors	1 x 4-pin CPU fan connector 2 x 4-pin system fan connectors 1 x Front panel audio connector 2 x Front panel connectors 1 x TPM module connector 1 x Chassis Intrusion connector 1 x Serial port connector 1 x Parallel port connector 1 x RGB LED strip connector 1 x Clear CMOS jumper

**Physical Spec**
Form Factor	Micro ATX
LED Lighting	RGB

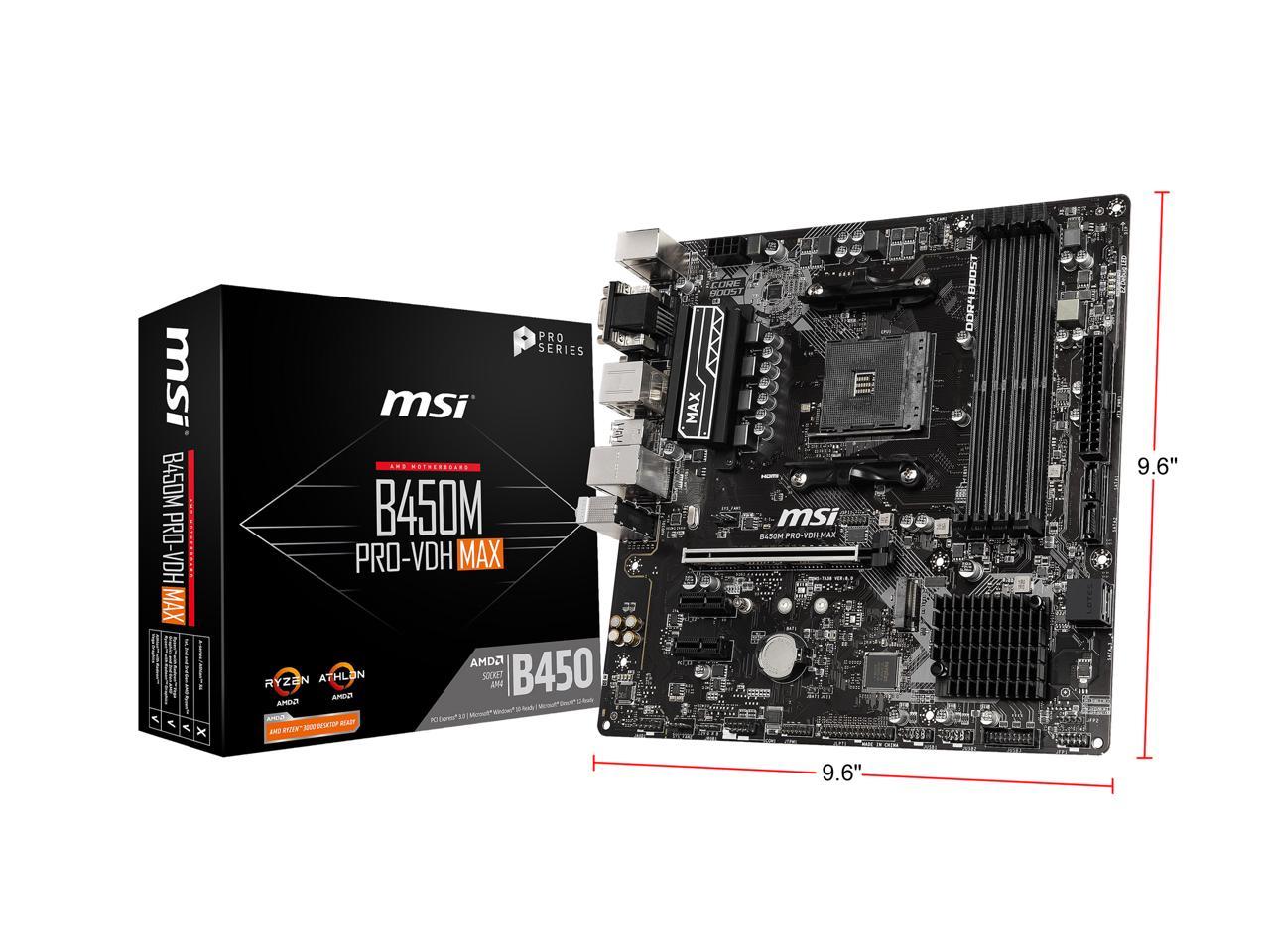

Dimensions (W x L)	9.6" x 9.6"
Power Pin	1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector

**Windows 11 Compatibility**
Windows 11	Supported

**Features**
Features	Supports 1st, 2nd and 3rd Gen AMD Ryzen / Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics / Athlon with Radeon Vega Graphics Desktop Processors for Socket AM4 Supports DDR4 Memory, up to 3466+(OC) MHz Turbo M.2: Running at PCI-E Gen3 x4 maximizes performance for NVMe based SSDs DDR4 Boost: Advanced technology to deliver pure data signals for the best performance and stability Audio Boost: Reward your ears with studio grade sound quality EZ Debug LED: Easiest way to troubleshoot Core Boost: With premium layout and fully digital power design to support more cores and provide better performance PCI-E Steel Armor: Protecting VGA cards against bending and EMI

Specifications :

General Information

Manufacturer	MSI
Manufacturer Part Number	B450M PRO-VDH MAX
Manufacturer Website Address	http://www.msi.com
Brand Name	MSI
Product Series	PRO
Product Model	B450M PRO-VDH MAX
Product Name	B450M PRO-VDH MAX Desktop Motherboard
Product Type	Desktop Motherboard
UPC	824142194430
