Description
Description :

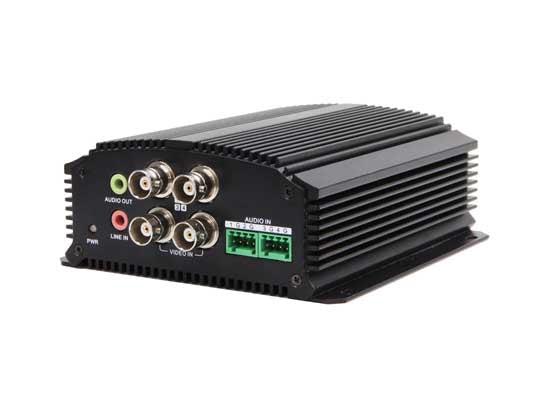

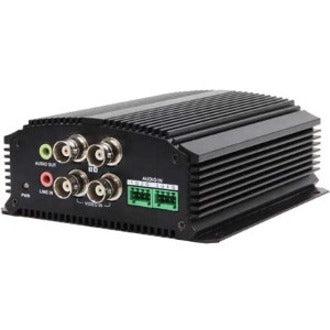

4-Channel, BNC, 10 / 100 Mbps LAN, 1 x RS-232, 1 x RS-485, Alarm In, Alarm Out, MicroSDHikvision Digital Technology DS-6704HFI. Maximum video resolution: 4CIF, Maximum frame rate: 30 fps, Video compression formats: H.264,M-JPEG,MPEG2,MPEG4. Supported network protocols: IPv4/v6, HTTP, HTTPS, QoS layer3 DiffServ, FTP, SMTP, Bonjour, UPnPTM, SNMPv1/v2c/v3(MIB-II), DNS,..., Copper ethernet cabling technology: 100BASE-TX,10BASE-T. Power consumption (typical): 7 W, Power requirements: 12 VDC / PoE. Dimensions (WxDxH): 80 x 39 x 90 mm, Weight: 500 g
Features:
- H.264/MPEG4/MPEG2/MJPEG encoding standards supported
- Up to 4CIF real-time encoding
- One PoE network interface for DS-6701/6704HFI models
- Connectable with network HDD in NAS, IPSAN mode
- Support multiple network protocols, including IPv4/v6, HTTP, HTTPS, QoS layer3 DiffServ,
- FTP, SMTP, Bonjour, UPnP, SNMPv1/v2c/v3, OnVIF, PSIA, SOCKSv4/v5, etc.;
- Multiple PTZ protocols
