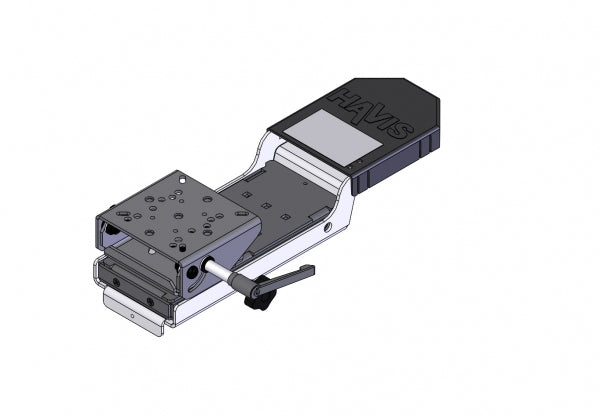

Havis C-MD-117 mounting kit

Description :

Long Stationary Arm with Motion Device and Tilt Swivel

Havis C-MD-117

Long stationary arm with motion device and tilt swivel
Recommended for the fire market or any application where a longer overall length and slide function would be desired
Drop down design allows for easier operation when mounted to the typical high fire truck or large commercial vehicle dash
No horizontal rotation
Slide out extension of up to 5.00"
Slide locking handle can be installed on either left or right side
Slide tension easily adjusted with hand tools, no disassembly required
Includes tilt/swivel motion adapter that can provide up to 180 degrees of rotation and 90 degrees of tilt for laptops, tablets, see C-MD-202 page for additional information
Ruggedized design protects occupants and equipment
Works with C-HDM-133, C-HDM-134 and C-HDM-135 heavy duty base mount allowing adjustable downward tilt for dash mounting (sold separately)
Mounting pattern: three ¼" holes in a triangular pattern on a 2-7/8" diameter circle and four ¼" holes in a 2" x 2" pattern
Dimensions: 14.9" length, 19.9" max length, 4.5" wide, 3.5" high
Material: heavy-gauge steel for rugged durability with black powder coat for anti-glare and rust prevention
Gross Weight: 11.00 lbs
Abbreviated Product Description:
ACTADP, HDM, SLIDE, TS, SP
