Havis C-MD-116 mounting kit

SKU: C-MD-116

Regular price $330.08
Regular price Sale price $330.08
Sale Sold out
Shipping calculated at checkout.
          Que. & Ans.

          Description :

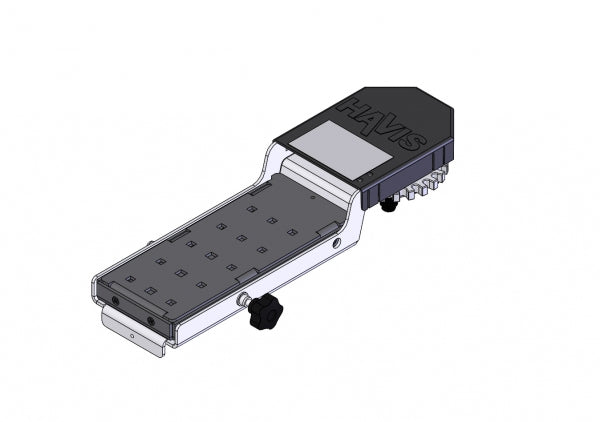

          Long Swing Arm with Motion Device

          Havis C-MD-116

          Long swing arm with motion device
          Recommended for the fire market or any application where a longer overall length and slide function would be desired
          Drop down design allows for easier operation when mounted to the typical high fire truck or large commercial vehicle dash
          Front access control lever allowing for easy operation of entire arm rotation, and offering ergonomically supreme function
          Ideal for computer usage from both the driver and front passenger seats
          Horizontal rotation provides customized viewing angle
          Swing arm has locking points every 15 degrees of rotation to maximize placement options
          Slide out extension of up to 5.00"
          Slide locking handle can be installed on either left or right side
          Rotation and slide tension easily adjusted with hand tools, no disassembly required
          Ruggedized design protects occupants and equipment
          Works with C-HDM-133, C-HDM-134 and C-HDM-135 heavy duty base mount allowing adjustable downward tilt for dash mounting (sold separately)
          Works with C-HDM-200 Series pole (sold separately)
          Mounting pattern: 4 holes @ 2.125" square (1/4" Mounting hardware provided)
          Dimensions: 14.9" length, 19.9" max length, 4.5" wide, 3.5" high
          Material: heavy-gauge steel for rugged durability with black powder coat for anti-glare and rust prevention
          Gross Weight: 11.00 lbs
          Abbreviated Product Description:
          ACTADP, HDM, SLIDE, SP
