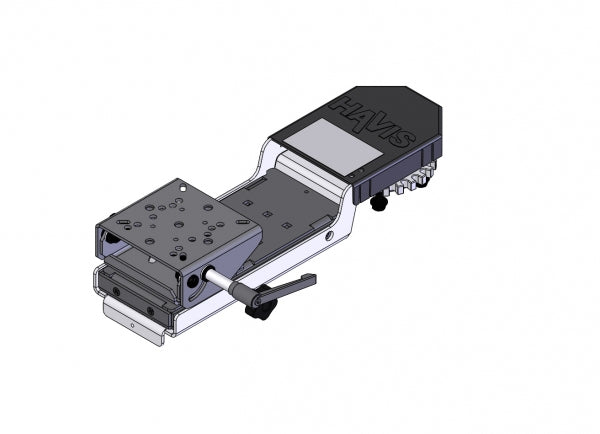

Havis C-Md-115 Mounting Kit

Description :

Long Swing Arm with Motion Device and Tilt/Swivel Mount

Havis C-MD-115

Long swing arm with motion device and tilt/swivel mount
Recommended for the fire market or any application where a longer overall length and slide function would be desired
Drop down design allows for easier operation when mounted to the typical high fire truck or large commercial vehicle dash
Front access control lever allowing for easy operation of entire arm rotation, and offering ergonomically supreme function
Ideal for computer usage from both the driver and front passenger seats
Horizontal rotation provides customized viewing angle
Swing arm has locking points every 15 degrees of rotation to maximize placement options
Slide out extension of up to 5.00"
Includes tilt/swivel motion adapter that can provide up to 180 degrees of rotation and 90 degrees of tilt for laptops, tablets, see C-MD-202 page for additional information
Locking handles provided for both slide and tilt functions. slide locking handle can be installed on either left or right side
Rotation and slide tension easily adjusted with hand tools, no disassembly required
Ruggedized design protects occupants and equipment
Works with C-HDM-133, C-HDM-134 and C-HDM-135 heavy duty base mount allowing adjustable downward tilt for dash mounting (sold separately)
Works with C-HDM-200 Series pole (sold separately)
Mounting pattern: 4 holes @ 2.125" square (1/4" Mounting hardware provided)
Dimensions: 14.9" length, 19.9" max length, 4.5" wide, 3.5" high
Material: heavy-gauge steel for rugged durability with black powder coat for anti-glare and rust prevention
Gross Weight: 11.00 lbs
Abbreviated Product Description:
ACTADP, HDM, SLIDE, TS, SP
