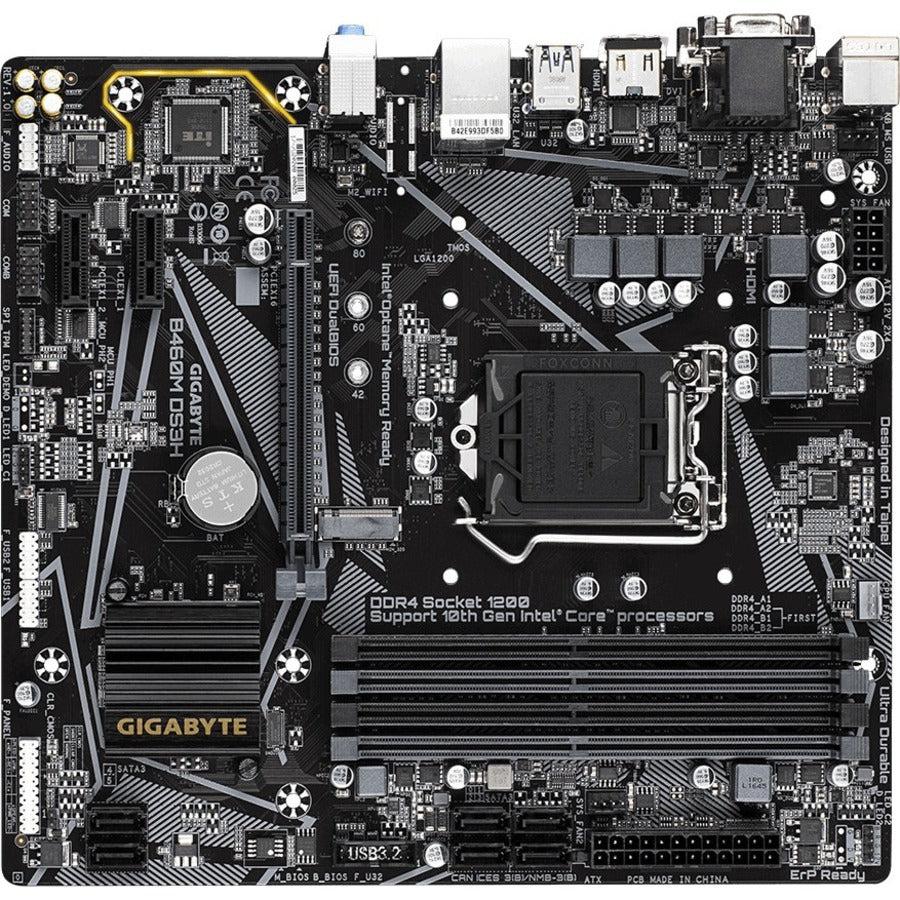

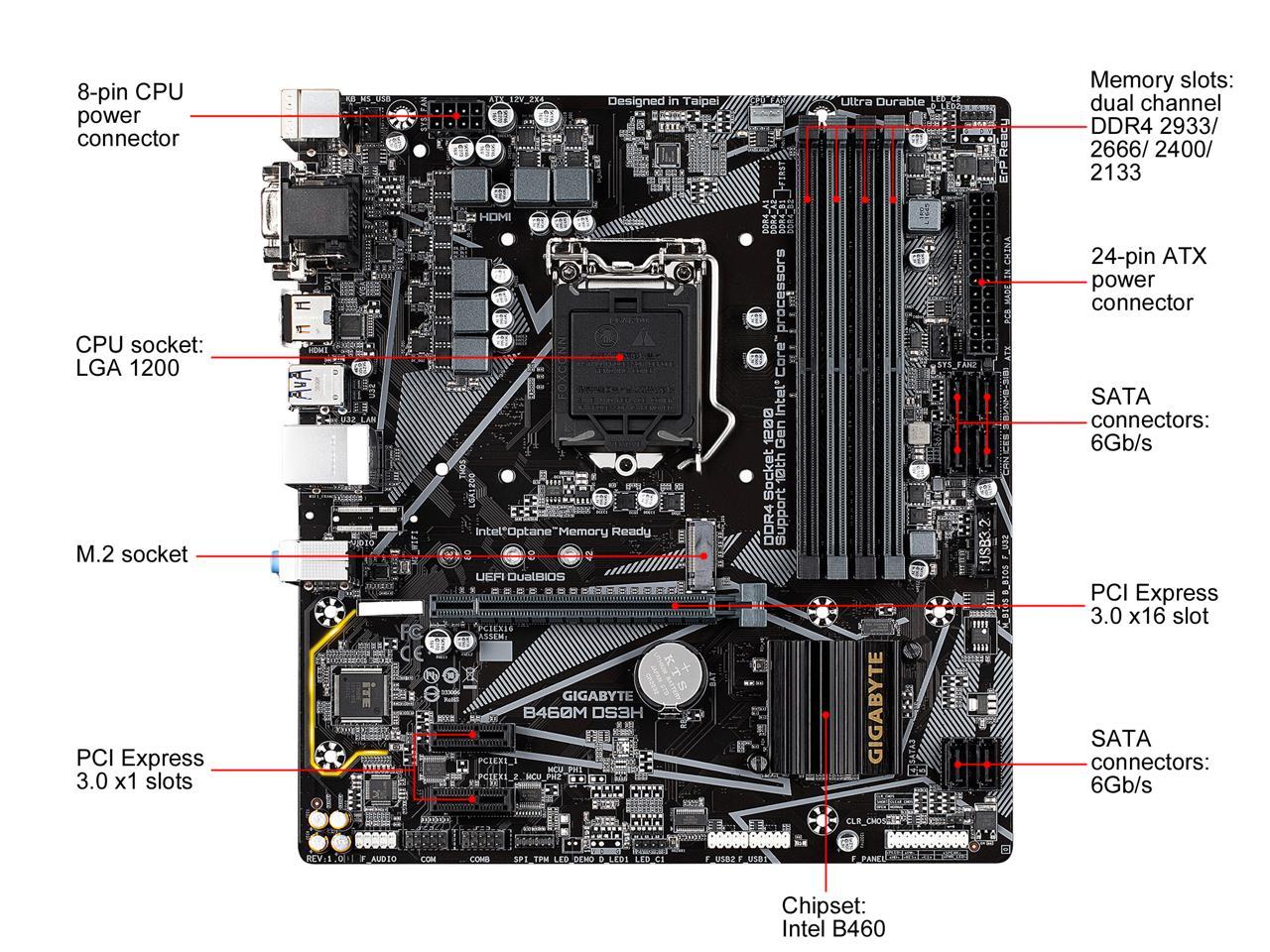

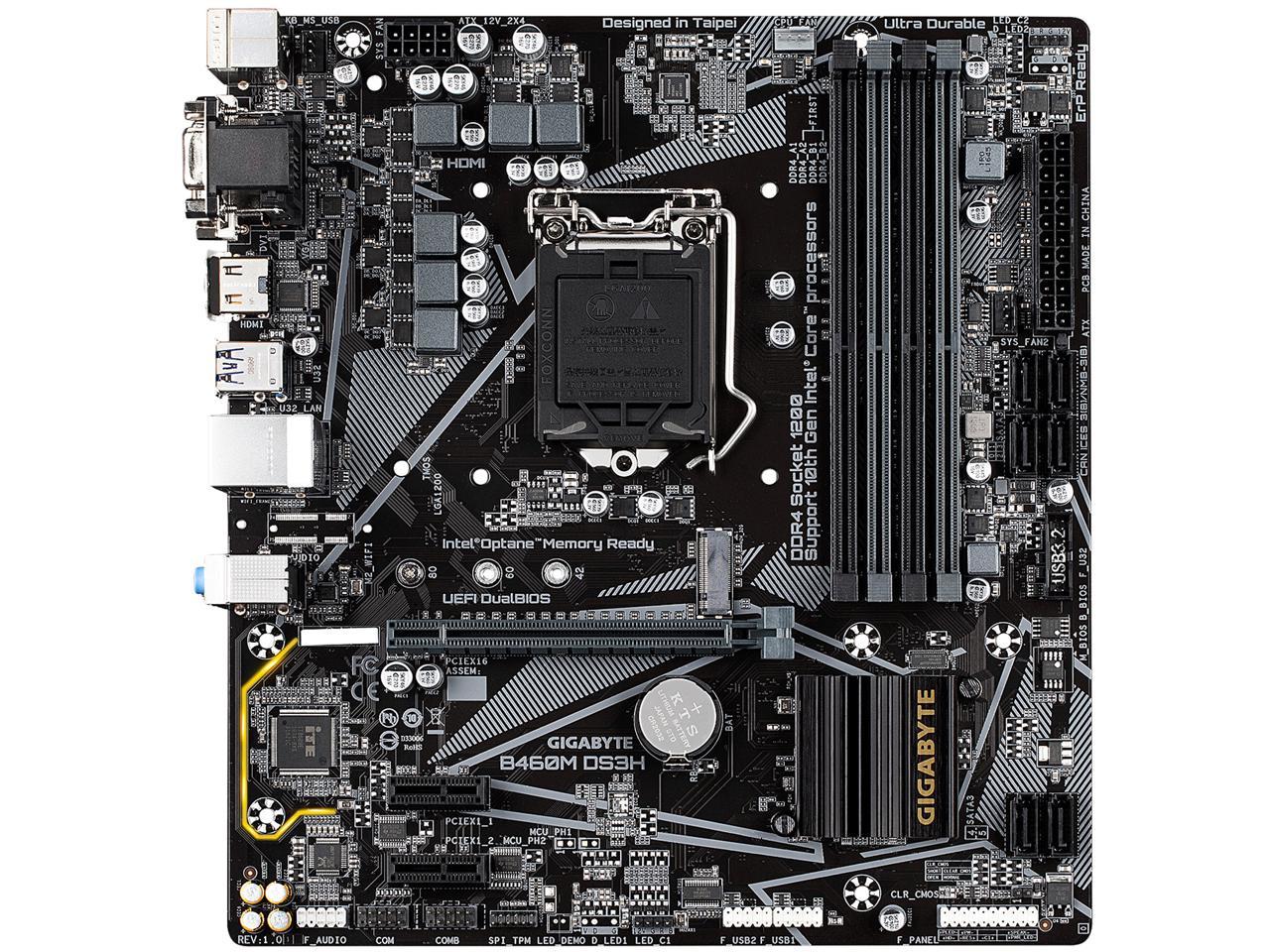

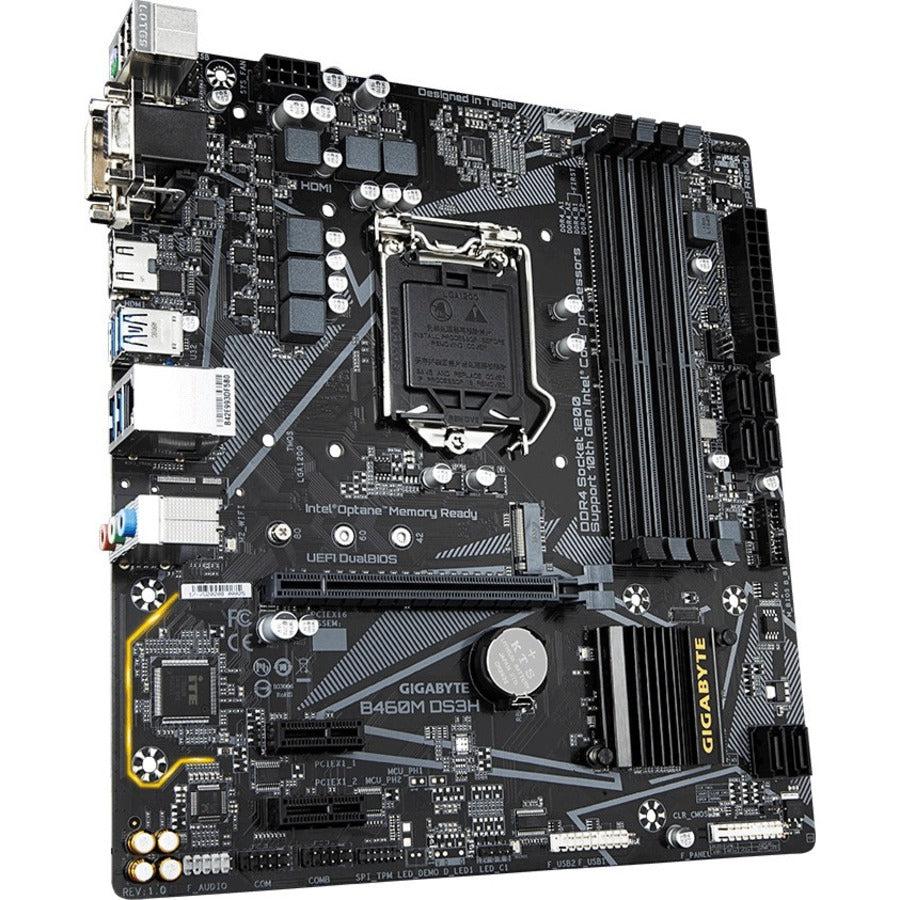

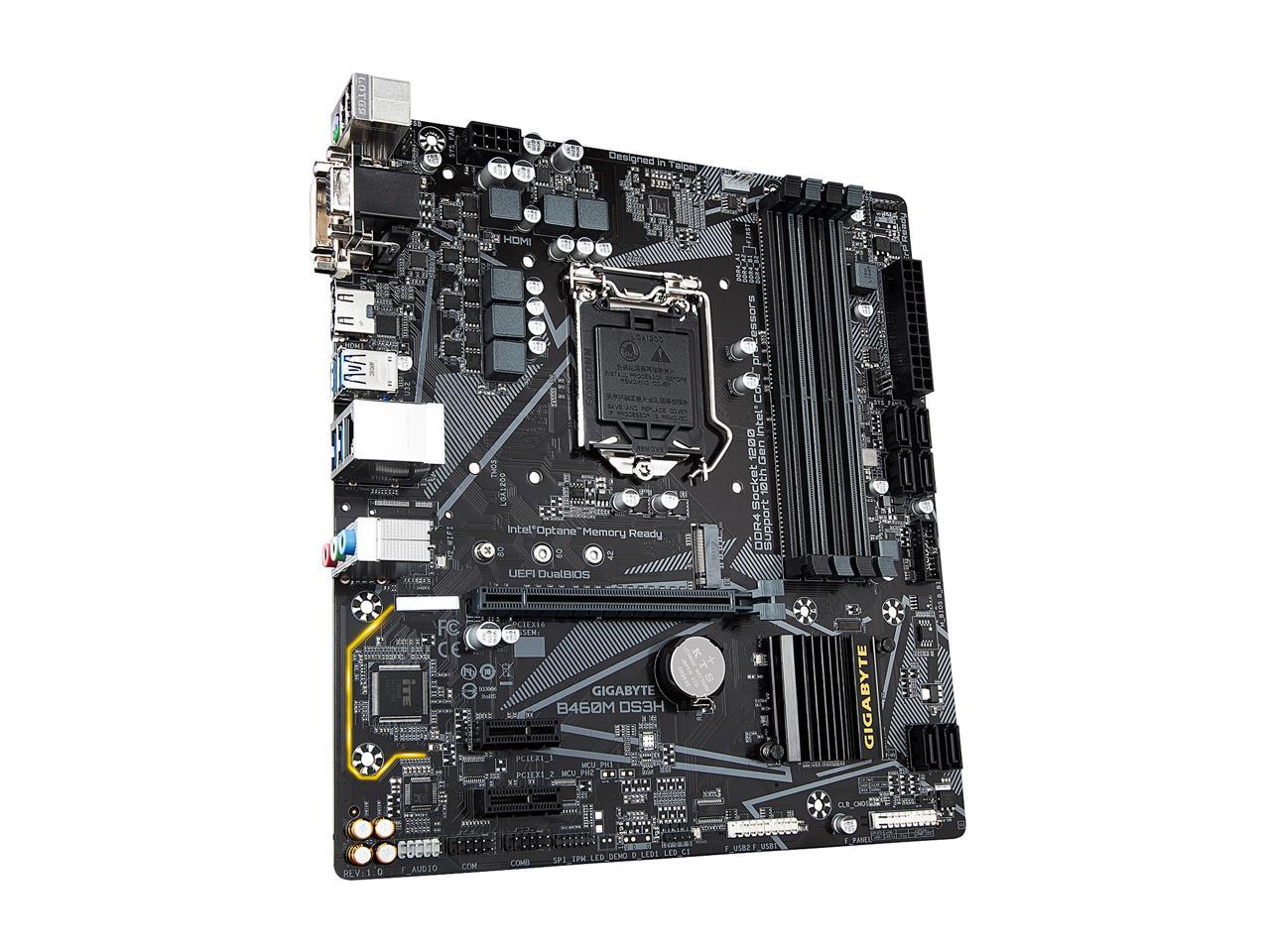

Gigabyte B460M Ds3H Lga 1200 Intel B460 Micro-Atx Motherboard With M.2, Sata 6Gb/S, Usb 3.2 Gen 1

SKU: B460M DS3H

$119.99
$119.99
Sale Sold out
Shipping calculated at checkout.
          Description
          Que. & Ans.
          Reviews

          Description :

          • Supports 10th Gen Intel Core Processors
          • Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs

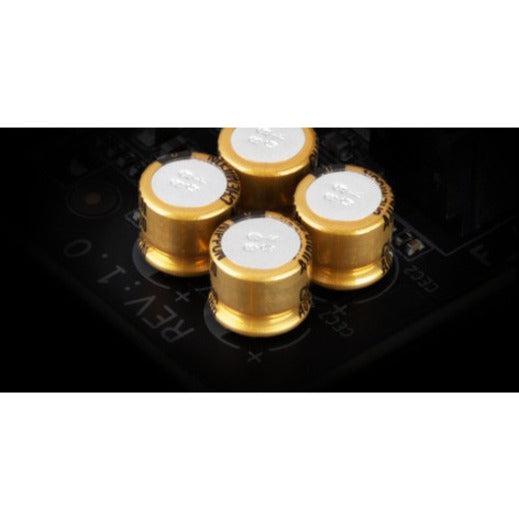

          • High Quality Audio Capacitors and Audio Noise Guard with LED Trace Path Lighting
          • Ultra-Fast M.2 with PCIe Gen3 X4 & SATA Interface

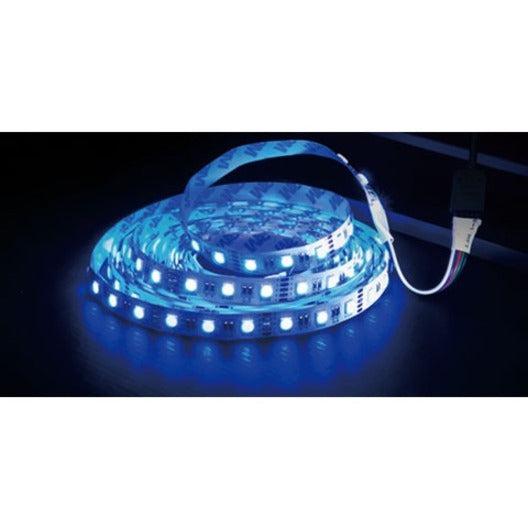

          • RGB FUSION supports RGB LED Strips in 7 Colors
          • GIGABYTE Exclusive 8118 Gaming LAN with Bandwidth Management
          • Smart Fan 5 features Multiple Temperature Sensors
          • Hybrid Fan Headers with FAN STOP
          • Anti-Sulfur Resistors Design
          • Ultra Durable 15KV Surge LAN Protection

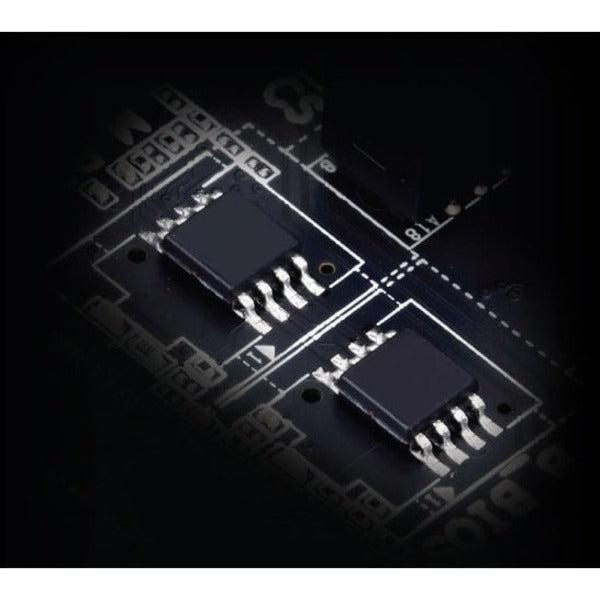

          • GIGABYTE UEFI DualBIOS
          • Intel Optane Memory ReadySupports 10th Gen Intel Core Processors
          • Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs
          • High Quality Audio Capacitors and Audio Noise Guard with LED Trace Path Lighting
          • Ultra-Fast M.2 with PCIe Gen3 X4 & SATA Interface
          • RGB FUSION supports RGB LED Strips in 7 Colors
          • GIGABYTE Exclusive 8118 Gaming LAN with Bandwidth Management
          • Smart Fan 5 features Multiple Temperature Sensors
          • Hybrid Fan Headers with FAN STOP
          • Anti-Sulfur Resistors Design
          • Ultra Durable 15KV
          Best Seller Ranking #6 in
          Model
          Brand GIGABYTE
          Series Ultra Durable
          Model B460M DS3H
          Supported CPU
          CPU Socket Type  LGA 1200
          CPU Type Support for 10th Generation Intel Core i9/i7/i5/i3 processors / Intel Pentium processors / Intel Celeron processors in the LGA1200 package
          Chipsets
          Chipset  Intel B460
          Onboard Video
          Onboard Video Chipset  Integrated Graphics Processor-Intel HD Graphics support:

          1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz
          1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz
          * The DVI-D port does not support D-Sub connection by adapter.
          1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz
          * Support for HDMI 1.4 version and HDCP 2.3.

          Support for up to 3 displays at the same time
          Maximum shared memory of 512MB
          Memory
          Number of Memory Slots 4×288pin
          Memory Standard Intel Core i9/i7 processors:
          Support for DDR4 2933/ 2666/ 2400/ 2133 MHz
          Intel Core i5/i3/ Pentium/Celeron processors:
          Support for DDR4 2666/ 2400/ 2133 MHz
          Maximum Memory Supported 128GB
          Channel Supported  Dual Channel
          Expansion Slots
          PCI Express 3.0 x16 1 x PCI Express x16 slot, running at x16 (PCIEX16)
          PCI Express x1 2 x PCI Express x1 slots
          (All of the PCI Express slots conform to PCI Express 3.0 standard.)
          Storage Devices
          SATA 6Gb/s  6 x SATA 6Gb/s

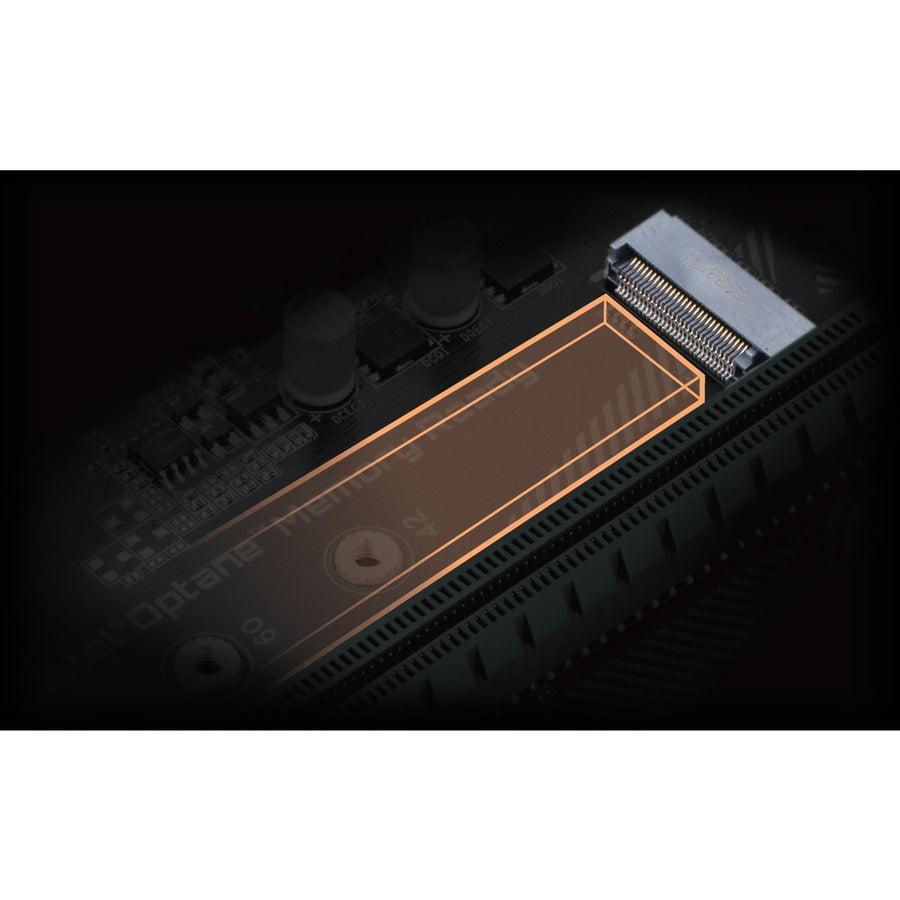

          M.2 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x4/x2 SSD support)
          Intel Optane Ready Yes
          SATA RAID 0/1/5/10
          Onboard Audio
          Audio Chipset  Realtek ALC887
          Audio Channels  2/4/5.1/7.1-channel
          * To configure 7.1-channel audio, you need to open the audio software and select Device advanced settings > Playback Device to change the default setting first. Please visit GIGABYTE's website for details on configuring the audio software.
          Onboard LAN
          LAN Chipset Realtek GbE LAN chip
          Max LAN Speed 10/100/1000Mbps

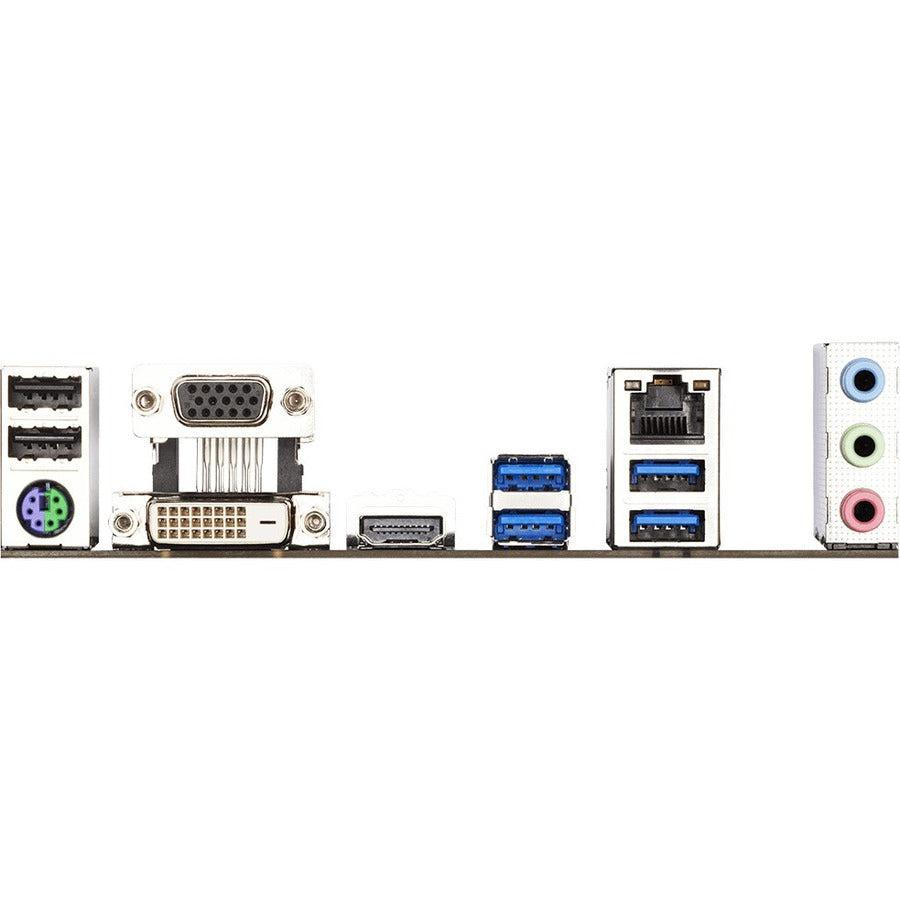

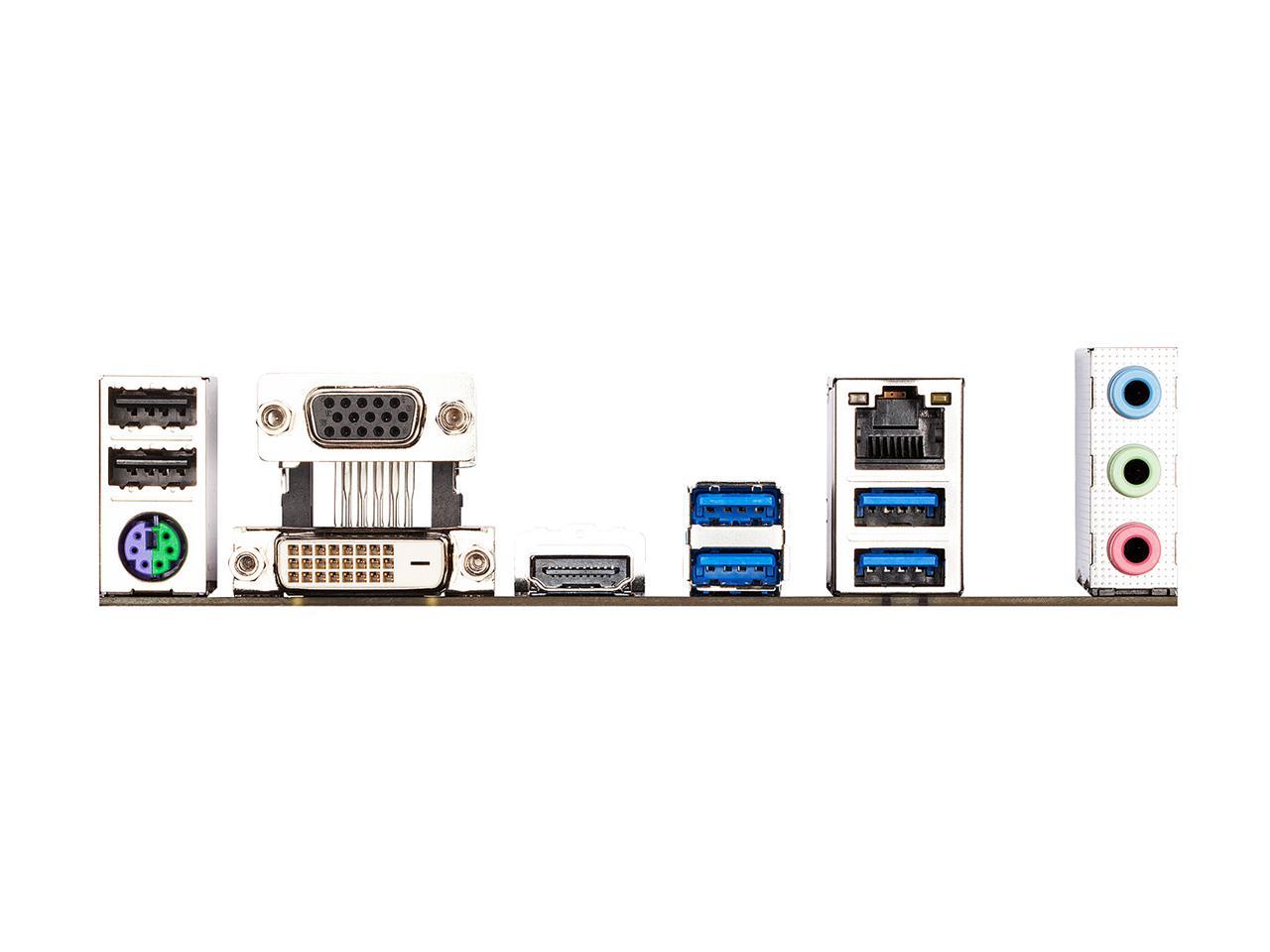

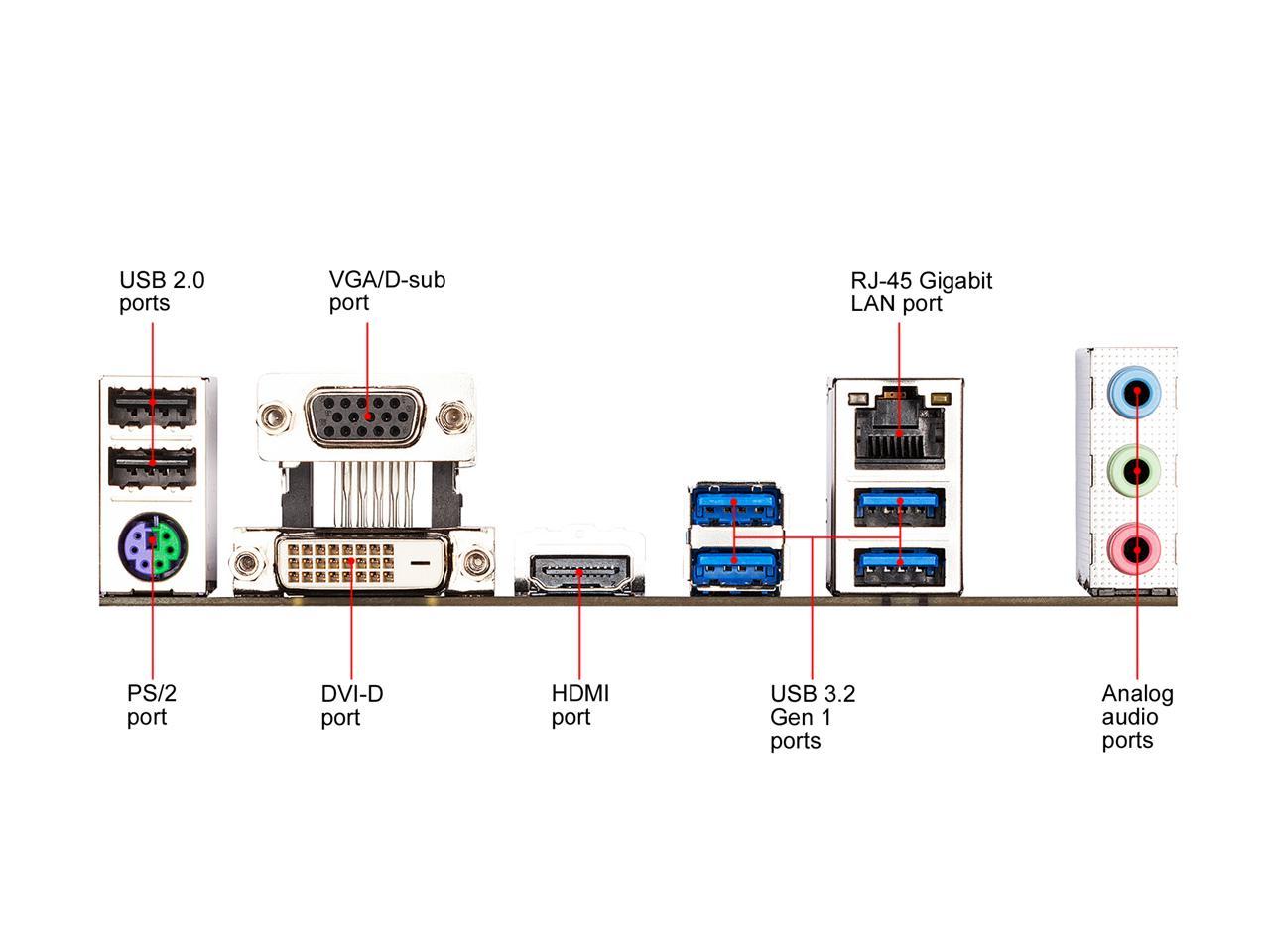

          Rear Panel Ports
          Back I/O Ports 1 x PS/2 keyboard/mouse port
          1 x D-Sub port
          1 x DVI-D port
          1 x HDMI port
          4 x USB 3.2 Gen 1 ports
          2 x USB 2.0/1.1 ports
          1 x RJ-45 port
          3 x audio jacks
          Internal I/O Connectors
          Onboard USB 1 x USB 3.2 Gen 1 header
          2 x USB 2.0/1.1 headers
          Other Connectors 1 x CPU fan header
          2 x system fan headers
          2 x RGB LED strip headers
          1 x front panel header
          1 x front panel audio header
          1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
          2 x serial port headers
          1 x Clear CMOS jumper
          Physical Spec
          Form Factor Micro ATX
          LED Lighting RGB

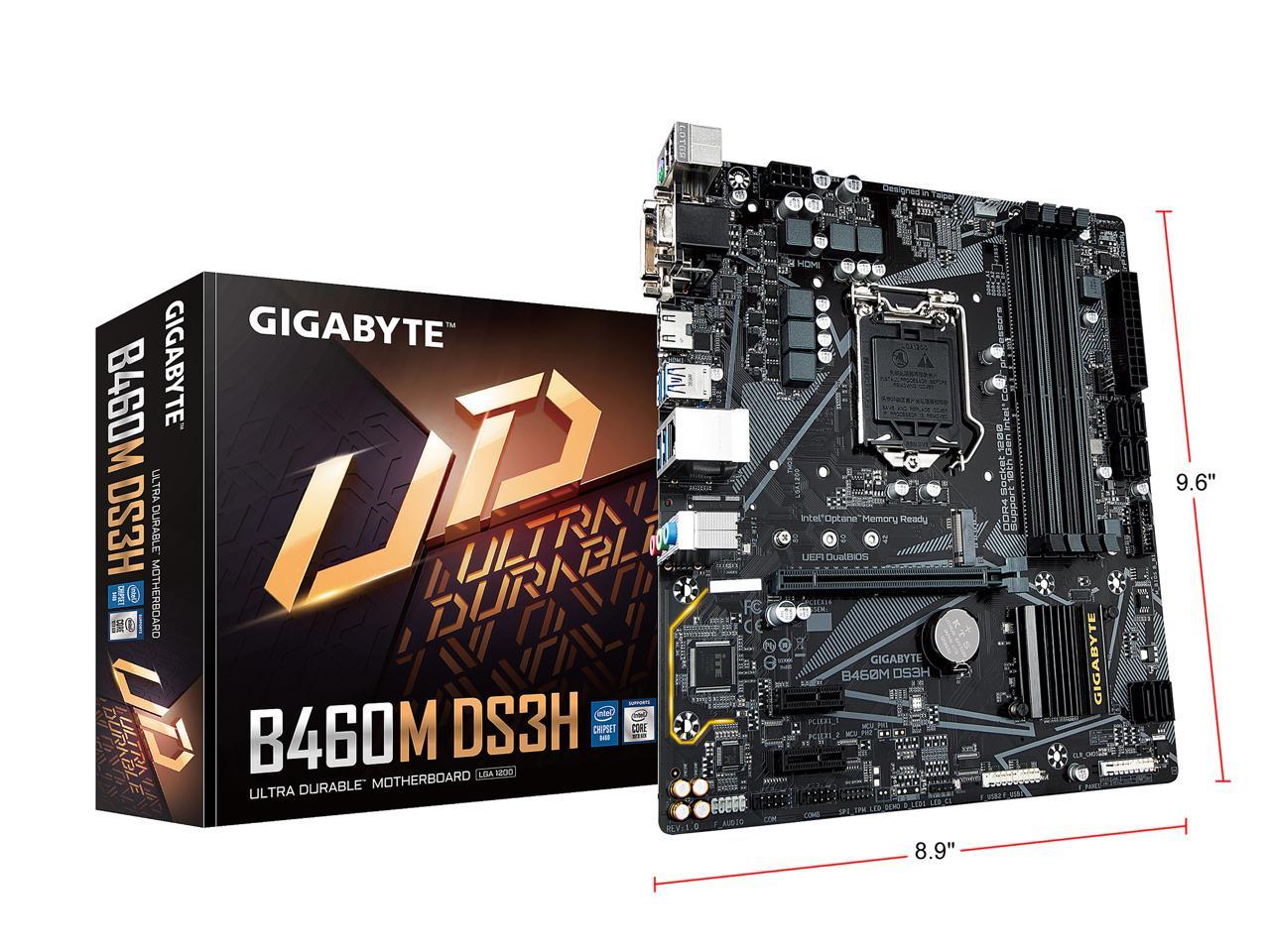

          Dimensions (W x L) 9.6" x 8.9"
          Power Pin 1 x 24-pin ATX main power connector
          1 x 8-pin ATX 12V power connector
          Features
          Features I/O Controller:
          iTE I/O Controller Chip

          H/W Monitoring:
          Voltage detection
          Temperature detection
          Fan speed detection
          Overheating warning
          Fan fail warning
          Fan speed control
          * Whether the fan speed control function is supported will depend on the fan you install.

          BIOS:
          2 x 128 Mbit flash
          Use of licensed AMI UEFI BIOS
          Support for DualBIOS
          PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

          Unique Features:
          Support for APP Center
          * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
          @BIOS
          EasyTune
          Fast Boot
          Game Boost
          ON/OFF Charge
          Ambient LED
          Smart Backup
          System Information Viewer
          Support for Q-Flash
          Support for Xpress Install

          Bundled Software:
          Norton Internet Security (OEM version)
          Realtek 8118 Gaming LAN Bandwidth Control Utility

          Operating System:
          Support for Windows 10 64-bit
