CyberPower Switched ATS PDU PDU24005 10-Outlets PDU PDU24002

Description :

CyberPower Switched ATS PDU PDU24005 10-Outlets PDU

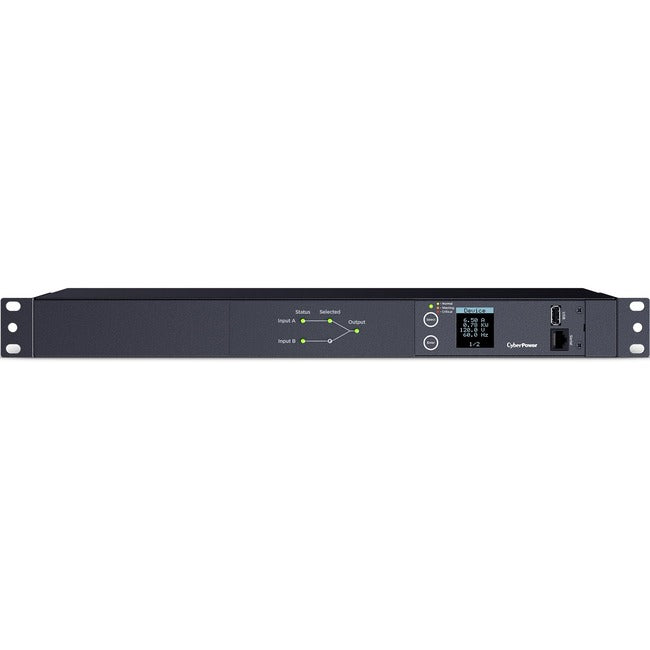

Ensure continued operation of critical devices with the CyberPower PDU24002 Metered ATS PDU. Ideal for data centers and network closets, this unit provides power redundancy to single-corded connected equipment. If power for the primary source exceeds the lower or upper thresholds, or if power fails, the PDU will switch to the secondary power source to ensure continuous operation. The PDU will switch back to the primary power source when incoming power becomes stable.

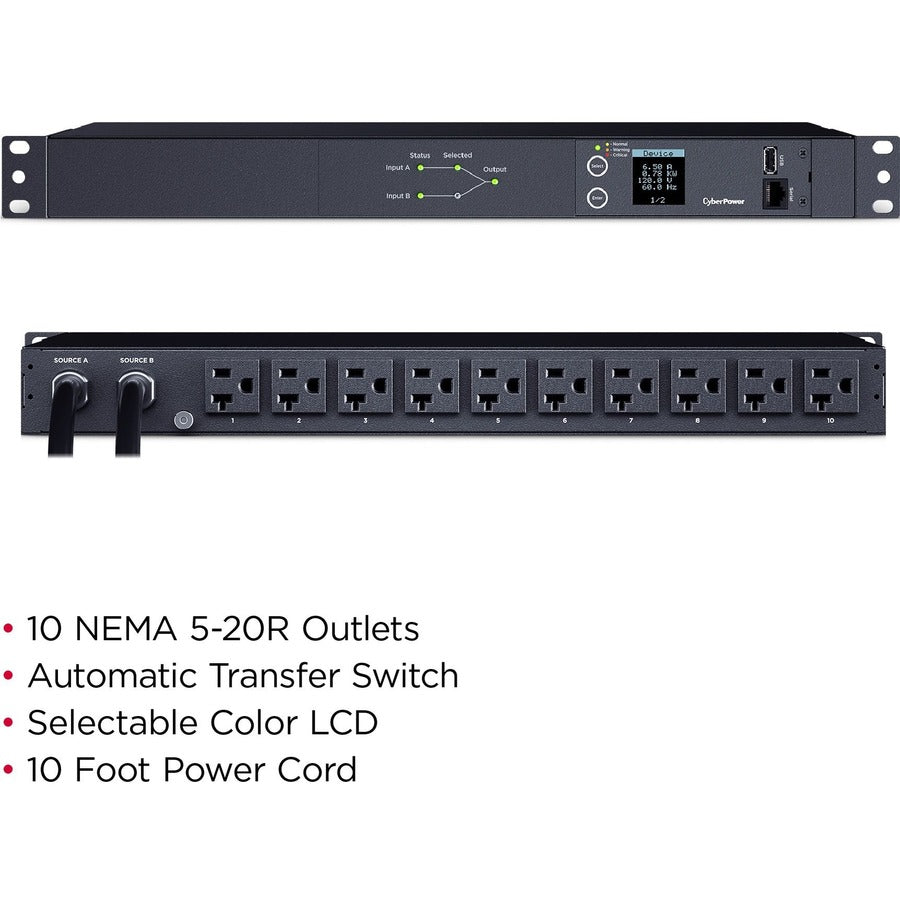

The PDU24002 supports inputs between 100-120V and includes (10) NEMA 5-20R outlets. Dual NEMA L5-20P (L5-20P to non-locking 5-20P adpaters included) power cords are plugged into separate power sources (A and B), and information about each power source is provided via LED indicator lights on the front of the unit. Other features include an LCD with selectable background color, ugradeable firmware, and network-grade plugs and outlets. The CyberPower PDU24002 is protected by a three-year limited warranty.

• Phase: Single


• Amps: 20A (Derated to 16A)


• Volts: 100-120V


• Frequency: 50/60Hz


• Plug type: 2 x NEMA L5-20P (L5-20P to 5-20P adapter included)


• Outlets: 10 x NEMA 5-20R

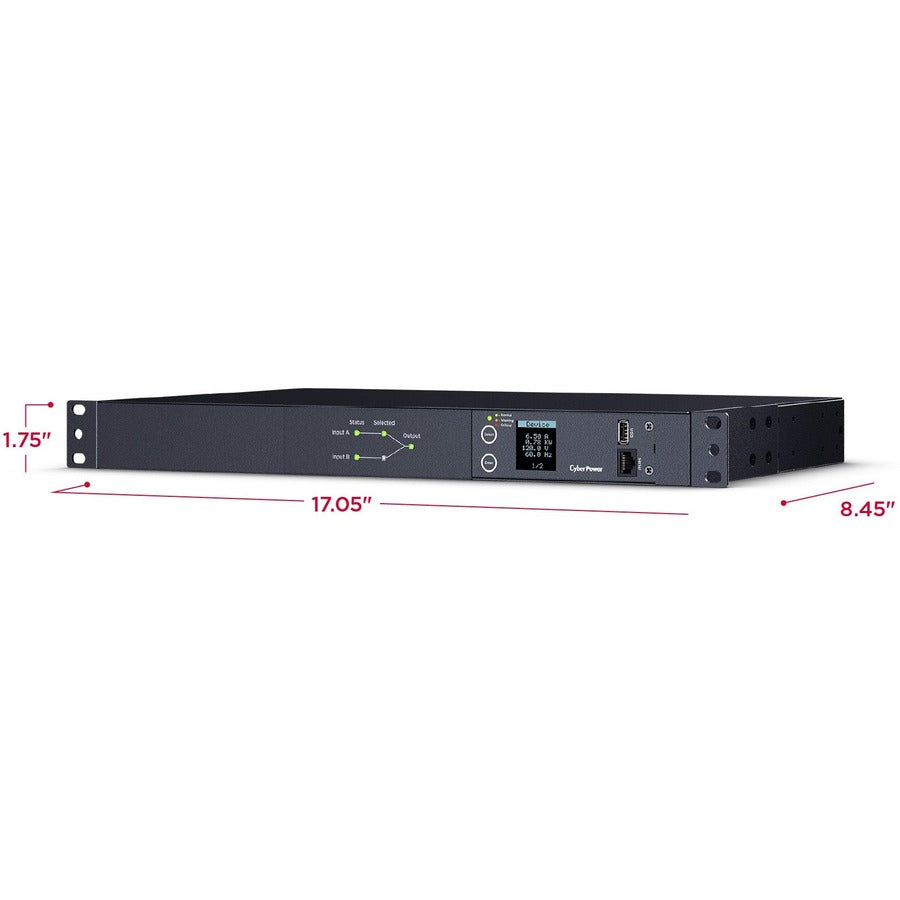

• Size: 1U Rackmount


• Warranty: 3 year

Product Type: PDU
Environmentally Friendly: Yes
Environmental Certification: RoHS
Mounting Orientation: Horizontal
Product Color: Black
Product Series: Metered ATS PDU
Rack Height: 1U
Brand Name: CyberPower
Manufacturer: CyberPower Systems, Inc
Product Model: PDU24002
Product Name: Switched ATS PDU PDU24005 10-Outlets PDU
Mount Type: Rack-mountable
Manufacturer Part Number: PDU24002
Manufacturer Website Address: http://www.cyberpowersystems.com
Package Contents:

• Switched ATS PDU PDU24005 10-Outlets PDU
• L5-20P to non-locking 5-20P Adapter
