CyberPower

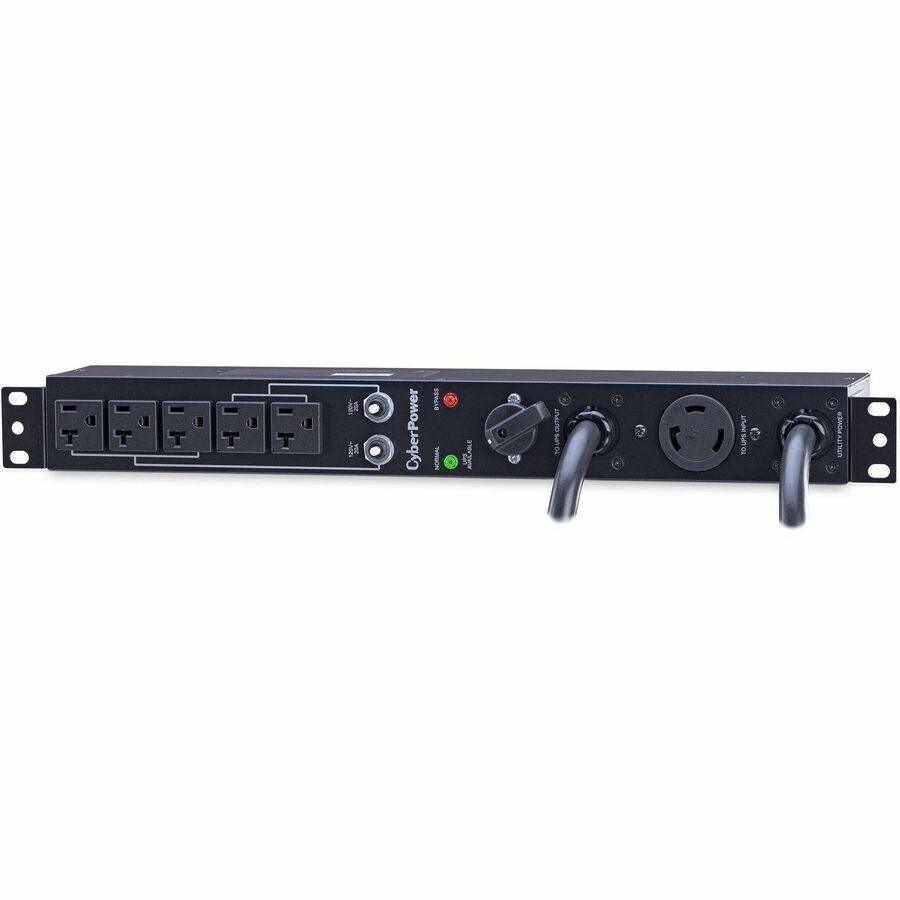

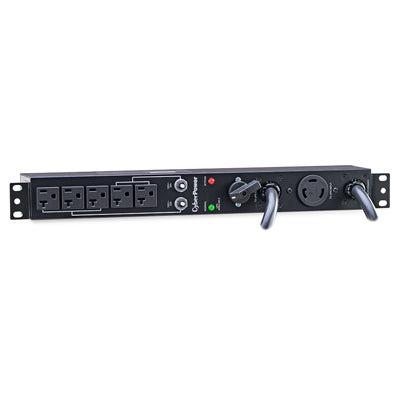

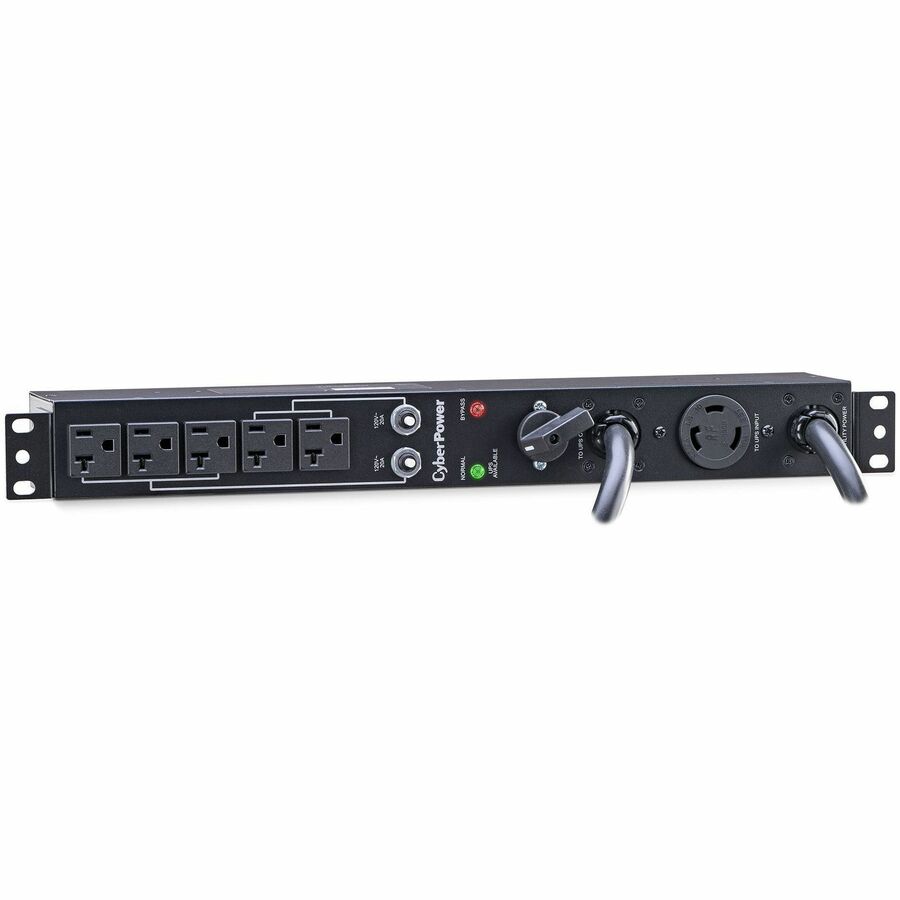

Cyberpower Mbp30A5 Power Distribution Unit (Pdu) 5 Ac Outlet(S) 1U Black

SKU: MBP30A5

Regular price $240.98
Regular price Sale price $240.98
Sale Sold out
Shipping calculated at checkout.
          Description
          Que. & Ans.
          Reviews

          Description :

          30A, 100 - 120 V, NEMA L5-30P/L5-30R

          CyberPower MBP30A5. Rack capacity: 1U, Housing material: Steel, Product colour: Black. AC outlets quantity: 5 AC outlet(s), AC outlet types: NEMA 5–20R, Power plug: NEMA L5-20P. Cable length: 1.82 m, Certification: UL60950_1, cUL. Nominal input voltage: 100 - 120 V, Maximum current: 30 A, Nominal output voltage: 120 V. Dimensions (WxDxH): 431.8 x 76.2 x 50.8 mm, Weight: 2.7 kg

          The CyberPower MBP30A5, a 5-outlet (rear), 1U Maintenance Bypass Power Distribution Unit (MBP PDU), provides 100-120 VAC 30A output (derated to 24A) to 5 NEMA 5-20R receptacles. Designed for datacenters and other electrically demanding applications, the MBP30A5 allows the seamless transfer of an electrical load from UPS power to utility power for uninterrupted operation of connected equipment when performing maintenance, replacing batteries, or installing a new UPS.

          A 6-foot AC cord connects to utility power; a 3.3-foot AC cord connects to the output power of the UPS. The UPS draws input power from the MBP30A5 through a dedicated NEMA L5-30R separate from the outlets for connected devices. When the switch on the front of the MBP30A5 is turned from Normal to Bypass, or from Bypass to Normal, the power that the MBP supplies to connected devices moves from one input power source to another. The LED display indicates which power source is active.

          Rugged, industrial-grade metal housing protects the MBP30A5. With a 1U form factor, this PDU can be mounted in a standard server rack. Its mounting hardware also enables it to be connected to a UPS for tower configurations. The MBP30A5 is UL and RoHS compliant. A three-year limited warranty covers the PDU for three years and connected equipment for as long as you own the product.

          Power Distribution
          Delivers AC power to servers, equipment, and connected devices via a power distribution unit.

          Maintenance Bypass
          Qualified personnel can use the bypass feature to disconnect the PDU from the UPS without disrupting power to connected equipment. This feature allows connected equipment to operate seamlessly during maintenance periods, battery replacement, or UPS installation.

          Manual Bypass Switch
          When the Manual Bypass Switch is turned to Normal, connected equipment is supplied by UPS output. When the Manual Bypass Switch is turned to Bypass, connected equipment is supplied by utility power.

          Network-Grade Plugs and Outlets
          Highly durable construction ensures the efficient distribution of power in demanding IT or industrial environments to servers, equipment, and connected devices.

          1U Form Factor & Mounting Hardware
          The 1U form factor is made to be mounted in a standard server rack. Mounting hardware allows the PDU to be connected to a UPS for tower configurations.

          Durable Metal Housing
          Protects internal components and resists damage from impact or abrasions within challenging industrial environments. Also extends the life of the product.

          Three-Year Limited Warranty
          Covers defects in materials and workmanship in the product under normal use and conditions. See warranty for details.
