Description :

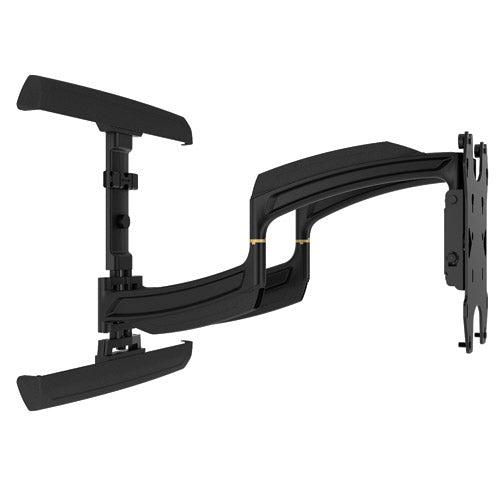

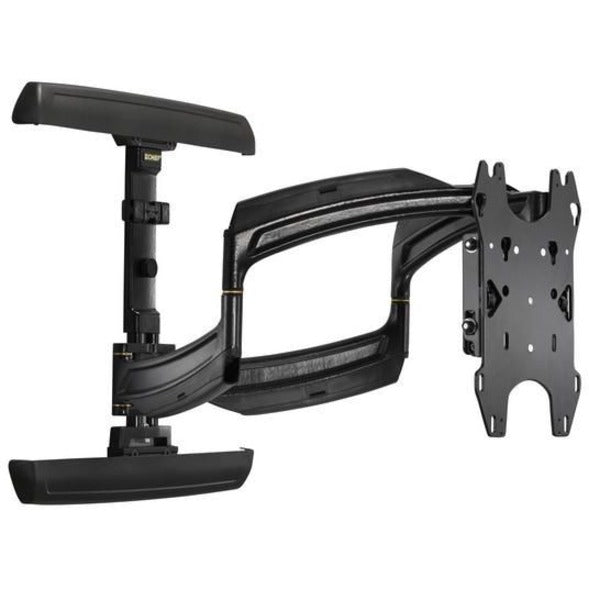

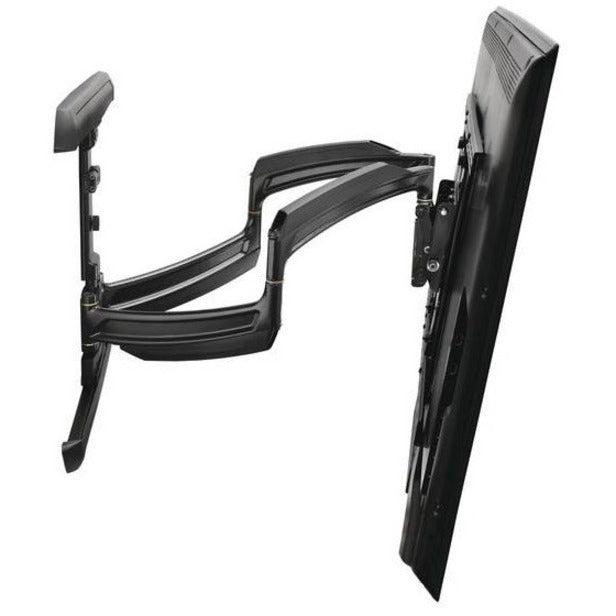

Large THINSTALL Dual Swing Arm Wall Display Mount - 25" ExtensionChief TS525TU. Maximum weight capacity: 56.7 kg, Minimum screen size: 94 cm (37"), Maximum screen size: 147.3 cm (58"), Minimum VESA mount: 100 x 100 mm, Maximum VESA mount: 800 x 400 mm. Tilt angle range: -15 - 15°. Product colour: Black
A lightweight, low-profile full-motion wall display mount for TVs 37-58". Easily installs with one person by mounting the top rail and sliding on the assembl.
- Ultra Low Profile Sleek design collapses to 1.5" (38 mm), providingan ultra-low profile for all types of TVs, including LED, LCD and Plasma
- Extends up to 25" (635 mm) Full extension maximizes viewing potential
- Centris™ low-profile tilt Provides up to 15° of effortless fingertip tilt toachieve optimal viewing angles
- Centerless™ Lateral Shift Post-installation lateral shift allows up to 16"(406 mm) of adjustment for limitless centering capability
- Integrated Cable Management Enclosed, tool-free cable covers and a wideopen wall plate make it easy to route power and signal cables, and connect to the wall for a seamless installation
- Post Installation Height Adjustment A total of 1" (25mm) of post installation height adjustment allows for perfect screen placement and alignment
Specifications :
General Information
Manufacturer | Legrand Group |
---|---|
Manufacturer Part Number | TS525TU |
Manufacturer Website Address | http://www.legrand.us |
Brand Name | Chief |
Product Line | Thinstall |
Product Model | TS525TU |
Product Name | Thinstall TS525TU Swing Arm Wall Mount |
Product Type | Wall Mount |
UPC | 841872147307 |
Product Color | Black |
---|---|
Height | 20.7" |
Width | 32.3" |
Depth | 1.5" |
Package Contents |
|
---|---|
Features | Tilt |
Limited Warranty | 10 Year |
---|
