BLACK BOX

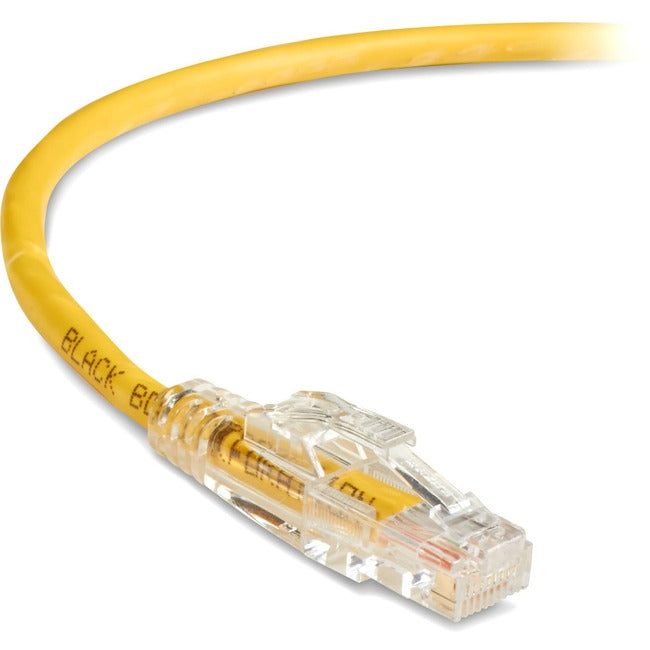

Cat5E 100-Mhz Locking Snagless Stranded Ethernet Patch Cable-Shielded(F/Utp), Cm Bbx-C5Epc70S-Yl-05

Cat5E 100-Mhz Locking Snagless Stranded Ethernet Patch Cable-Shielded(F/Utp), Cm Bbx-C5Epc70S-Yl-05

SKU:BBX-C5EPC70S-YL-05

Regular price $5.07
Regular price Sale price $5.07
Sale Sold out
Shipping calculated at checkout.
          View full details
          Description
          Reviews, Que. & Ans.

          Description :

          Black Box GigaBase 3 Cat.5e (F/UTP) Patch Network Cable

          Premium Performance

          Black Box GigaBase 3 Premium CAT5e Shielded Patch Cables feature a secure, lockable design. They exceed ANSI/TIA industry standards and protect against EMI/RFI interference that can distort or destroy your data. Tested to 100-MHz and 1-Gbps performance, these cables ensure the transmission of your voice, data, audio/video, and PoE signals. A robust four-pair 24-AWG construction features 50-micron gold-plated contacts for superior conductivity.

          These cables have connectors designed for an insertion and extraction life of 750 cycles, making for an ultra-reliable solution that you can count on to perform. The rugged, hard-polymer LockPORT boot and plug are integrated to provide increased strength in comparison to standard connectors.

          Locking Options Available

          These cables allow you to lock down critical network ports when required - without buying new patch cords. Secure your network ports by inserting a locking pin (sold separately) into the built-in locking tab on the patented snagless boot. To unplug the cable, release it with the removal key (sold separately).

          Locked: Red Pin Prevent unauthorized access to mission-critical and publicly accessible ports in government offices, lobbies, retail establishments, and more. To lock a port, insert the red locking pin into the patented LockPORT boot on the cable. Unlock the port with the LockPORT Locking Pin Removal Tool.

          Secured: Green Pin Prevent accidental disconnects in the office, manufacturing and industrial applications, and more. To secure a port, insert the green locking pin into the cable's LockPORT boot. To release the pin, squeeze its butterfly tabs and pull - no removal tool required.


          • Ideal for 1000BASE-T, 100BASE-TX, 10BASE-T and other high-speed applications

          • Snagless boots prevent connector damage due to snags during installation

          • Offers superior near-end crosstalk (NEXT) compared to standard CAT6 cable

          • Connector designed for an insertion and extraction life of 750 cycles

          • Cabling ETL verified to ANSI/TIA-568-C2

          • 50-micron gold-plated contacts provide superior conductivity

          • Tested to meet or exceed CAT5e industry standard of 100 MHz

          • Shielded CAT5e cable protects against EMI/RFI interference

          • Choose between two levels of lockability or use as a standard snagless connector

          Product Type: Network Cable
          Environmentally Friendly: Yes
          Environmental Certification: RoHS
          Jacket Material: Polyvinyl Chloride (PVC)
          Product Color: Yellow
          Brand Name: Black Box
          Manufacturer: Black Box Corporation
          Product Name: GigaBase 3 Cat.5e (F/UTP) Patch Network Cable
          Product Line: GigaBase 3
          Manufacturer Part Number: C5EPC70S-YL-05
          Manufacturer Website Address: http://www.blackbox.com
          Limited Warranty: Lifetime
