Alta Pressure Meter 50Psig Aa,Batt Powered 900Mhz

SKU: MNS2-9-W2-PS-050

Regular price $368.53
Regular price Sale price $368.53
Sale Sold out
Shipping calculated at checkout.
          Que. & Ans.

          Description :

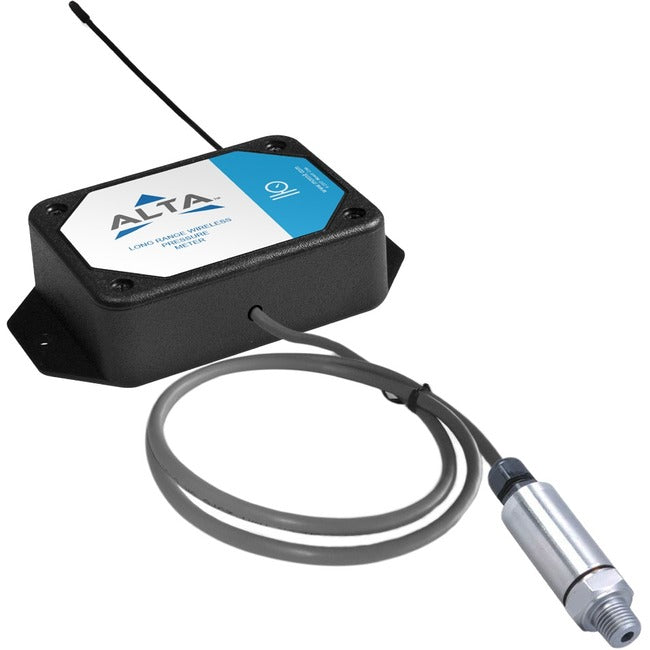

          Monnit ALTA Wireless Pressure Meters - 50 PSIG - Commercial AA Battery Powered

          Monnit wireless pressure meters measure pressure from a 5 volt pressure transducer and transmits the pressure measurement to iMonnit. By connecting the Monnit wireless pressure sensor to a pressurized gas, liquid or vapor supply line, it can measure the pressure within the line and send data to the iMonnit Online Sensor Monitoring and Notification System. The data is stored in the online system and can be reviewed and exported as a data sheet or graph. User customization allows you to set notifications and alerts from the system so you can know immediately if pressure is above or below an optimal range.

          ALTA - Leading Enterprise Grade "Internet of Things" Solutions

          ALTA sensors offer 3 to 4 times the range of standard sensor platforms, extending non-line-of-sight reach to an exceptional 1,000+ feet through walls (12-14 walls typical). Using Frequency-hopping Spread Spectrum (FHSS) also allows ALTA sensors to have better interference immunity from other wireless devices.

          Superior power management provides ALTA sensors with almost twice the battery life of Monnit's standard wireless sensors.

          • Coin cell sensors typically last 3+ years.
          • AA and Industrial sensors typically last up to 10+ years.

          ALTA products employ Monnit's new Encrypt-RF™ Security (256-bit Diffie Hellman key exchange and AES-128 CBC encryption for all sensor data messages), so security is maintained at all communication points from sensor to gateway, gateway to software, then back again.

          Integrated on-board data storage allows ALTA sensors to store data messages if communication to a wireless gateway is disrupted (power outage, Internet outage, or out of range). Messages that can't be delivered will be time-stamped and stored in memory (up to the last 512 messages) until communication with the gateway is restored, at which point the messages will all be transmitted.

          Over-the-air updates allow ALTA products to be updated remotely if new fixes or features become available.

          The standard version of this sensor is powered by two replaceable 1.5 V AA sized batteries (included with purchase). This sensor is also available with a line power option. The line powered version of this sensor has a barrel power connector allowing it to be powered by a standard 3.0 - 3.8 V power supply (Included with Line Power option upgrade). The line powered version also uses two standard 1.5 V AA batteries as backup for uninterrupted operation in the event of line power outage.

          Power options must be selected at time of purchase, as the internal hardware of the sensor must be changed to support the selected power requirements.

          Product Features

          • Works with Gas, Liquid or Vapor.
          • No External Power Required.
          • Measures pressure from 0-50 PSIG.

          Product Type: Wireless Pressure Meter
          Product Material: ABS
          Country Of Origin: United States
          Brand Name: Monnit
          Manufacturer: Monnit Corporation
          Product Name: ALTA Wireless Pressure Meters - 50 PSIG - Commercial AA Battery Powered
          Product Line: ALTA
          Application/Usage: Trash Compaction Equipment
          Manufacturer Part Number: MNS2-9-W2-PS-050
          Manufacturer Website Address:
          Package Contents:

          • ALTA Wireless Pressure Meters - 50 PSIG - Commercial AA Battery Powered
          • Mounting Hardware
          • 2 x AA Batteries
