45Ru 4Postrack Adjdepth23 -42,Threaded Rails Black

Description :

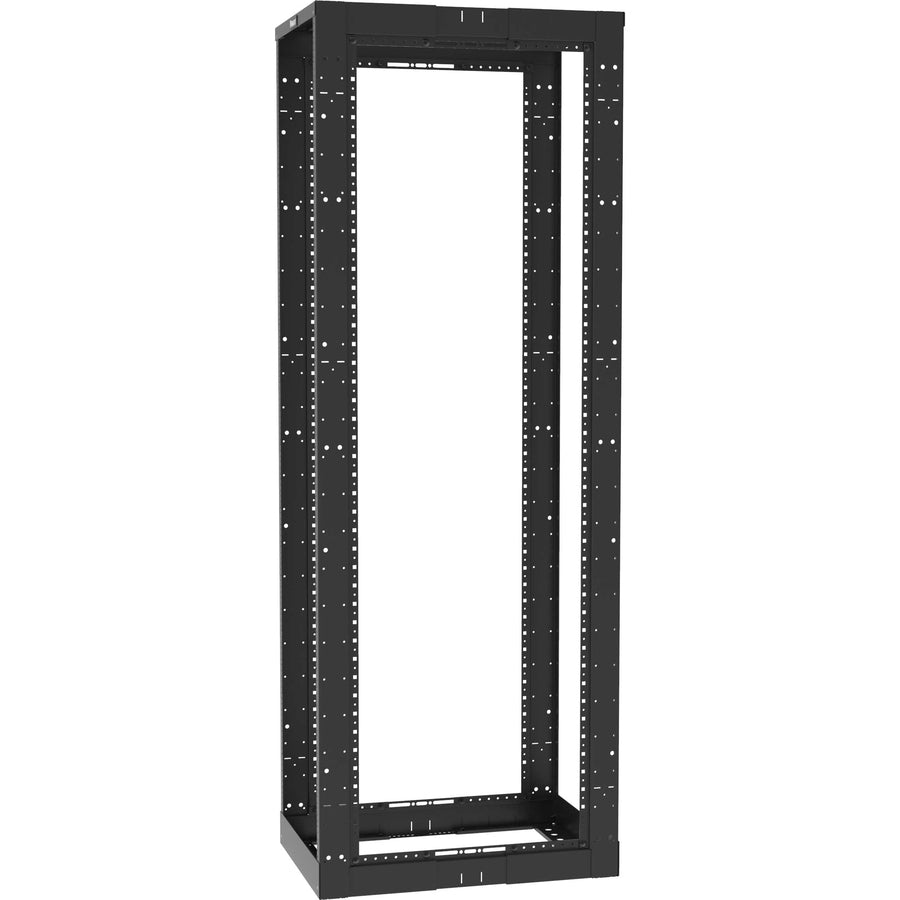

Panduit Four Post Rack

The Adjustable Depth 4-Post Rack supports equipment mounting depths from 23" to 42" in 0.5" increments to provide greater flexibility with a single part number. The front and rear structural posts of the rack are capable of mounting all PanduitTM Vertical Cable Managers and various accessories such as power distribution unit brackets, waterfalls and vertical tie-off panels. The rack has #12-24 threaded rails and is 45RU in height. The rack is black in color.

• Integrated masked grounding locations Eight masked grounding locations available for optimal lug connection position


• Multiple options for mounting accessories Accessories such as PDU brackets, vertical tie-off brackets, waterfalls mount on posts or front-to-back braces for greater application flexibility


• PEM stud and carriage bolt construction Eliminates the need for a second wrench, increasing speed and ease of assembly


• Fully bonded structure Paint piercing hardware electrically bonds the rack when assembled, eliminating the need for additional bonding components


• Numerical rack unit identification Allows for quick location of rack spaces speeding installation of rack mount items, racks are numbered from bottom up


• Color options Available in Black and White


• Inward facing feet Reduces overall front-to-back footprint, aligning better to floor tiles


• Self-squaring Front-to-back braces are installed in two axes, helping to maintain squareness of the rack during assembly


• Welded steel construction UL listed, 2000 lbs. load capacity provides greater stability


• Adjustable depth Supports equipment mounting depths from 23" to 42" in 0.5" increments to provide greater flexibility with a single part number

Product Type: Rack Frame
Static/Stationary Weight Capacity: 2000.03 lb
Product Color: Black Powder Coat
Product Material: Steel
Assembly Required: Yes
Rack Width: 19"
Rack Height: 45U
Brand Name: Panduit
Manufacturer: PANDUIT CORP
Product Name: Four Post Rack
Manufacturer Part Number: AR4P
Manufacturer Website Address: http://www.panduit.com
Packaged Quantity: 1
Package Contents:

• Four Post Rack
• Adjustable Depth Mount Brackets
• Hardware Kit
