100 Base-Tx 100Base-Fx Ethernet,Iconverter Fiber St Sm 1310Nm 30Km

Description :

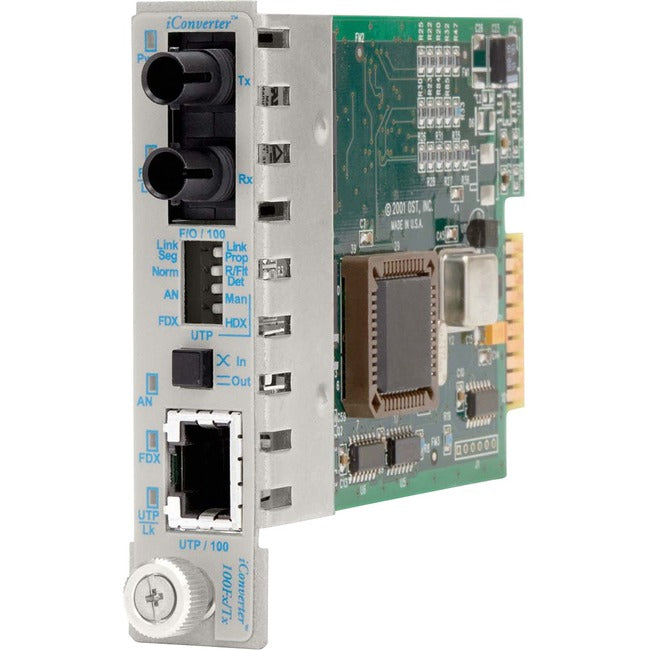

iConverter 100Mbps Ethernet Fiber Media Converter RJ45 ST Single-Mode 30km Module
The iConverter 100Fx/Tx manageable media converter is a member of the modular iConverter product family. It provides 100Base-Tx UTP to 100Base-Fx Fiber conversion. This iConverter 100Fx/Tx is available single-mode. It support ST connector. The UTP port supports 100Base-Tx in either half or full duplex mode. A UTP crossover switch eliminates the need for a crossover cable and facilitates connectivity to network equipment such as hubs, switches and workstations.

• UTP port supports Full or Half-Duplex 100Mbps Ethernet


• UTP crossover switch eliminates the need for a crossover cable


• User-selectable link fault detection modes facilitate quick fault detection, isolation and reporting


• Management is available with the addition of a management module to the chassis


• Modules are hot-swappable in 19-Module, 5-Module, 2-Module or 1-Module chassis


• LED displays for immediate visual status of each port


• Lifetime Warranty and free 24/7 Technical Support

• Attach multiple devices together or expand the number of devices connected to your existing network by using 2 transceiver/media converter


• Supports twisted pair cables for durability and improved signal transfer while ensuring smooth and seamless data transfer


• With 100Base-TX technology get up to 100Mbps data transfer rate over twisted pair cable


• The Rail-mountable provides convenient installation

Product Type: Transceiver/Media Converter
Environmentally Friendly: Yes
Environmental Certification: WEEE
Country Of Origin: United States
Product Series: 100Fx/Tx
Brand Name: Omnitron Systems
Form Factor: Wall Mountable
Manufacturer: Omnitron Systems
Product Model: 8361-1-x
Product Name: iConverter 100Fx/Tx ST Single-Mode 30km Plug-In Module
Package Type: Retail
Product Line: iConverter
Manufacturer Part Number: 8361-1
Manufacturer Website Address: http://www.omnitron-systems.com
Package Contents:

• iConverter 100Fx/Tx ST Single-Mode 30km Plug-In Module


• User Manual
